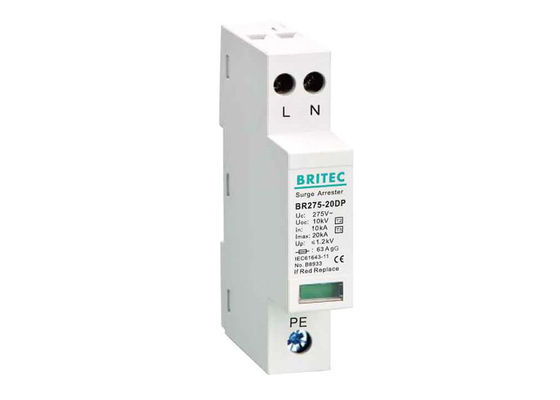

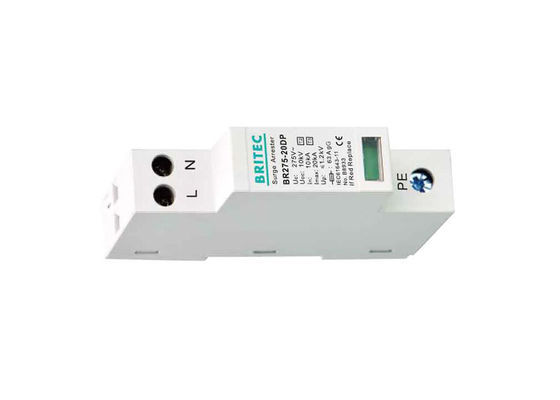

IEC 61643-11 Class D 20kA Surge Protective Device Type 3 Spd 10kV

IEC 61643-11 Class D 20kA Surge Protective Device Type 3 Spd 10kV

IEC 61643-11 Class D 20kA Surge Protective Device Type 3 Spd 10kV
IEC 61643-11 Class D 20kA Surge Protective Device Type 3 Spd 10kV
IEC 61643-11 Class D 20kA Surge Protective Device Type 3 Spd 10kV
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-20DP 2P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Material: Thermal Plastic UL94-V0
Un: 24V / 60V / 120V / 230V In: 10kA
Imax: 20kA Uoc: 10kV
Mounting On: 35mm Din Rail Type: Class D
Color: White Warranty: 2years
High Light:

20kA Surge Protective Device Type 3

,

IEC 61643-11 type 3 spd

,

20kA type 3 spd



Class D 20kA Power Supply Protection Low Voltage Surge Protector Lightning Protection Device


Class D 20kA Power Supply Protection Product Description:

Electric ratings: 230/400 V, AC 50/60 Hz, 3-phase
Available with and without remote signalling contacts.
Standard: IEC/EN 61643-1


Class D 20kA Power Supply Protection Product Details:



   BR30-20DP   BR75-20DP   BR150-20DP   BR275-20DP
SPD classification according to EN61643-11 Type 3 Type 3 Type 3 Type 3
SPD classification according to IEC61643-11   Class III Class III Class III Class III
Nominal a.c. voltage                                     Un 24V 60V 120V 230V
Max. continuous operating a.c. voltage         Uc 30V 75V 150V 275V
Max. continuous operating d.c. voltage        Uc 38V 100V 190V 300V
Nominal discharge current (8/20us)               In 10kA 10kA 10kA 10kA
Combined impulse                                      Uoc 10kV 10kV 10kV 10kV
Voltage protection level                                Up ≤300V ≤600V ≤800V ≤1200V
Response time                                                    tA ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                        Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication green / red green / red green / red green / red
Cross-section area (Min.) 2.5mm2 2.5mm2 2.5mm2 2.5mm2
Cross-section area (Max.) 16mm2 16mm2 16mm2 16mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20
Order Code B8245 B8343 B8341 B8339
Order Code (With remote signaling) B8246 B8344 B8342 B8340


Dimension:

IEC 61643-11 Class D 20kA Surge Protective Device Type 3 Spd 10kV 0


Class D 20kA Power Supply Protection Application:

Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
BR-20DP series surge protective devices are suitable for D grade surge protection, used at the equipotential connection of LPZ2 and LPZ3 zone, which protects the electric network not shocked by the thunder.


Class D 20kA Power Supply Protection Advantage:



• Single module device saving you space.
• High nominal current.
• Advanced production process and beautiful appearance.
• With the power status indication, indicating the working state of surge protector.



Our Company:


Wenzhou Britec Electric Co.,Ltd is located in Yueqing City, Zhejiang Province, China. Our factory is the specialized manufacturer of SPDs including AC surge arrester, DC surge protector, data surge protective device, LED lightning protection, etc. We export lightning arrester to South America, Middle East, Africa, Europe, and other areas.



IEC 61643-11 Class D 20kA Surge Protective Device Type 3 Spd 10kV 1



Workshop:



IEC 61643-11 Class D 20kA Surge Protective Device Type 3 Spd 10kV 2



Our certifications:



IEC 61643-11 Class D 20kA Surge Protective Device Type 3 Spd 10kV 3



FAQ:



Q1. Are you a manufacturer or a trading company?
  A: We are the direct factory manufacturer.



Q2. Where is your company located?
  A: Our factory is located in Yueqing City, Zhejiang Province, China(mainland).



Q3. What are your main products?
  A: Our main products are AC lightning protector, PV(solar) surge arrester, data SPDs, LED surge protection device, etc.



Q4. What's your nearest port?
  A: Ningbo / Shanghai Port.



Q5. What's your payment term?
  A: Normally 30% deposit and rest by TT before shipping.
