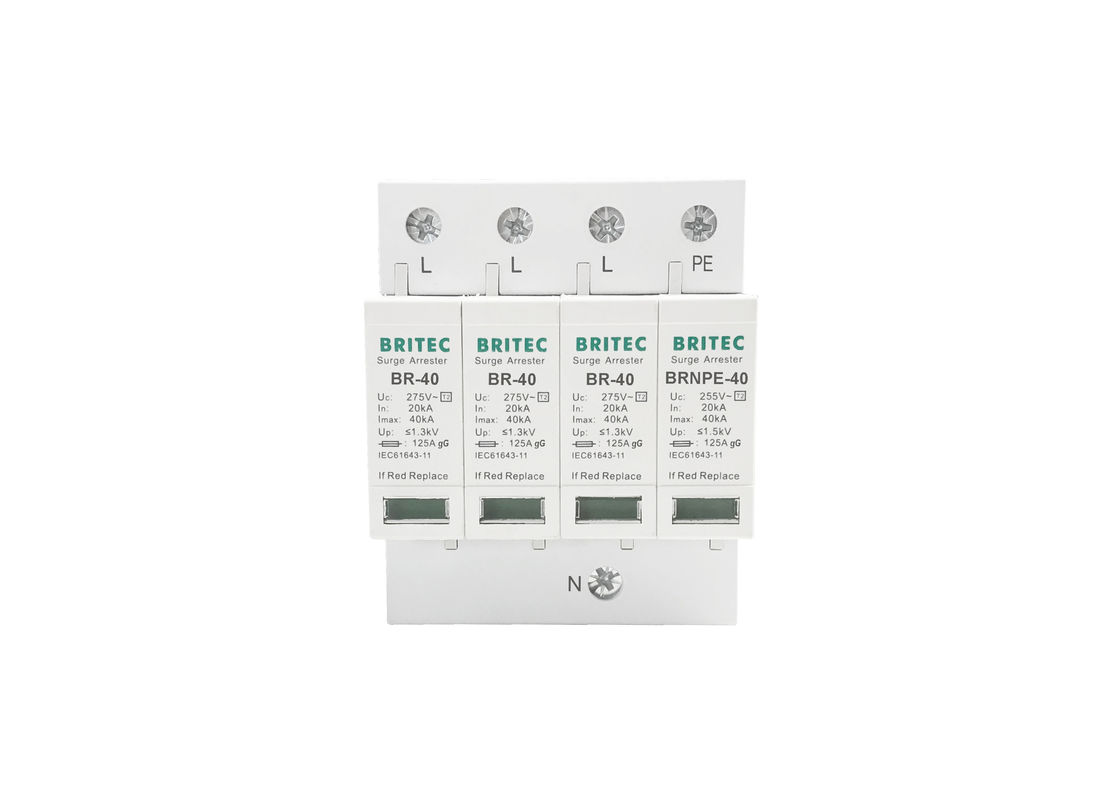

Name: 40kA 275V 255V 100Arms Industrial DIN Rail 3 Phase Type 2 SPD
Brand: BRITEC
SKU: BR-40 3P+NPE
Price: 1 USD
Availability: InStock
Rating: 4.7 (173 reviews)

Home Products Type 2 Surge Protection Device

40kA 275V 255V 100Arms Industrial DIN Rail 3 Phase Type 2 SPD

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-40 3P+NPE

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Product Name:	Surge Protection Device	Operating Frequency:	50/60Hz
Uc:	150V / 275V / 320V / 385V / 440V	Uc(NPE):	255V
In:	20kA	Imax:	40kA
OEM/ODM:	Yes	TA:	≤25ns/≤100ns
Tu:	-40℃...+80℃	Mounting Support:	35mm Din Rail
High Light:	100Arms Type 2 SPD , 255V Type 2 SPD , 100Arms 3 phase spd

3 phase Industrial 40kA 275 V Surge Protection Device (SPD) DIN Rail Mount Britec

3 phase Industrial 40kA 275 V Surge Protection Device (SPD) Product Details:

• Britec BR-40 Series.

• The core parts are metal oxide varistor components with high discharge capacity.

• Class II

• Low residual voltage and quick response

• These surge protection devices are recommended for locations having a high exposure to lightning, for example, light entrances to buildings protected by lightning rods or powered by aerial lines.

• Reliable control thanks to Thermo Dynamic Control disconnector

• Up to 40kA class II protection

• Protection mode: L1, L2, L3-N, N-PE.

• These products are installed at the entrance of the installation (such as the main distribution board).

• Visual Indication of fault

• Simple DIN rail mounting

• Volt-free contacts for remote indication

• IP20 Protection

• 2-5 years no-quibble warranty

• Operating temperature range: -40°C → +80°C

3 phase Industrial 40kA 275 V Surge Protection Device (SPD) Product Details:

	BR150 40 3P+NPE	BR275 40 3P+NPE	BR320 40 3P+NPE	BR385 40 3P+NPE	BR440 40 3P+NPE
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Max. continuous operating a.c. voltage[N -PE] Uc	255V	255V	255V	255V	255V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Voltage protection level [N-PE] Up	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV
Follow current extinguishing capability[ N-PE]a.c.Ifi	100Arms	100Arms	100Arms	100Arms	100Arms
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Response time [N-PE] tA	≤100ns	≤100ns	≤100ns	≤100ns	≤100ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20
Order Code	B8451	B8453	B8455	B8457	B8249
Order Code (With remote signaling)	B8452	B8454	B8456	B8458	B8250

Dimension:

40kA 275V 255V 100Arms Industrial DIN Rail 3 Phase Type 2 SPD 0

3 phase Industrial 40kA 275 V Surge Protection Device (SPD) Product Description:

• AC SPD - Britec Make

• Fault indication via red mark in the inspection window.

• Class II / Type 2 surge arresters.

• Compact DIN rail mount for easy install in the field

• Consisting of a base part and3 MOV + 1GDT plug-in protection modules.

• 3 Phase – BR-40 3+1 Compact

• For using in the lightning protection zones concept at boundary 1-2.

• All IEC certificates available.

• With remote signaling contact for control device.

3 phase Industrial 40kA 275 V Surge Protection Device (SPD) Application:

• BR-40 3+1 surge arrester are suitable for lightning and surge protection in AC 50/60Hz, 220/380V.

• Used in AC power line of house, bank, telecom tower and so on.

Structure and Principle:

• SPD is a port, shocking protection, and indoor-mounted installation, voltage-limited.

• SPD hold disconnector inside, when SPD breakdown failure by overheating, the disconnector can remove from the power grid automatically, and show indication signal.

• When SPD is working properly, visible window display green, it display red when it breakdown and disconnect.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Packaging & Shipping:

PACKING: Products are packed by carton.Customers will receive the goods with strong and tough packing.

SHIPPING: We can help you to arrange the shipment. International Shipping is Available for Customers, such as by sea, by air and by express. Or you can choose your agent to send the goods to you.

Company Information:

Wenzhou Britec Electric Co., Ltd. founded in 2003, has been committed to the field of lightning protection, the company is located in Yueqing, Zhejiang. The company is committed to the development and application of lightning protection. The company has gathered a group of experienced industry elites and marketing management personnel. They have accumulated more than ten years of industry experience, mastered exquisite product development technology and practical application experience, and can provide targeted scientific industry solutions.

40kA 275V 255V 100Arms Industrial DIN Rail 3 Phase Type 2 SPD 2

Certificate:

40kA 275V 255V 100Arms Industrial DIN Rail 3 Phase Type 2 SPD 3

FAQ:

Q1: Are you a trading company or factory?

A: Britec is a factory located in Yueqing city, Zhejiang province, China. We supply high quality SPD with factory price, and owns export rights.

Q2: What product do you manufacture?

A: We manufacture all kinds of low voltage surge protection device (SPD).

Q3: What is the payment term?

A: We accept T/T, Paypal, L/C and so on.

Q4: Do you arrange for shipment to buyer’s country?

A: Yes ,we will arrange for shipment to any place, but all freight and custom declare fee belongs to buyers side. We accept Ex-works in factory, FOB Ningbo/Shanghai port, etc.

Q5: What is the delivery time?

A: It takes about 20 working days usually after receipt of your deposit. If we have some stock, we can give you goods in a short time after confirming your payment. Please feel free to contact us.

Q6: What is your warranty?

A: Two years.

Q7: Can I use my LOGO ON THE PRODUCTS?

A: Yes, we accept OEM orders. Please contact us for more details.

Q8: Can I CUSTOMIZE THE PRODUCTS?

A: Yes, you can. Please contact us for the customization products.

Q9: What is the cost of SHIPPING?

A: Shipping cost is based on the following elements: Number of packages; Gross Weight; Package volume; Destination port.
