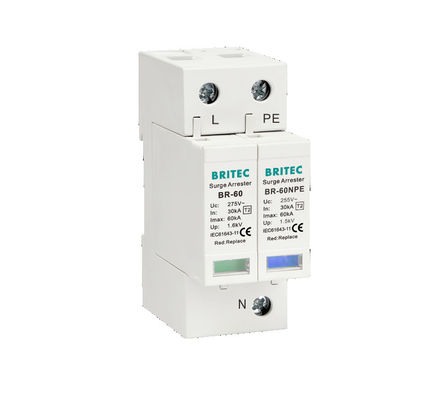

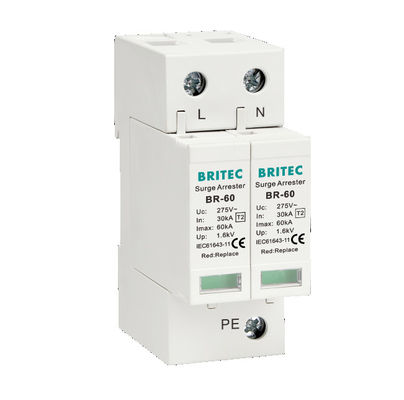

BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester

BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester

  • BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester
  • BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester
  • BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester
  • BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester
BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BR-60 2P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: BR-60 2P Model Numbers: BR-60 2P
EN Type: Type2 Shipping Term: TNT DHL FEDEX EMS UPS
Warranty: 5 Year Standard: IEC Standard
Product Structure: Plug Type: T2
Protection Grade: IP20
Highlight:

Type 2 Surge Protection Lightning Arrester

,

IEC Standard Type 2 Surge Arrester

,

BR-60 2P Type 2 Surge Arrester

 275V surge voltage protector tvss spd Type 2 surge arrester



Type 2 surge protectors are designed to be installed at the entrance of the installation, in the main switchboard, or close to sensitive terminals, on installations without LPS (lightning rods). These protectors are tested following the Class Ill test from IEC6 1643-11 or EN6 1643-11 standards and based on 8/20 us impulse current



Type 2 surge arrester  Technology characteristic:

BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester 0BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester 1


Type 2 surge arrester  Dimension:



BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester 2



Specification
TY-20 275 2P
TY-40 275 2P
TY-60 275 2P
Item name
Surge Arrester
Surge Arrester
Surge Arrester
SPD dassification according to EN61643-11
Type 2
Type 2
Type 2
SPD dassification according to IEC61643-11
Class II
Class II
Class II
Max continuous 0perating a.c. voltage Uc
275V
275V
275V
Norminal discharge current (8/20µs) In
10kA
20kA
30kA
Max. discharge current (8/20μs) Imax
20kA
40kA
60kA
Voltage protection level Up
≤1.3kV
≤1.3kV
≤1.6kV
Width of one pole
18mm
18mm
18mm
Remote contacts
Available
Available
Available
For mounting on
35mm Din rail
35mm Din rail
35mm Din rail
Degree of protection
IP20
IP20
IP20
Enclosure material
Thermoplastic UL94-V0
Thermoplastic UL94-V0
Thermoplastic UL94-V0
Certificate
CE/ROHS/ISO9001 approved standard
CE/ROHS/ISO9001 approved standard
CE/ROHS/ISO9001 approved standard



Other type for choose:
1,Maximum discharge current:10KA,20KA,40KA,65KA,80KA,100KA,120KA
2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V





Type 2 AC Surge Protector

In: 30 kA

Imax: 60 kA

Pluggable module for each phase

Remote signaling (option )

IEC 61643-11, EN 61643-11 certified



Type 2 surge arrester Application:

Application from 1 to 4 poles

Protection against surge and overvoltage spikes

Good protection level

High discharge capacity


Type 2 surge arrester Certificate:


CB, CE, TUV,RoHS Certificate:


BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester 3

Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.

BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester 4

Production line:

BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester 5
BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester 6

Laboratory equipment:

BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester 7



Shipping:

BR-60 2P Type 2 Surge Protection Device Lightning Arrester 60ka lightning surge protectors tuv ac surge arrester 8

FAQ:

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.



Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.



Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.



Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.



Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
