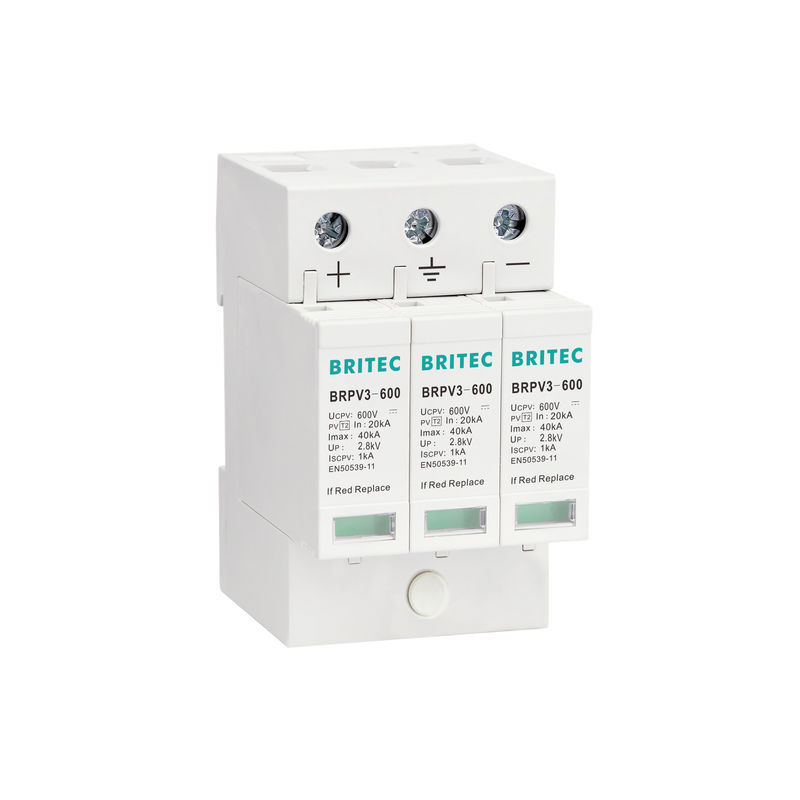

BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd lightning protection

BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd lightning protection

  • BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection
  • BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection
  • BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection
  • BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection
BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV3-600
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-20 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: EN50539-11 Classification: Type 2
Operating State / Fault Indication: Green / Red Up: ≤2.8kV
Shipping Term: TNT DHL FEDEX EMS OEM/ODM: Yes
Ucpv: 600V Dc Delivery Time: 5-15 Days After Confirming Order
Installation: Din Rail 35mm
Highlight:

EN50539-11 600v surge protector

,

photovoltaic 600v surge protector

,

600v type 2 surge protector

 DC 600v surge protector surge protective device SPD photovoltaic power supply system

DC 600V surge protector Feature:

SPDs are particularly important to protect sensitive electrical equipment like AC/DC Inverter, monitoring devices and PV modules, but also other sensitive equipment powered by the 230 VAC electrical distribution network.



• Type 2 surge protector for photovoltaic.
• Max. continuous operating dc voltage:600V DC.
• EN61643-31 and EN50539-11 compliance.


DC 600V surge protector Product Details:

BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection 0


   BRPV3 600
SPD classification according to EN61643-31 Type 2
SPD classification according to EN50539-11 Class II
Max. continuous operating dc voltage                            Ucpv 600V
Nominal discharge current (8/20us)                                    In 20kA
Max. discharge current (8/20us)                                     Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                         Up ≤2.8kV
Response time                                                                             tA ≤25ns
Operating temperature range                                             Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                Thermoplastic UL94-V0
Degree of protection IP20


DC 600V surge protector Dimension:

BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection 1

DC 600V surge protector Application:

• For use in photovoltaic power supply systems up to 600 V d.c.
• Protect against lightning surge voltages in photovoltaic power supply network.
• Protect sensitive electronic equipment from destructive transient over voltages originating from lightning strikes and electrical disturbances.
• Utilized in protecting photovoltaic systems. It is specially engineered to serve as a security device against both direct and indirect lightning discharges.


DC 600V surge protector Advantage:

• Improved life expectancy.
• Optical status indicator via LED.
• Space-saving enclosure with a width of only four modules for up to 600 V d.c.
• Operating state / fault indication by green / red indicator flag in the inspection window.


Our Services:


• 20 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.


Why need surge arrester?


Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility. The use of adapted surge protections is then highly recommended.


Installation instruction:


• Mount the SPD on 35 mm DIN rail.
• The SPD is placed in parallel between the energized conductors and ground.
• The selected SPD must be specifically designed, rated and approved for application on dc PV voltages.


Company profile:

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!

BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection 2

BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection 3

Our certificate:

We got CB, CE, TUV,RoHS Certificate:

BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection 4

Payment:

   Payment Term    T/T       EXW          30% T/T in advance, paid the balance before shipment.
FOB
CIF    30% T/T in advance, paid the balance against copy of B/L.
L/C    L/C amount above 50,000 usd, we can accept L/C at sight.
   Paypal       Amount lower than 5000usd.
Delivery Time    15-30 days after receiving deposit.


BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection 5

Factory:

BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection 6

BRPV3-600 Photovoltaic 600v DC Surge Protection Device solar spd  lightning protection 7

FAQ:

Q1: How long is your products warranty?
  A: The warranty period of our products is 2 Years.

Q2: How about inspection?
  A: We have the whole inspection system from raw material to end products.

Q3: What is the service offered by company?
  A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
