Thermoplastic UL94-V0 PV Surge Arrester Type 1+2 Lightning Protection Device

Certification
China Britec Electric Co., Ltd. certification
China Britec Electric Co., Ltd. certification
I'm Online Chat Now

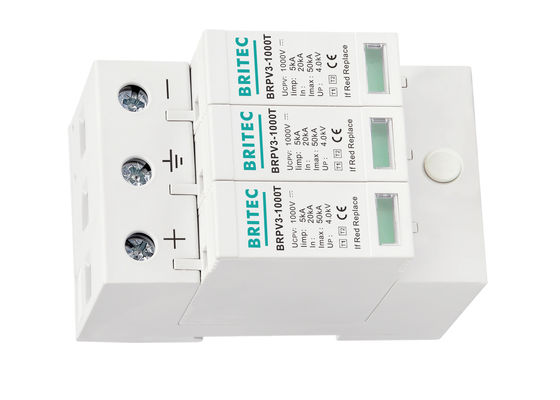

Thermoplastic UL94-V0 PV Surge Arrester Type 1+2 Lightning Protection Device

Thermoplastic UL94-V0 PV Surge Arrester Type 1+2 Lightning Protection Device
Thermoplastic UL94-V0 PV Surge Arrester Type 1+2 Lightning Protection Device Thermoplastic UL94-V0 PV Surge Arrester Type 1+2 Lightning Protection Device

Large Image :  Thermoplastic UL94-V0 PV Surge Arrester Type 1+2 Lightning Protection Device

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV3-1000-6.25
Document: BRPV3-1000-6.25.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 100000 pieces per month

Thermoplastic UL94-V0 PV Surge Arrester Type 1+2 Lightning Protection Device

Description
Tu: -40℃…+80℃ Material: Thermoplastic UL94-V0
Ucpv: 1000V Iimp: 6.25kA
In: 20kA Imax: 40kA
TA: ≤25ns Class: Type 1+2
Type: PV (solar) Item: PV Surge Arrester
Highlight:

dc surge arrester

,

dc surge suppressor

Thermalplastic PV Surge Arrester UL94 - V0 Type 1+2 Lightning Protection
Product Specifications
BRPV3-1000-6.25
SPD classification according to EN61643-31 Type 1+2
SPD classification according to IEC61643-31 Class I & II
Max. continuous operating d.c. voltage UcPV 1000V
Impulse Current by pole Iimp 6.25kA
Nominal discharge current (8/20μs) In 20kA
Max. discharge current (8/20μs) Imax 40kA
Voltage protection level Up 4.0kV
Residual Current Ipe(DC) <0.02mA
Response time tA 25ns
Operating temperature range Tu -40℃~80℃
Operating state/fault indication Green/Red
For mounting on 35mm Din Rail
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermoplastic UL94-V0
Degree of Protection IP20
Technology Characteristics
Thermalplastic PV Surge Arrester technology diagram
Manufacturing Capabilities

Britec owns advanced test equipment and product lines, perfect management systems, professional technical personnel, and well-trained workers. Our team continuously develops new products for our customers, ensuring our technical level reaches leading industry standards. We also provide OEM/ODM services.

Britec manufacturing workshop and production facilities
Company Profile

Wenzhou Britec Electric Co., Ltd. was established in 2003 and is a professional surge protective devices (SPD) manufacturer with many years of experience. We provide quality products, competitive pricing, prompt delivery, and excellent service, and look forward to greater cooperation with overseas trade partners based on mutual benefits.

Wenzhou Britec Electric Company facilities
Global Presence

Britec has a strong sales team, and our surge protection devices are sold to many countries worldwide. Europe and Asia are our main markets. We are committed to cooperating with global customers and helping them succeed in their markets.

Certifications & Quality

Britec offers a full range of SPD products with CE, RoHS, TUV, SEMKO, and CB certifications. The company implements ISO9001 quality management systems.

Britec product certifications and quality standards
Product Applications

Britec has developed a wide range of products covering requirements in low voltage lightning protection, including SPD for power systems, PV systems, and data systems. These products are widely applied in electronic systems, computer networks, security systems, and protection for power industry, petroleum chemical industry, and national defense industry.

Surge protection device applications in various industries
Frequently Asked Questions
Q1. How can I place an order?
You can contact us by email with your order details.
Q2. How can I pay you?
After you confirm our Proforma Invoice, we will request payment. T/T (Telegraphic Transfer) is the most common payment method we use.
Q3. What is the packaging for the product?
We use export standard packaging, but can also accommodate specific customer requirements.
Q4. What is your sample policy?
We can supply samples if we have ready parts in stock, but customers must pay for the sample cost and express shipping.
Q5. Can you produce according to provided samples?
Yes, we can produce based on your samples or technical drawings.
