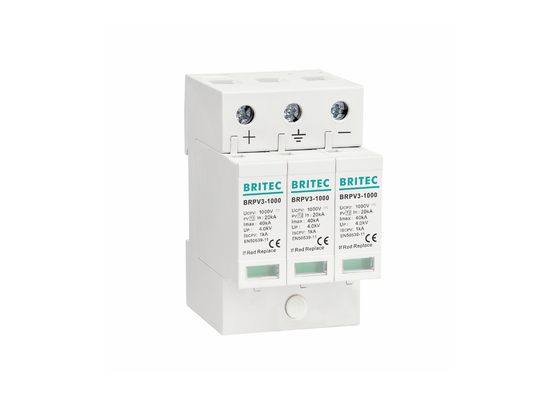

1000V Class II DC Lightning Arrester Solar PV Surge Arrester

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRPV3-1000

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Product Name:	Solar Energy Surge Lightning SPD	Test Standards:	EN61643-11 / EN50539-11
Ucpv:	1000V	In:	20kA
Imax:	40kA	Material:	Thermal Plastic UL94-V0
TA:	≤25ns	Mounting On:	35mm Din Rail
Up:	≤4.0kV	Tu:	-40℃...+80℃
High Light:	1000V PV Surge Arrester , Lightning PV Surge Arrester , 1000V class ii surge arrester

1000V Class II Power DC Lightning Arrester SPD Type 2 Solar PV Surge Protection

1000V Class II Power DC Lightning Arrester SPD Description:

• BRPV series PV Surge Protective Device 40KA DC 1000V SPD suitable for the new energy wind power generation system, its working voltage covers 600V, 1000Vand 1500V.

• BRPV3-1000 type 2 solar PV surge arresters/SPD is designed to protect DC powered equipment against lightning surge voltages in photovoltaic power supply network, such as inverters, combiner boxes and charge controllers.

• The protection flow is large, the residual pressure is very low, and the response time is fast.

• It utilizes high energy metal oxide varistors/MOV

• Photovoltaic DC surge protector is a lightning protection product designed for the solar photovoltaic system based on the relevant standards.

• With the power status indication, it indicates the working state of surge protector.

• It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.

• It has high lightning discharge capability, and the maximum discharge current of each module reaches 40KA.

1000V Class II Power DC Lightning Arrester SPD Product Details:

	BRPV3 1000
SPD classification according to EN61643-11	Type 2
SPD classification according to EN50539-11	Class II
Max. continuous operating dc voltage Ucpv	1000V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤4.0kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
Order Code	B8010
Order code(With remote signal)	B8012

Technology characteristic:

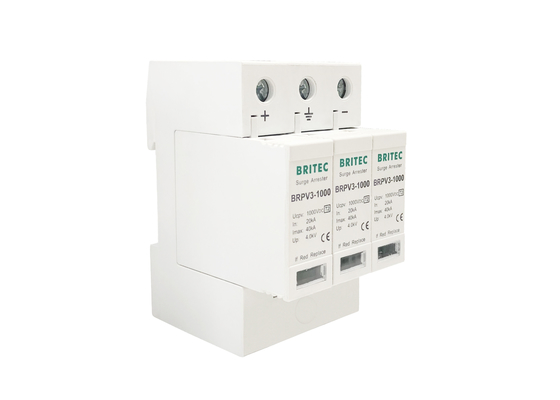

1000V Class II DC Lightning Arrester Solar PV Surge Arrester 0

1000V Class II Power DC Lightning Arrester SPD Features:

• Module design, convenient installation, with easy electric maintains operation.

• Type 2 surge protector for photovoltaic system

• The lightning protector uses the multilevel protection circuit, selects the brand components and uses the advanced production technology.

• Imax - 40kA/pole (8/20 waveform)

• Ucpv - 1000V DC

• Up -4.0kV

• Built-in over current and over heat, temperature control open circuit technology

• High energy anti-surge components MOV

• Adopt independent intelligence property right and high performance sensitivity resistance plates

• Failure status indicator, green/red

• Small creepage current, fast response time, remnant low voltage.

• DIN rail mounting, pluggable module, convenient replacement

• With remote connection, can realize remote control.

1000V Class II Power DC Lightning Arrester SPD Use of attention:

1. Connect the grounding wire of the lightning protector to the ground wire of the lightning protection system.

2. Surge protector is installed with 35MM standard guide rail

3. Determine the discharge current path

4. Lightning arrester must be reliably connected to the ground wire of the lightning protection system, and the connection line is short, thick and straight.

Working principle of product:

In the solar photovoltaic system, the inductive or capacitive coupling voltage is caused by the lightning shock and the switching operation of the upstream power supply system. Therefore, the surge may damage the photovoltaic modules and inverters, which will cause serious consequences for the operation of the photovoltaic system. The photovoltaic lightning arrester is specially developed for this purpose. The lightning protection module of the DC power supply, once the high voltage, and endanger the insulation of the protected equipment, the lightning arrester acts immediately, and the high voltage impact current is directed to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so as to protect the power equipment.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Packaging & Shipping:

Company information:

Wenzhou Britec Electric Co., LTD. a Chinese professional SPD manufacture company. Our company was established in 2003, is China's professional produce low voltage surge arrester of enterprises. Welcome the friends from anywhere in the world, as long as you have about surge protection device demand, please contact us!

1000V Class II DC Lightning Arrester Solar PV Surge Arrester 2

Certification:

FAQ:

A: Are you an agent or a factory?
Q: We are a factory.

A: What is the port of exportation for your factory?
Q: Ningbo/Shanghai,China.

A: What’s your main market?
Q: Western Europe, Eastern Europe, northern Europe, southern Europe, Central Europe, East Asia, South Amercia, the Middle East and so on.

A: What’s the MOQ?
Q: Normally 200pcs.

A: Why choose us?
Q: We have rich experience in produce and professional quality control system.

A: Can you let me how to control the quality?
Q: We have our QC team and quality control system, before packaging, we will inspect the goods carefully. We will try our best to make you satisfactory.

A: What’s the payment terms?
Q: 30% deposit, balance before shippment.

A: What’s the mass production lead time?
Q: Usually 20 days after receiving the customer’s deposit.

A: What the certificates do you have?
Q: TUV, CE, CB etc.
