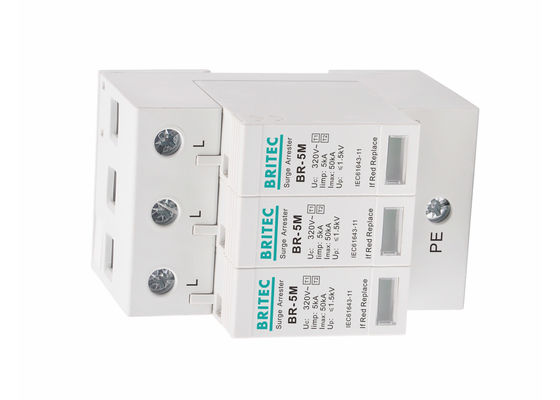

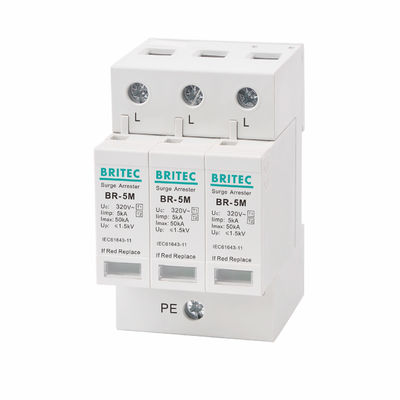

5kA 3P 320Vac Lightning Protectors Type 1+2 AC surge protection device / Class I+II / Class B+C series

5kA 3P 320Vac Lightning Protectors Type 1+2 AC surge protection device / Class I+II / Class B+C series
5kA 3P 320Vac Lightning Protectors Type 1+2 AC surge protection device / Class I+II / Class B+C series 5kA 3P 320Vac Lightning Protectors Type 1+2 AC surge protection device / Class I+II / Class B+C series

Large Image :  5kA 3P 320Vac Lightning Protectors Type 1+2 AC surge protection device / Class I+II / Class B+C series

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-5M 3P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: T/T
Supply Ability: 100000 Piece/Pieces Month
Contact Now

5kA 3P 320Vac Lightning Protectors Type 1+2 AC surge protection device / Class I+II / Class B+C series

Description
Item Name: Type 1 + Type 2 AC Surge Protective Device Iimp: 5kA On 10/350µs Impulse
Technology: MOV In:: 20kA
Imax:: 50kA Remote Signaling: Option
Material: Thermoplastic UL94-V0 Class: Class I+II
Pole Number: 3P Uc: 320V AC
Highlight:

5ka lightning protectors

,

3p lightning protectors

Lightning Protectors Type 1+2 AC surge protection device Feature:


• The SPD is a lightning current and surge arrester Type 1+2(class I+II)
• BR-5M 3P is built with a plug-in module and fixed base, which allows an easy and fast maintenance.
• According to DIN VDE 0675 Part 6-11, complies with IEC 61643-1, IEC 61643-11 as well.
• It is equipped with an internal thermal safety which will disconnect the unit from the AC network in case of the end of life. This disconnection will be indicated by the turn-on of the red mechanical indicator in the front.

Lightning Protectors Type 1+2 AC surge protection device Product Details:

  BR-5M-320 3P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage                     Uc 320V
Lightning impluse current (10/350us)                      Iimp 5kA
Nominal discharge current (8/20us)                            In 20kA
Max. discharge current (8/20us)                             Imax 50kA
Voltage protection level                                              Up ≤1.5kV
Response time                                                            tA ≤25ns
Power supply system 3 phases TN-C system
Technology MOV
Format Plug-in modular
Operating temperature range                                     Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material                    Thermoplastic UL94-V0
OEM Yes
Remote Signalling Optional


Dimension:


5kA 3P 320Vac Lightning Protectors Type 1+2 AC surge protection device / Class I+II / Class B+C series 0

Certification:

5kA 3P 320Vac Lightning Protectors Type 1+2 AC surge protection device / Class I+II / Class B+C series 1

Production Flow:

5kA 3P 320Vac Lightning Protectors Type 1+2 AC surge protection device / Class I+II / Class B+C series 2

FAQ:

Q1: Where is your factory located?
A1: We are a real factory, located in Wenzhou, Zhejiang, China.

Q2: How about inspection?
A2: Our Test standard: IEC 61643-1 / EN 61643-11/ UL1449 ed.4/GB 18802.1, and the Vibration and Shock according standard : DIN EN 60068-2-6 and DIN EN 60068-2-27, as well as the Degree of protection according to IEC EN60529: IP 20.


Q3: How about your delivery date?

A3: 10 days for regular sample orders, 30 days for bulk order. Include OEM order.


Q4: Could you do OEM for us?
A4: Sure,OEM is acceptable, and please supply with the brand letter of Authorization.

Q5: What is the payment terms?
A5: T/T, PayPal and L/C is acceptable.
