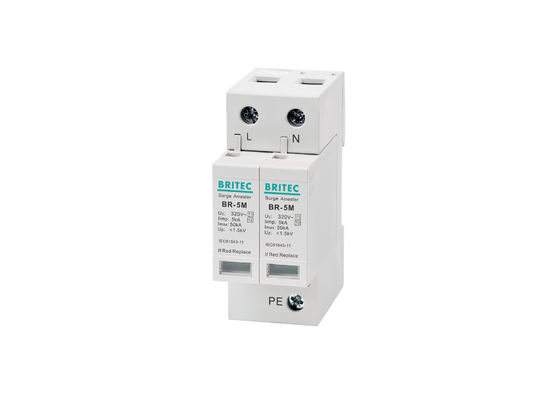

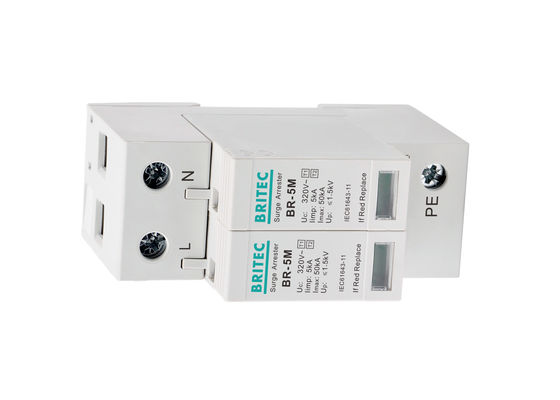

BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD

BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD
BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD

Large Image :  BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR320-5M 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: USD 40-80 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces Month
Contact Now

BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD

Description
Item Name: Surge Protector Class: Class I + Class II
Type: T1 + T2 Material: Thermal Plastic UL94-V0
Pole Number: 2P Tu: -40℃-80℃
Uc: 320V AC Iimp: 5kA
Imax: 50kA Application: Single Phase
Highlight:

spd single phase surge protector

,

5ka single phase spd



BR320-5M 2P Surge Protective Device 10/350 5kA SPD Single Phase Surge Protector



BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD Feature:

• BR320-5M high energy modular SPD is designed according to IEC standard.
• The discharge current of each signal module can be up to 5kA (10/350μS).
• This model designed in modular with excellent airtight property.
• It is with 35mm electrical lead rail, which make it easy for installation.

BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD Product Details:

  BR-5M-320 2P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage                     Uc 320V
Lightning impluse current (10/350us)                      Iimp 5kA
Nominal discharge current (8/20us)                            In 20kA
Max. discharge current (8/20us)                             Imax 50kA
Voltage protection level                                              Up ≤1.5kV
Response time                                                            tA ≤25ns
Operating temperature range                                     Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material                    Thermal plastic UL94-V0
OEM Yes


Dimension:


BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD 0

BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD Application:


• This product is especially suitable for application in the A grade Lightning Protection in high risk area of lightning strike.

• It could be installed in 320V AC power system.

Company information:

Wenzhou Britec Electric Co., Ltd. was founded in 2003. Britec is a SPD manufacturer in Yueqing, Zhejiang, China. Britec focuses on low voltage surge arrester development and design for 17 years. Britec products are widely used in electric power, communication, construction and other industries. It is favored by many foreign customers.

BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD 1

Certification:

Our products are passed the inspection standards included CE & TUV with 100% quality.

BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD 2

Our advantage:

• With over 17 years experience of producing products.

• Experienced technichal support team.

• 2 years warranty for all the goods from us.

• We could provide OEM/ODM service for all kinds of customers. Please contact us for details.

• Our proffesional support team will service onlin 24 hours for customers. If there's any question, please contact with our sales.


Payment & Shipping:

BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD 3BR320-5M 2P 10/350 5kA Single Phase Surge Protection Device SPD 4

FAQ:

Q1. Do you provide a cargo warranty?
  A: Yes, we provide a warranty for all goods for 2 years.

Q2. Can you provide technical support?
  A: We have been in this field for more than 17 years. If you have any questions, please contact us and we will provide advice from our engineers to help you solve the problem.

Q3. What is your MOQ?
  A: We provide you with a small order quantity for each item, depending on your specific order!

Q4. How do you make a long-term relationship with our business?
  A: We maintain good quality and competitive prices to ensure the interests of our customers.
