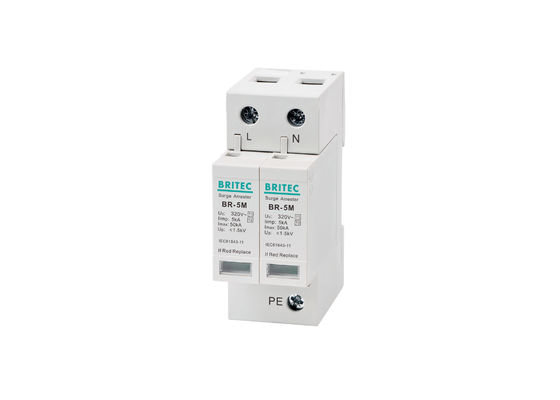

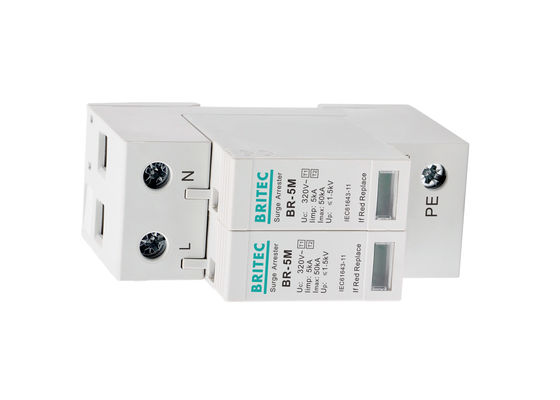

BR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail Mount

Large Image : BR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail Mount

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-5M 320 2P
Document:	BR-5M 2P.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 30 days after payment
Payment Terms:	T/T
Supply Ability:	100000 Piece/Pieces Month

Contact Now

BR-5M 320V 2P Single Phase SPD with 5kA Type 1 + Type 2 Surge Protection Device DIN Rail Mount

Description

Number Of Poles:	2	Class:	B+C
Voltage:	320V	Max Discharge Current:	50kA
Response Time:	25 Ns	Method Of Assembly:	DIN Rail 35 Mm
Phase:	Single Phase	Material:	Thermoplastic UL94-V0
Classification:	Type B+C	Protection Level:	IP 20
Highlight:	spd single phase surge protector , 5ka single phase spd

BR-5M 320 2P 10/350 T1+T2 5kA Single Phase AC Surge Protection Device SPD

Product Features

2 Pole configuration
Discharge current up to 5kA (10/350μS) per signal module
AC Surge Protective Device Type 1 + Type 2
Easy installation on 35mm electrical DIN rail

Technical Specifications

Parameter	Specification
SPD classification (EN 61643-11)	Type 1 + Type 2
SPD classification (IEC 61643-11)	Class I + Class II
Max. continuous operating AC voltage (Uc)	320V
Lightning impulse current (10/350μs) Iimp	5kA
Nominal discharge current (8/20μs) In	20kA
Max. discharge current (8/20μs) Imax	50kA
Voltage protection level (Up)	≤1.5kV
Response time (tA)	≤25ns
Operating temperature range (Tu)	-40℃ to +80℃
Operating state / fault indication	Green / Red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Mounting	35mm DIN rail
Protection degree	IP20
Enclosure material	Thermoplastic UL94-V0
OEM	Yes

Product Dimensions

Applications

This surge protection device is specifically designed for Grade A Lightning Protection systems in high-risk lightning strike areas. It is suitable for installation in 320V AC power systems.

Manufacturer Information

Wenzhou Britec Electric Co., Ltd. was founded in 2003 and is a specialized SPD manufacturer located in Yueqing, Zhejiang, China. With over 21 years of experience, Britec focuses on low voltage surge arrester development and design. Our products are widely used in electric power, communication, construction, and other industries, and are favored by many international customers.

Certifications

Our products meet international quality standards and are certified with CE & TUV approvals, ensuring 100% quality compliance.

Our Advantages

Over 21 years of manufacturing experience
Experienced technical support team
5-year warranty on all products
OEM/ODM services available for all customer requirements
24/7 professional customer support available

Payment & Shipping

Frequently Asked Questions

Q1. Do you provide a cargo warranty?

Yes, we provide a 5-year warranty for all goods.

Q2. Can you provide technical support?

With over 21 years of industry experience, our engineering team provides comprehensive technical support and problem-solving assistance.

Q3. What is your MOQ?

We offer flexible minimum order quantities tailored to your specific requirements.

Q4. How do you maintain long-term business relationships?

We maintain consistent product quality and competitive pricing to ensure our customers' interests are protected.
