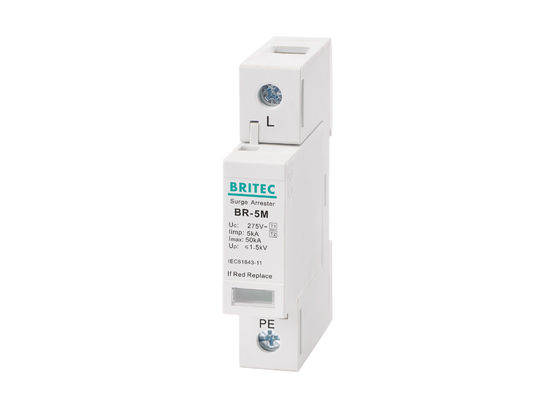

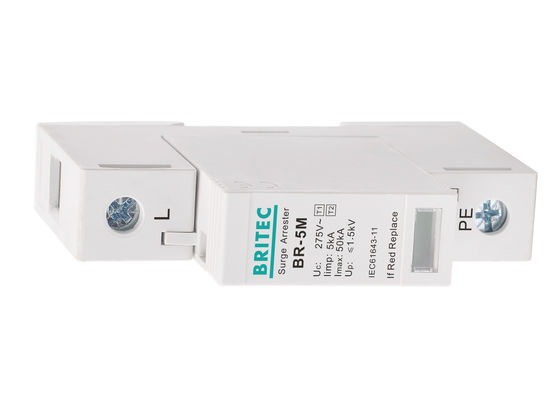

275V AC 5kA Iimp T1+T2 Surge Protector and Surge Arrester for Low Voltage Systems

275V AC 5kA Iimp T1+T2 Surge Protector and Surge Arrester for Low Voltage Systems
275V AC 5kA Iimp T1+T2 Surge Protector and Surge Arrester for Low Voltage Systems 275V AC 5kA Iimp T1+T2 Surge Protector and Surge Arrester for Low Voltage Systems

Large Image :  275V AC 5kA Iimp T1+T2 Surge Protector and Surge Arrester for Low Voltage Systems

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-5M-275 1P
Document: BR-5M 1P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 30 days after payment
Payment Terms: T/T
Supply Ability: 100000 pieces per month
Contact Now

275V AC 5kA Iimp T1+T2 Surge Protector and Surge Arrester for Low Voltage Systems

Description
Pole: 1P Max. Continuous Operating Voltage Uc: 275V
Nominal Discharge Current In: 20kA (8/200μs) Max. Discharge Current Imax: 50kA (8/200μs)
Impulse Current By Pole Iimp: 5kA (10/350μs) Item Name: Surge Arrestor
Type: Type 1 + Type 2 Class: Class I + Class II
Tu: -40℃-80℃ System: Low Voltage
Highlight:

5kA Power Surge Arrester

,

275V Power Surge Arrester

SPD 275V AC Low Voltage Iimp 5kA T1+T2 Surge Protector Power Surge Arrester
Product Features
  • AC surge protector equipment I+II, B+C, T1+T2 Iimp 5kA - comprehensive group I+II surge protection
  • 35mm standard rail mounting for easy installation
  • Designed to prevent indirect and low intensity direct lightning strikes
Technical Specifications
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage Uc 275V
Lightning impulse current (10/350μs) Iimp 5kA
Nominal discharge current (8/20μs) In 20kA
Max. discharge current (8/20μs) Imax 50kA
Voltage protection level Up ≤1.5kV
Response time tA ≤25ns
Operating temperature range Tu -40℃ to +80℃
Operating state / fault indication Green / red
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
Product Dimensions
SPD 275V AC Low Voltage Surge Protector dimensional diagram and specifications
Applications
  • Applicable to AC220V, 50/60Hz power supply systems
  • Protects electrical systems and equipment from over-voltage (lightning or operating over-voltage) and current damage
Company Information
Wenzhou Britec Electric Co., Ltd. located in China, specializes in research, development, production and sales of SPDs including AC surge protectors, DC surge protection devices, data surge protective devices, and LED lightning arresters.
Wenzhou Britec Electric facility and manufacturing operations
Our Services
  • Inquiry: Response within 24 hours
  • Shipment: Sea transportation, air transportation or express delivery
  • Payment: T/T, Paypal, L/C
  • Warranty: 5 years
  • Comprehensive OEM services available
Britec Electric product packaging and quality assurance Britec Electric product testing and certification process
Certifications
Britec Electric product certifications and quality standards
Our Factory
Britec Electric manufacturing facility and production line
Frequently Asked Questions
Q1: What's the difference between you and other suppliers?
A: High quality with good design.
Q2: If I'm interested in your product, but I'm not sure if I can use it, can I get samples from you?
A: Yes, we do take sample orders! We can also help suggest items or provide cross references.
Q3: How to become your agent?
A: Contact us through email, we will provide the best pricing and look forward to your inquiry.
Q4: What is your packaging style?
A: For standard MOQ, we offer carton bulk packaging. Please let us know if you have special requests.
