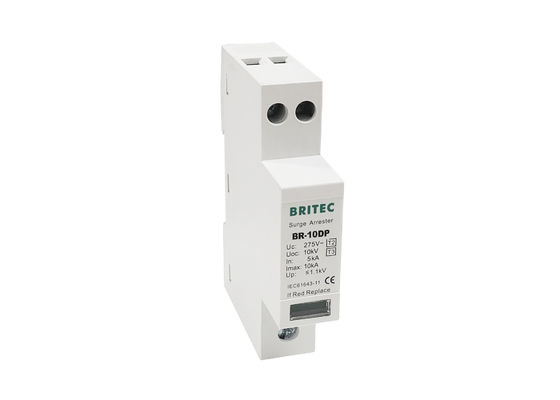

Name: Power Line 10kV Lightning Surge Protection Devices Class III 1+ NPE 10kA Surge Arrester
Brand: BRITEC
SKU: BR-10DP 1P+NPE
Rating: 4.7 (101 reviews)

Home Products Surge Protective Device Type 3

Power Line 10kV Lightning Surge Protection Devices Class III 1+ NPE 10kA Surge Arrester

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-10DP 1P+NPE

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Un:	24V / 60V / 120V / 230V
In:	5kA	Material:	Thermal Plastic UL94-V0
TA:	≤25ns	Mounting On:	35mm Din Rail
Uoc:	10kV	Tu:	-40℃...+80℃
Item:	Lightning Protection Device	Type:	Class III
Highlight:	type 3 surge protector , ac surge protector

Power Line 10kV Lightning Protector Type 3 Class III 1+NPE 10kA Surge Arrester Device Din Rail

Power Line 10kV Lightning Surge Protection Devices Feature:

• This product has a one-piece design.

• Protection class: Type 3, Class III

• Pole number: 1+NPE.

• Optional remote status signaling.

• The type 3 SPD has Uoc of 10kV.

• Conforms to IEC61643-11 and EN61643-11.

• Green-Red status indication.

• Full range of Uc from 30V to 275V.

Power Line 10kV Lightning Surge Protection Devices Product Details:

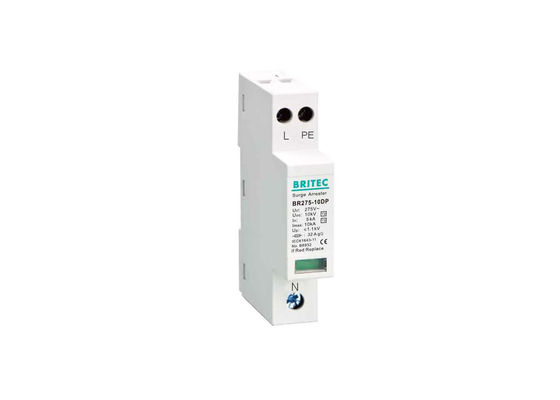

	BR30-10DP 1+1	BR75-10DP 1+1	BR150-10DP 1+1	BR275-10DP 1+1
SPD classification according to EN61643-11	Type 3	Type 3	Type 3	Type 3
SPD classification according to IEC61643-11	Class III	Class III	Class III	Class III
Nominal a.c. voltage Un	24V	60V	120V	230V
Max. continuous operating a.c. voltage Uc	30V	75V	150V	275V
Max. continuous operating d.c. voltage Uc	38V	100V	190V	300V
Nominal discharge current (8/20us) In	5kA	5kA	5kA	5kA
Combined impulse Uoc	10kV	10kV	10kV	10kV
Voltage protection level Up	≤200V	≤500V	≤700V	≤1100V
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red
Cross-section area (Min.)	2.5mm²	2.5mm²	2.5mm²	2.5mm²
Cross-section area (Max.)	16mm²	16mm²	16mm²	16mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20
Order Code	B8337	B8335	B8333	B8331
Order Code (With remote signaling)	B8338	B8336	B8334	B8332

Dimension:

Power Line 10kV Lightning Surge Protection Devices Application:

• To be installed in lowvoltage distributions at the boundary of LPZ 2 and LPZ 3 zones to protect distributions and equipment against overvoltage effects induced during a lightning strike and to prevent switching overvoltage.

• To protect electric and electronic equipment connected to a low-voltage distribution against pulse overvoltage.

• For protection of electric networks and equipment caused by atmospheric disturbances and from switching processes in networks.

• For protection of common electric equipment in apartments, commercial buildings etc.

Power Line 10kV Lightning Surge Protection Devices Advantage:

• Lower voltage protection level.

• Visual fault signaling.

• All-purpose surge arrester.

• High discharge capacity

• High reliability.

• Slim design.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Noted:

• Type 3 surge protective devices are generally installed right in front of the terminal device to be protected.

• Effective surge protection is not just simply installed. It has to be individually coordinated – to the system that is to be protected and the ambient conditions that are prevalent on site. For this reason, the design and concept must be consistent. This means many details must be taken into account, from considering the standards and stipulations right through to classification according to lightning protection zone.

• Surge protection should ensure that surge voltages cannot cause damage to installations, equipment or end devices.
