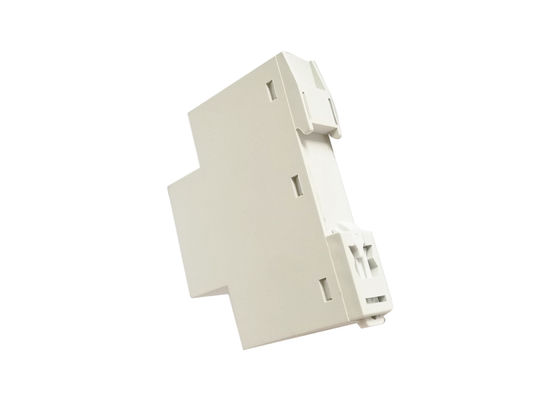

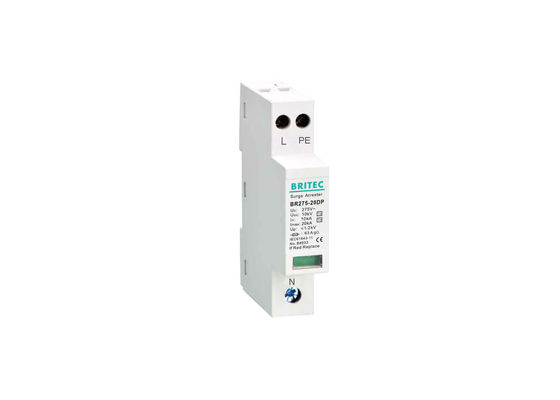

Name: Low - Voltage Single Phase Spd Surge Protection Device Uoc 10kV DIN Rail Surge Arrester
Brand: BRITEC
SKU: BR-20DP 1+NPE
Price: 1 USD
Availability: InStock
Rating: 5 (146 reviews)

Home Products Surge Protective Device Type 3

Low - Voltage Single Phase Spd Surge Protection Device Uoc 10kV DIN Rail Surge Arrester

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-20DP 1+NPE

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Un:	24V / 60V / 120V / 230V
In:	10kA	Imax:	20kA
Uoc:	10kV	Material:	Thermal Plastic UL94-V0
TA:	≤25ns	Mounting On:	35mm Din Rail
Tu:	-40℃...+80℃	System:	Low Voltage
High Light:	type 3 surge protector , ac surge protector

Low-voltage AC Single-Phase Type 3 Uoc 20kV DIN Rail Surge Arrester

Low - Voltage Single Phase Spd Surge Protection Device Feature:

• 2 poles in one modular.

• Protection class: Type 3, Class III.

• Pole number: 1+NPE.

• Remote signaling selectable.

• Patent design with thermal disconnection tripping device.

• Conforms to IEC61643-11 and EN61643-11.

• Green-Red status indication.

• BR-20DP series surge arrester is installed between LPZ2 and LPZ3, it can provide protection for equipments.

Low - Voltage Single Phase Spd Surge Protection Device Product Details:

	BR30-20DP 1+NPE	BR75-20DP 1+NPE	BR150-20DP 1+NPE	BR275-20DP 1+NPE
SPD classification according to EN61643-11	Type 3	Type 3	Type 3	Type 3
SPD classification according to IEC61643-11	Class III	Class III	Class III	Class III
Nominal a.c. voltage Un	24V	60V	120V	230V
Max. continuous operating a.c. voltage Uc	30V	75V	150V	275V
Max. continuous operating d.c. voltage Uc	38V	100V	190V	300V
Nominal discharge current (8/20us) In	10kA	10kA	10kA	10kA
Combined impulse Uoc	10kV	10kV	10kV	10kV
Voltage protection level Up	≤300V	≤600V	≤800V	≤1200V
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red
Cross-section area (Min.)	2.5mm²	2.5mm²	2.5mm²	2.5mm²
Cross-section area (Max.)	16mm²	16mm²	16mm²	16mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20
Order Code	B8353	B8351	B8349	B8347
Order Code (With remote signaling)	B8354	B8352	B8350	B8348

Dimension:

Low - Voltage Single Phase Spd Surge Protection Device Application:

• Used for protection of sensitive equipment, such as home appliances, and sensitive medical equipment.

• For the protection of low voltage distribution systems against transient overvoltage caused by direct and indirect lightning stroke and switching operations.

• Ideally suited for use in the main distribution board of the low-voltage consumer’s installation of a building.

Low - Voltage Single Phase Spd Surge Protection Device Advantage:

• Single module device saving you space.

• High discharge current.

• Advanced production process and beautiful appearance.

• Indication window for clear display of SPD status.

• Remote controlling function.

• Long service life.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Working principle of product:

When the surge protector has no voltage, the impedance is very high, which means that the circuit breaker is open. When the voltage occurs, the impedance drops to a few Europe, and the surge current will flow through the surge protector and will not enter the device. At the same time, because the surge protector has a small impedance at this time, the voltage on both sides of the surge is relatively small, and because he is in parallel with the protected equipment, it prevents the equipment from suffering from large surge power. Pressure, so as to play the effect of discharge and pressure limiting.

Company profile:

Britec is a producer of lower voltage products such as SPD. We specializes in research, design and manufacturing surge protection device. Britec has developed as a global manufacturer. We are committed to providing high quality, high performance products to our customers.

Low - Voltage Single Phase Spd Surge Protection Device Uoc 10kV DIN Rail Surge Arrester 1

Certificate:

Shipping:

FAQ:

Q1: Why choose us?

A: We are professional surge arrester manufacturer.

Q2: Do you have any certificates?

A: We have CE, CB, TUV, ISO9001 etc.

Q3: How about your products quality inspection?

A: We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.

Q4: Can you accept to use our logo?

A: We accept OEM production and can make customized product.
