Parallel Connect AC 230V / 385V Surge Protector Box with Surge Counter
Technology characteristic:
• Remote signal alarm function
• Operating state indication window.
• Over current, temperature control technical.
• Use best quality varistor, supply best over voltage protection function.
Product Details:
| |
TYB-100 |
| Working Voltage Un |
380V |
| Max. Continuous Operating Voltage Uc |
385V |
| Operating frequency Hz |
47~63Hz |
| Nominal Discharge Current (8/20μs) Ιn |
50kA |
| Max. Discharge Current (8/20μs) Imax |
100kA |
| Protection Mode |
L1 / L2 / L3 - N, N - PE |
| Voltage Protection Level Up |
≤2.8KV |
| Response Time tA |
≤25ns |
| Connection |
Parallel |
| Standard |
Q/70924537-1.01-2000, GA173-2002, YD/T5098-2001 |
| Indication |
Green / Red |
| Operating temperature range Tu |
-40℃~+85℃ |
| Relative humidity |
5%~95% |
| Atmospheric pressure |
74.8kPa~106kPa |

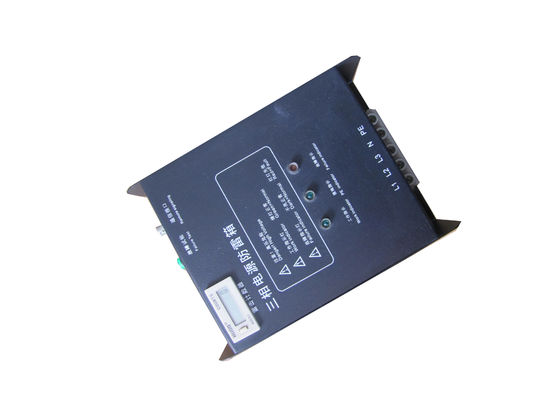

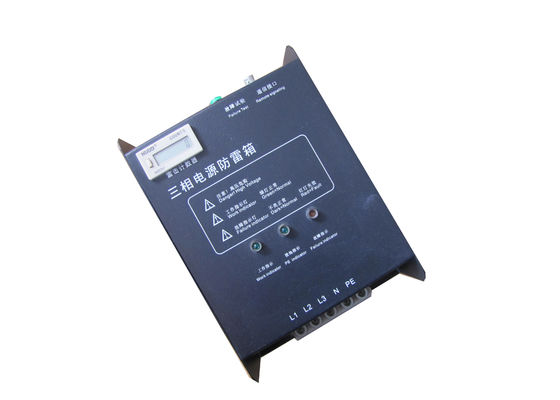

Product view:
Application:
• Used for three-phase power supply in parallel, when lightning for equipment connection.
• Used to low voltage main electrical distribution cabinet/distribution box.
• Applied to equipotential bonding of the low voltage main or distribution boxes in the building, providing
protection against the overvoltage arising from the lightning strike to power supply or faulty operation.
Advantage:
• Low residual pressure.
• Large protection capacity.
• Easy installation and maintenance.
• High security performance.
Company introduction:
| |
Britec
Professional manufacturer of SPDs since 2003. Our products are TUV & CE certified and have been exported worldwide, including Europe, Russia, UK, Africa, Malaysia, Brazil etc.
|
Packaging & Shipping:
• Package : Export standards carton or according to customers' requests.
• Shipping : By express, by sea or by air.
FAQ:
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer of SPDs with more than 17 years experience.
Q2: Can I get some samples before order?
A: Sure. We offer samples for quality check.
Q3: Do you have any MOQ for trial order?
A: MOQ is 100pcs.
Q4: What's your terms of payment?
A: 30% T/T in advance, balance before shipment.
Q5: Can you customize my products or put my logo on your products?
A: Yes, we offer OEM and ODM services. Please inform us formally before production.
