Power Line 1-phase Imax 30-60kA Surge Protector Box With Power Status Indicator
Technology characteristic:
• With remote alarm.
• With lightning counter.
• 230V surge protection box.
• With the power status indicator.
• Discharge reserves energy up to 30-60kA (8/20us).
Product Details:
| |
TYB-30 |
| Working Voltage Un |
AC 230V |
| Max. Continuous Operating Voltage Uc |
AC 385V |
| Operating frequency Hz |
47~63Hz |
| Nominal Discharge Current (8/20μs) Ιn |
30kA |
| Max. Discharge Current (8/20μs) Imax |
60kA |
| Protection Mode |
L - N, N - PE |
| Voltage Protection Level at 60kA Up |
≤0.8kV |
| Response Time tA |
≤25ns |
| Connection |
Parallel |
| Standard |
Q/70924537-1.01-2000, GA173-2002, YD/T5098-2001 |
| Indication |
Green / Red |
| Operating temperature range Tu |
-40℃~+85℃ |
| Relative humidity |
5%~95% |
| Atmospheric pressure |
74.8kPa~106kPa |

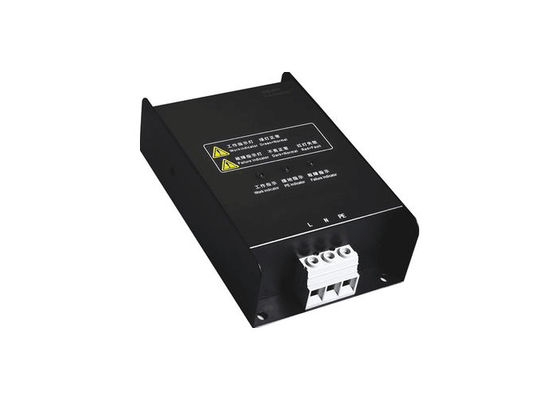

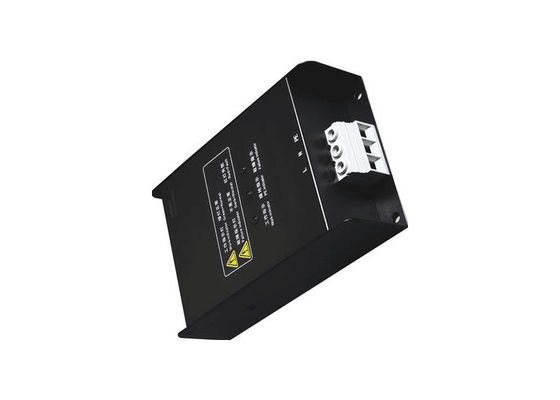

Product view:
Application:
• Used to Lightning and over-voltage protection of power, telecommunication, transportation, residence,
railway, petro-chemistry industries.
• Used in mobile communication base station, microwave communication station, telecommunication
machine room, industrial plant, mine, civil aviation and power system, such as all kinds of distribution
stations, switchgear, switch cabinet, switch box and other important and easy to be struck by lightning.
Advantage:
• Fast response.
• Stable performance.
• Display status.
Installation:
• Lightning protection and grounding shall conform to the requirements of lightning
protection specification.
