3 Phase 380V Power Surge Protector Box 140kA SPD For Power System

3 Phase 380V Power Surge Protector Box 140kA SPD For Power System

  • 3 Phase 380V Power Surge Protector Box 140kA SPD For Power System
  • 3 Phase 380V Power Surge Protector Box 140kA SPD For Power System
3 Phase 380V Power Surge Protector Box 140kA SPD For Power System
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: TYB-100
Payment & Shipping Terms:
Minimum Order Quantity: 200 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang, China (Mainland) Type: Surge Protector Box
Model Number: TYB-100 Item Name: SPD Box
Tu: -40℃-85℃ Un: 380v
Uc: 440v Hz: 47~63Hz
High Light:

lightning protection box

,

surge protection products

3 Phase 380V Power Surge Protector 140kA SPD Box For Power System


Technology characteristic:


• 380V surge protective box.
• Indicate: green (normal), red (failure).
• Operating temperature range: -40℃~+80℃.
• Relative humidity: 5%~95%.
• Atmospheric pressure: 74.8kPa~106kPa.


Product Details:


                                                                                      TYB-100
Working Voltage                                              Un AC 380V
Max. Continuous Operating Voltage                Uc AC 440V
Operating frequency                                        Hz 47~63Hz
Nominal Discharge Current (8/20μs)                Ιn 100kA
Max. Discharge Current (8/20μs)                 Imax 140kA
Protection Mode L1 / L2 / L3 - N, N - PE
Voltage Protection Level at 60kA                    Up ≤1.7kV
Response Time                                                tA ≤25ns
Connection Parallel
Connect wiring Kevin wiring
Standard Q/70924537-1.01-2000, GA173-2002, YD/T5098-2001
Indication Green / Red
Operating temperature range                          Tu -40℃~+85℃
Relative humidity 5%~95%
Dimension(L×W×H) 295mmX220mmX86mm
Atmospheric pressure 74.8kPa~106kPa

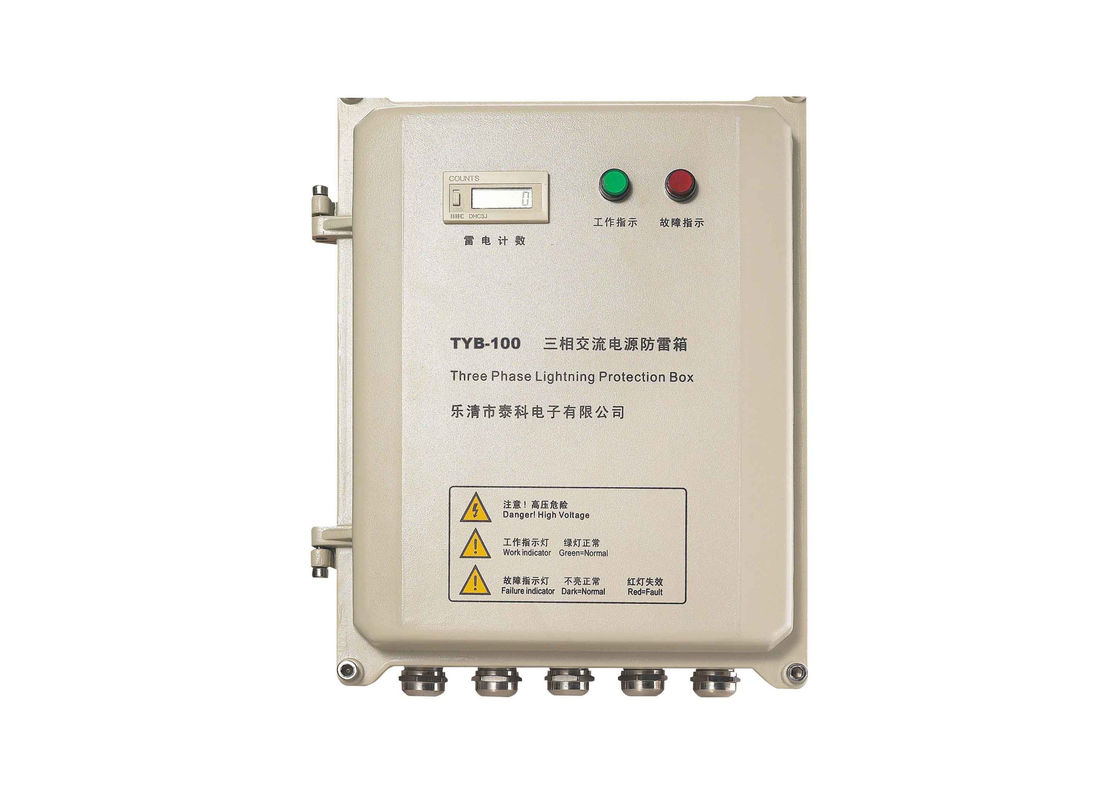

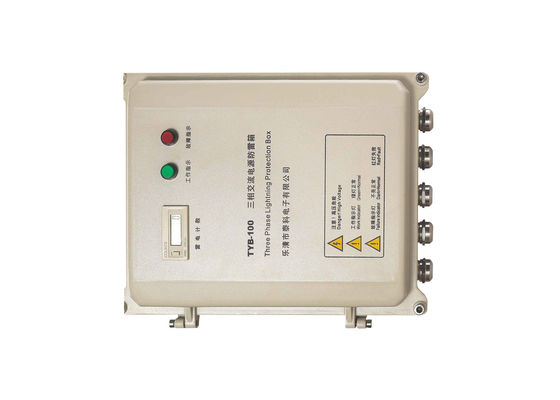

Product view:
3 Phase 380V Power Surge Protector Box 140kA SPD For Power System 0

Application:

• Used to electrical cabinet power system, communication, television broadcasting, computer room,
  automatic control and mechanical equipment and all distribution equipment lightning protection.
• Mainly installed in power distribution rooms, distribution cabinets, AC distribution panels, switch
  boxes, and other important equipment that are vulnerable to lightning strikes.

Advantage:

• High quality MOV.
• Stable performance.
• Convenient wiring.
• Quick respond.
• Large capacity.
• Strong practicability.
• Low residual pressure.


Shipping:



Delivery can be made by sea, by air, or by courier.



3 Phase 380V Power Surge Protector Box 140kA SPD For Power System 1

Company Information:


  Britec Electric Wenzhou Co., Ltd.

- Professional manufacturer of SPDs.

- Established in year 2003, 17 years production and sell experience.

- Have R&D Deparment.

- Main Market: Spain, France, UK, Italy, Malaysia, Canada, UAE, South Africa, Brazil, Peru,

                        Argentina, and many other countries.



3 Phase 380V Power Surge Protector Box 140kA SPD For Power System 2



Certificate:



Our company has ISO9001 certificate, our products have passed CE, CB, TUV type test.



3 Phase 380V Power Surge Protector Box 140kA SPD For Power System 3



Our factory:



3 Phase 380V Power Surge Protector Box 140kA SPD For Power System 4



Payment:



We accept 30% T/T, and balance before shipment. L/C, PayPal etc. are also accepted.



3 Phase 380V Power Surge Protector Box 140kA SPD For Power System 5

FAQ:



Q1. When can I get the price?

  A: We usually quote within 24 hours after we get your inquiry. If you are very urgent,

      please call us or tell us in your email so that we will regard your inquiry priority.



Q2. How can I get a sample to check your quality?

  A: After price confirmation, you can require for samples to check our quality. We will

      provide you sample.



Q3. How long can I expect to get the sample?

  A: After you pay the sample charges, the sample will be ready for delivery in 7-10 working

      days. The samples will be sent to you via DHL, FedEx, UPS, TNT or EMS. It should

      arrive in 3-5 workdays. You can use your own express account or prepay us if you don't

      have any account.



Q4. What about the leading time for mass production?

  A: Honestly, it depends on the order quantity. Normally, 15 days to 30 days after

      your deposit.
