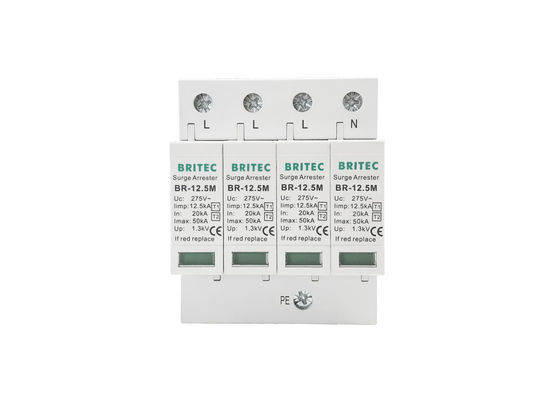

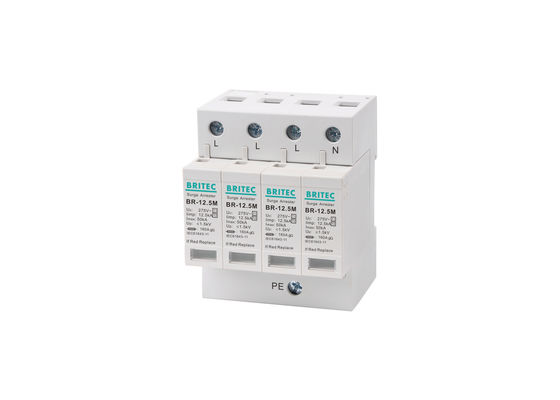

Pluggable Class 1 + 2 (B + C) Lightning Arrester Surge Protector SPD 10/350 12.5kA 4P

Pluggable Class 1 + 2 (B + C) Lightning Arrester Surge Protector SPD 10/350 12.5kA 4P

  • Pluggable Class 1 + 2 (B + C) Lightning Arrester Surge Protector SPD 10/350 12.5kA 4P
  • Pluggable Class 1 + 2 (B + C) Lightning Arrester Surge Protector SPD 10/350 12.5kA 4P
Pluggable Class 1 + 2 (B + C) Lightning Arrester Surge Protector SPD 10/350 12.5kA 4P
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-12.5M-275 4P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item Name:: Combined Surge Protector Model Number:: BR-12.5M-275 4P
Material:: Thermal Plastic Class: Class B + C
Pole Number:: 4P Tu: -40℃-80℃
Iimp: 12.5kA Imax: 50kA
Up: ≤1.3kV Standard:: IEC61643-11
High Light:

single phase surge arrester

,

lighting surge arrester


Pluggable Class 1 + 2 (B + C) SPD 10/350 12.5kA 4P Surge Protector

Pluggable Class 1 + 2 (B + C) Lightning Arrester Surge Protector Product Description:


• Combined Type 1+2/Class I+II surge protection devices.
• Modular type.
• Lightning impulse current (10/350μs): 12.5kA per phase.
• Uc: 275V.
• Pluggable design.
• Less than 25ns response time.
• Use red/green status indicator.
• Remote signaling.
• DIN-rail mountable.
• Tested according to IEC 61643-11 for type I and II surge protection.


Pluggable Class 1 + 2 (B + C) Lightning Arrester Surge Protector Product Details:


  BR-12.5M-275 4P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage                         Uc 275V
Lightning impluse current (10/350us)                          Iimp 12.5kA
Nominal discharge current (8/20us)                                In 20kA
Max. discharge current (8/20us)                                 Imax 50kA
Voltage protection level                                                 Up ≤1.3kV
Voltage protection level 5kA                                          Up ≤1.0kV
Max. backup fuse 160A gG
Response time                                                                tA ≤25ns
Operating temperature range                                         Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                  Thermal plastic UL94-V0
Degree of protection IP20


Dimension:

Pluggable Class 1 + 2 (B + C) Lightning Arrester Surge Protector SPD 10/350 12.5kA 4P 0


Pluggable Class 1 + 2 (B + C) Lightning Arrester Surge Protector Application:

• To prevent power supply equipment from being damaged by surge and lightning.
• Suitable for lightning protection zones III & IV.
• Use on buildings in applications where there is an external lightning protection system installed, usually installed at the service entrance or main distribution board.
• Widely used in the transformer low-voltage side of the main distribution room as the first protection of the power supply.

Pluggable Class 1 + 2 (B + C) Lightning Arrester Surge Protector Advantage:

• Large discharge capacity.
• Low voltage protection level.

Pluggable Class 1 + 2 (B + C) Lightning Arrester Surge Protector Installation:

Install in the main distribution cabinet/box of the low-voltage cabinet and the incoming line cabinet.
