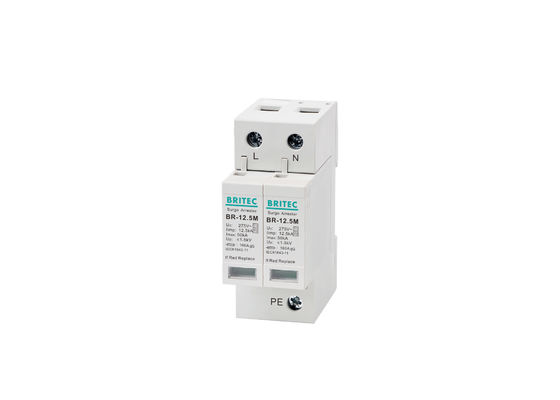

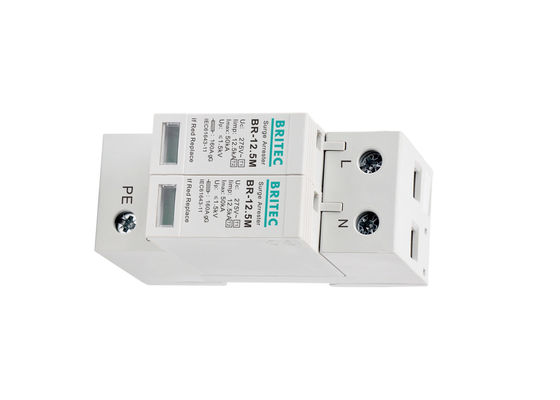

Name: TN System 2 Modules AC Surge Arrestor SPD 12.5 KA 2P L - N - PE Surge Protection Device
Brand: BRITEC
SKU: BR-12.5M-275 2P
Rating: 4.6 (194 reviews)

Home Products T1+T2 Surge Arrester B+C

TN System 2 Modules AC Surge Arrestor SPD 12.5 KA 2P L - N - PE Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-12.5M-275 2P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item Name::	Surge Arrester	Model Number::	BR-12.5M-275 2P
Material:	Thermal Plastic UL94-V0	Pole Number::	2P
Tu:	-40℃-80℃	Iimp:	12.5kA
In:	20kA	Imax:	50kA
Application:	TN System	Standard::	IEC 61643-11 And EN 61643-11
High Light:	lightning arrester surge protector , lighting surge arrester

TN System 2 Modules SPD 12.5 kA 2P (L-N-PE) Surge Protection Device

TN System 2 Modules AC Surge Arrestor SPD Product Description:

• Combined Type 1 + 2 Surge Arrestor.

• Lightning impulse current: 12.5kA.

• Nominal discharge current: 20kA.

• 35mm DIN rail.

• Plug-in module, consisting of a base part and a plug-in protection module.

• Operating state / fault indication by green / red indicator flag in the inspection window.

• Remote end of life indicators.

• Suitable for single phase TN system.

• It has passed the Class I and Class II lightning protection test conducted by national professional testing institutions.

TN System 2 Modules AC Surge Arrestor SPD Product Details:

	BR-12.5M-275 2P
SPD classification according to EN 61643-11	Type 1 + Type 2
SPD classification according to IEC 61643-11	Class I + Class II
Max. continuous operating a.c. voltage Uc	275V
Lightning impluse current (10/350us) Iimp	12.5kA
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	50kA
Voltage protection level Up	≤1.3kV
Voltage protection level 5kA Up	≤1.0kV
Max. backup fuse	160A gG
Response time tA	≤25ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20

Dimension:

TN System 2 Modules AC Surge Arrestor SPD Application:

• For discharging lightning currents and protecting against voltage surges.

• It is suitable for lightning protection of power supply system in areas with high lightning strike risk.

• It is the first level lightning protection product of ac power supply equipment.

• Suitable as the ﬁrst step of protection in incoming power supply panels and areas with exposure to the atmosphere, where installations are usually provided with an external lightning protection system.
