Place of Origin: | China |
Brand Name: | BRITEC |
Certification: | TUV |
Model Number: | BR275-10DP 2P |
Minimum Order Quantity: | 100 Piece/Pieces |
---|---|
Packaging Details: | EXPORT PACKING |
Delivery Time: | Shipped in 15 days after payment |
Payment Terms: | L/C, D/A, T/T, Western Union |
Supply Ability: | 50000 Piece/Pieces Month |
Item Name: | Surge Protective Device | Type: | Ac Surge Protector |
---|---|---|---|
Material: | Plastic | Pole Number: | 2P |
Certificate: | TUV/CE/ROHS/ISO9001 | Tu: | -40℃-80℃ |
UC: | 275V | In: | 5kA |
Imax: | 10kA | Up: | 1.1kV |
Highlight: | type 3 surge protector,ac surge protector |

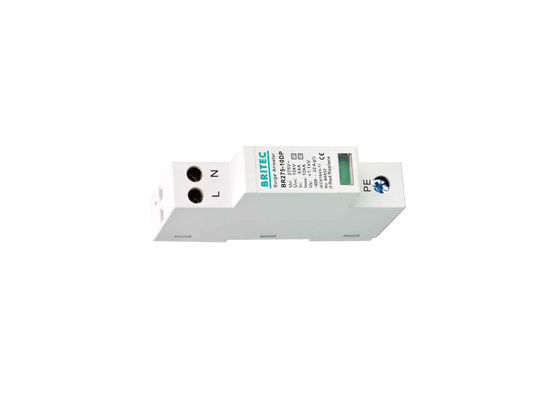

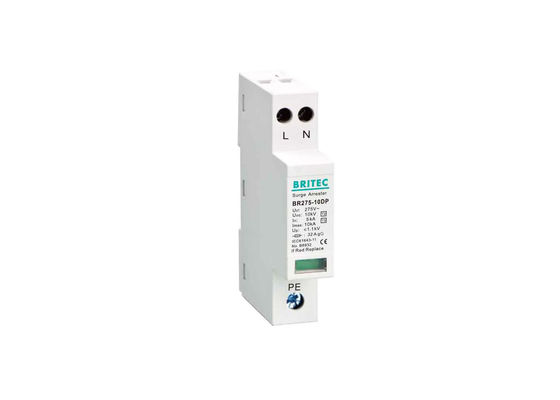

Eco Friendly Type 3 Ac Surge Protector Plastic Material Easy Installation
Protecting low-voltage consumers' installations against indirect lightning discharges.
High performance varistor with thermal disconnection tripping device.
Protection class: Type 3, Class III.
Pole number: 2P.
Surge areeare used to guard sensitive equipments from voltage spike.
Eco Friendly Type 3 Ac Surge Protector Technology characteristic:
Specification | BR275-10DP 2P |
Item name | Surge Arrester |
SPD dassification according to EN61643-11 | Type 3 |
SPD dassification according to IEC61643-11 | Class III |
Max continuous 0perating a.c. voltage Uc | 275V |
Max. discharge current (8/20µs) Imax | 10kA |
Norminal discharge current (8/20µs) In | 5kA |
Voltage protection level Up | 1.1kV |
Combined impulse Uoc | 10kV |
Response time tA | ≤25ns |
For mounting on | 35mm Din rail |
Degree of protection | IP20 |
Operating temperature range Tu | -40℃—80℃ |
Cross-section area (Min.) | 2.5mm² |
Cross-section area (Max.) | 16mm² |
Enclosure material | Thermal plastic |
Eco Friendly Type 3 Ac Surge Protector Application:
BR275-10DP series spark gap power surge protector is designed and manufactured according to IEC61643-11 and GB18802.1 standards. It can prevent direct lightning strikes and other surge current. This product can be mounted on a standard 35mm DIN rail mounting, it has high safety factor and long service life, it can be applied to single-phase power supply in the class III lightning protection of equipment and power system with high lightning risk.
About us:
Wenzhou Britec Electric Co,Ltd. is specialized in the research, development, design, production and marketing of SPD. These lines cover AC surge protector, DC surge protective, data surge protection devices, LED lightning arrester etc. We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have CE, CB, TUV approvals, and are widely exported to 50 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
Certificate:
FAQ:
Q1: Is your company a manufacturer or a trading company?
A: We are a professional manufacturer in SPD.
Q2: How can I get a sample? Is it for free?
A: Don’t hesitate to contact us for the specific samples you would need, and we would courier the samples to you as soon as possible. But samples are not free.
Q3: How about your minimum order quantity(MOQ)?
A: Regular product: 100pcs, and 200pcs for customized.
Q4: What's the delivery time?
A: Usually 20 days for our regular products.
Q5: What's your payment?
A: Our payment term is normally by T/T-30% in advance as the deposit, and the balance to be paid before shipment.
