Place of Origin: | China |
Brand Name: | BRITEC |
Certification: | TUV |
Model Number: | BR-12.5M 320 4P |
Minimum Order Quantity: | 100 Piece/Pieces |
---|---|
Packaging Details: | EXPORT PACKING |
Delivery Time: | Shipped in 15 days after payment |
Payment Terms: | L/C, D/A, T/T, Western Union |
Supply Ability: | 50000 Piece/Pieces Month |
Item Name: | Lightning Surge Arrester | Type: | Ac Surge Protector |
---|---|---|---|
Material: | Plastic | Pole Number: | 4P |
Iimp: | 12.5kA | Imax: | 50kA |
Enclosure: | Thermalplastic UL94-VO | Certificate: | TUV/CE/ROHS/ISO9001 |
Tu: | -40℃-80℃ | Application: | Surge Protective Device Is Suitable For Three-phase TN-S System |
Highlight: | industrial surge protection devices,ac surge protection device |

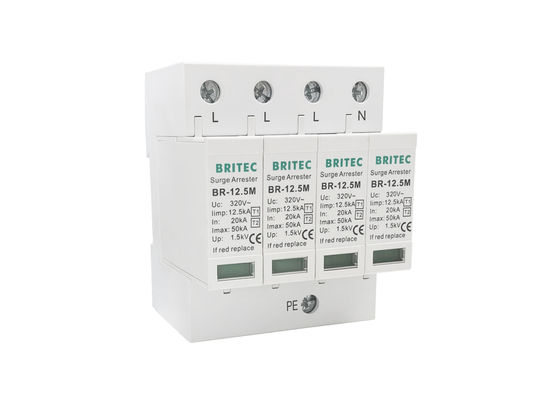

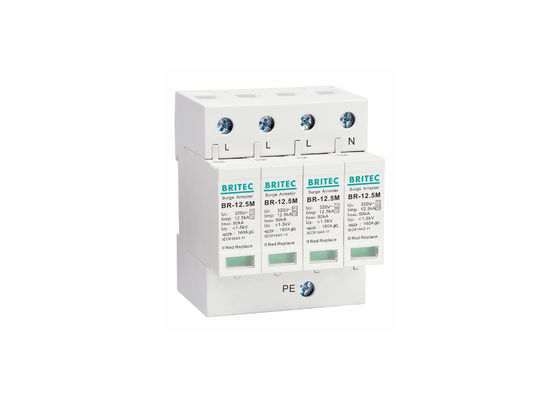

320V 3 Phase Type 1 Surge Protection Device TUV BR-12.5M 320 4P
320 V Type 1 Surge Protection Device Technology characteristic:
Specification | BR-12.5M 320 4P |
Item name | Surge Arrester |
SPD dassification according to EN61643-11 | Type 1 + Type 2 |
SPD dassification according to IEC61643-11 | Class I + Class II |
Max continuous 0perating a.c. voltage Uc | 320V |
Lightning impulse current (10/350µs) limp | 12.5kA |
Norminal discharge current (8/20µs) In | 20kA |
Max discharge current (8/20µs) Imax | 50kA |
Voltage protection level Up | 1.5kV |
Max. backup fuse | 160A gG |
Response time tA | ≤25ns |
For mounting on | 35mm Din rail |
Degree of protection | IP20 |
Operating temperature range Tu | -40℃—80℃ |
Cross-section area (Min.) | 4mm² |
Cross-section area (Max.) | 35mm² |
Enclosure material | Thermal plastic UL94-V0 |
Dimension:
320 V Type 1 Surge Protection Device Application:
About us:
Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
Production line:
Certificate:
FAQ:
Q1. Could I get samples before place an order?
A: Yes.
Q2. What about the lead time?
A: Mass production time needs 3 weeks according to your order quantity.
Q3. May I have your catalog and price list?
A: Of course, please have a detailed looking and choose the interested models in our site. Then contact us, we can offer your details as your request.
Q4. What happens if my products are damaged?
A: If the products are damaged during transportation from China to your destination, please take pictures and send the details to us, we will take full responsibility.
