Place of Origin: | China |
Brand Name: | BRITEC |
Certification: | TUV |
Model Number: | BR-12.5M 320 3P |
Minimum Order Quantity: | 100 Piece/Pieces |
---|---|
Packaging Details: | EXPORT PACKING |
Delivery Time: | Shipped in 15 days after payment |
Payment Terms: | L/C, D/A, T/T, Western Union |
Supply Ability: | 50000 Piece/Pieces Month |
Item Name: | Surge Protection Device | Type: | Ac Surge Protector |
---|---|---|---|
Material: | Plastic | Pole Number: | 3P |
Iimp: | 12.5kA | In: | 20kA |
Certificate: | TUV/CE/ROHS/ISO9001 | Tu: | -40℃-80℃ |
Application: | Surge Protective Device Is Suitable For Three-phase TN-C System | Order Code: | B8155 |
Highlight: | industrial surge protection devices,ac surge protection device |

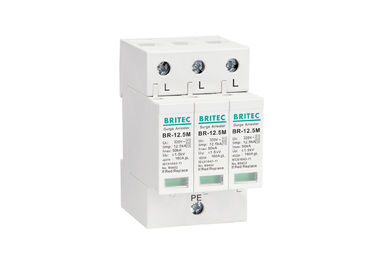

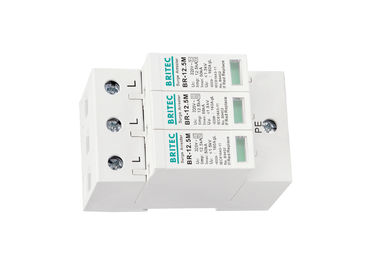

320V Three Phase Type 1 Surge Protection Device TUV Approved BR-12.5M 320 3P
IP20 AC Surge Protection Device Technology characteristic:
Specification | BR-12.5M 320 3P |
Item name | Surge Arrester |
SPD dassification according to EN61643-11 | Type 1 + Type 2 |
SPD dassification according to IEC61643-11 | Class I + Class II |
Max continuous 0perating a.c. voltage Uc | 320V |
Lightning impulse current (10/350µs) limp | 12.5kA |
Norminal discharge current (8/20µs) In | 20kA |
Max discharge current (8/20µs) Imax | 50kA |
Voltage protection level Up | ≤1.5kV |
Max. backup fuse | 160A gG |
Response time tA | ≤25ns |
For mounting on | 35mm Din rail |
Degree of protection | IP20 |
Operating temperature range Tu | -40℃—80℃ |
Cross-section area (Min.) | 4mm² |
Cross-section area (Max.) | 35mm² |
Enclosure material | Thermal plastic UL94-V0 |
Dimension:
IP20 AC Surge Protection Device Application:
