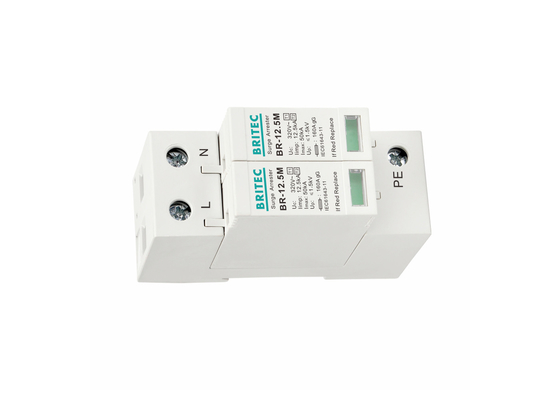

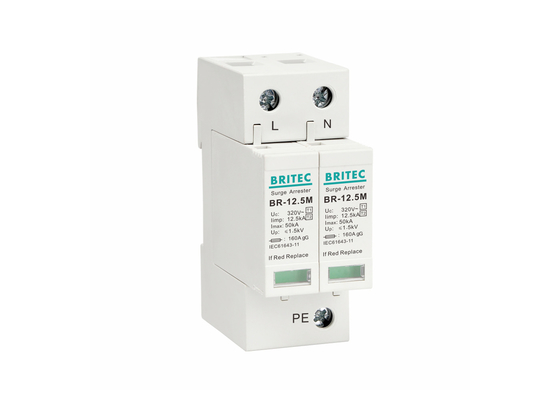

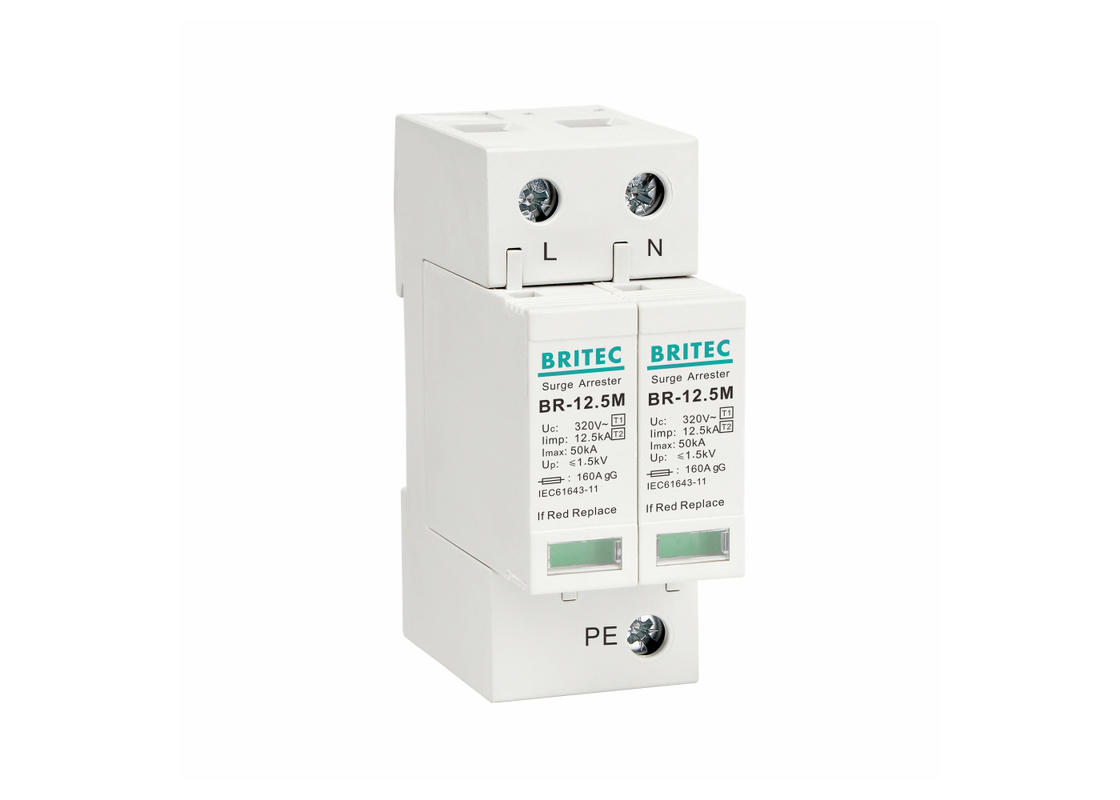

Name: Single Phase Type 1 + 2 Surge Protection Device 2P Pole High Performance
Brand: BRITEC
SKU: BR-12.5M 320 2P
Rating: 4.7 (130 reviews)

Home Products T1+T2 Surge Arrester B+C

Single Phase Type 1 + 2 Surge Protection Device 2P Pole High Performance

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-12.5M 320 2P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Arrester	Type:	Ac Surge Protector
Pole Number:	2P	UC:	320V
In:	20kA	Up:	1.5kV
Brand Name:	Britec	Certificate:	TUV/CE/ROHS/ISO9001
Material:	Plastic	Tu:	-40℃-80℃
Highlight:	industrial surge protection devices , type 1 surge protector

320V Single Phase Type 1 Surge Protection Device TUV Certificated BR-12.5M 2P

Single Phase Type 1 Surge Protection Device Features:

• Width 18mm/pole.

• Iimp: 12.5kA.

• Indication window for clear display of SPD status, each pole with one indication window.

• Remote indication to alert that a module needs replacement.

• Protection mode: L, N, PE.

• BR-12.5M series are composite 1 + 2 / I + II surge protectors designed in accordance with EN / IEC 61643 standard to relieve lightning current and limit surge over voltage.

Single Phase Type 1 Surge Protection Device Technology characteristic:

Specification	BR-12.5M 320 2P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1 + Type 2
SPD dassification according to IEC61643-11	Class I + Class II
Max continuous 0perating a.c. voltage Uc	320V
Lightning impulse current (10/350µs) limp	12.5kA
Norminal discharge current (8/20µs) In	20kA
Max discharge current (8/20µs) Imax	50kA
Voltage protection level Up	1.5kV
Max. backup fuse	315A gG
Response time tA	≤25ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermal plastic UL94-V0

Dimension:

Single Phase Type 1 + 2 Surge Protection Device 2P Pole High Performance 0

Single Phase Type 1 Surge Protection Device Application:

• Used to AC power line of house, bank, telecom tower and so on.

• Suitable for the first level protection of the power supply line in the indoor distribution cabinet of the power supply line and the outdoor power supply line exposed to the direct lightning hazard area (LPZ0) with the external lightning protection system.

• Application-optimised prewired combined lightning current and surge arrester for TN systems.

• For compact and simply equipped electrical installations with reduced technical requirements.

Single Phase Type 1 Surge Protection Device Advantage:

• Special design for saving installation space.

• High discharge current.

• Pluggable module, convenient for maintenance.

• DIN rail and panel mount options offer installation flexibility.

• With high discharge capacity.

• Low residual voltage and quick response.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Single Phase Type 1 Surge Protection Device Installation:

Installed in low-voltage distributions at the boundary of LPZ 0–LPZ 1 zones and higher to prevent overvoltage effects induced during a lightning strike and to prevent switching overvoltage.
