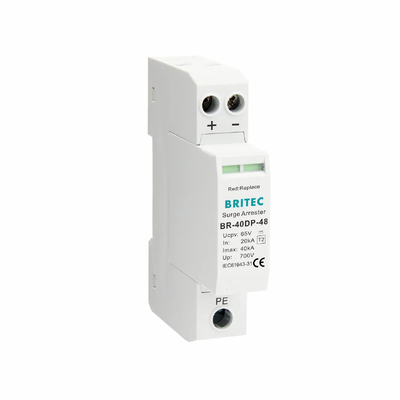

BR-40DP 48 Type 2 DC 48V SPD 40kA Surge Protective Device with Thermoplastic UL94-V0 Enclosure

Large Image : BR-40DP 48 Type 2 DC 48V SPD 40kA Surge Protective Device with Thermoplastic UL94-V0 Enclosure

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	ISO9001/ISO14001/ISO45001
Model Number:	BR-40DP 48
Document:	BR-40DP-DC.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Packaging Details:	Export packaging
Delivery Time:	15-20 days after payment
Payment Terms:	T/T,L/C
Supply Ability:	1000000 per month

Contact Now

BR-40DP 48 Type 2 DC 48V SPD 40kA Surge Protective Device with Thermoplastic UL94-V0 Enclosure

Description

Nominal Voltage:	48V	Max. Continuous Operating D.c. Voltage:	65V
Nominal Discharge Current (8/20μs):	20kA	Max. Discharge Current (8/20μs):	40kA
Voltage Protection Level:	≤700V	Operating State / Fault Indication:	Green / Red
Enclosure Material:	Thermoplastic UL94-V0	Name:	DC 48V 40kA SPD
Highlight:	40kA Surge Protective Device , 48V SPD , Thermoplastic UL94-V0 DC Surge Protector

BR-40DP 48 Type 2 DC 48V SPD 40kA Surge Protective Device (SPD) DC Power Surge Protector

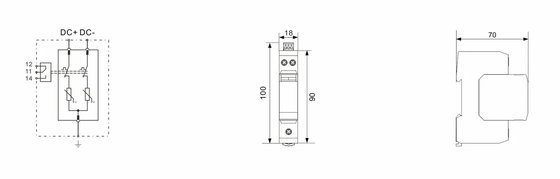

Product Specifications

Specification	BR-40DP-48
SPD classification according to EN61643-31 / IEC61643-31	Type 2 / Class II
Nominal voltage	48V
Max. continuous operating d.c. voltage	65V
Nominal discharge current (8/20μs)	20kA
Max. discharge current (8/20μs)	40kA
Voltage protection level	≤700V
Response time	≤25ns
Operating temperature range	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	2.5mm²
Cross-section area (Max.)	16mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Order code	B6732
Order code (with remote signal)	B6733

Key Features

Module design, convenient installation, with easy electric maintenance operation
With working indication window
Built-in over current and over heat, temperature control open circuit technology
The main module and the base are replaceable
Small creepage current, fast response time, remnant low voltage
Mounting on symmetrical rail 35mm (EN60715)
With remote connection, can realize remote control

Applications

It is mainly applicable for the Direct Current surge protection and over voltage protection in the fields of low voltage DC power supply.

Applied to electrical systems to provide a discharge path to earth to save those systems' components from being exposed to the high-voltage transients caused by the direct or indirect effects of lightning or power system anomalies.

It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.
