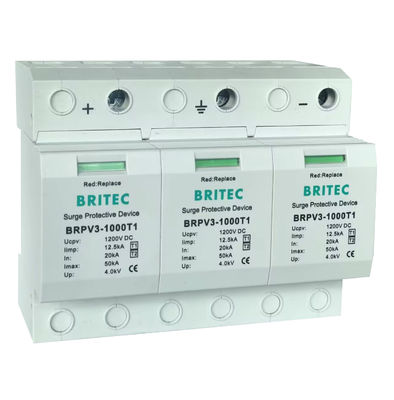

BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs

BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs

  • BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs
BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE,TUV
Model Number: BRPV3-1000 T1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-20 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: EN61643-31 / EN50539-11 Classification: Type 1+Type 2
Shipping Term: TNT DHL FEDEX EMS UPS OEM/ODM: Available
Ucpv: 1200V In: 20kA
Type: T1+T2 Warranty: 5 Years
Up: ≤4.0kV Function: Lighting Protection
Iimp: 12.5kA
Highlight:

BRPV3-1000 T1

,

1000V 12.5ka Pv Surge Arrester

,

T2 Dc Photovoltaic SPDs


BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs

DC 1000V surge protector Feature:

Like all outdoor structures, PV installations are exposed to the risk of lightning which varies from region to region. Preventive and arrest systems and devices should be in place.



• Type 1+2 surge protector for photovoltaic.
• Lightning impulse current(10/350us):12.5kA.
• Max. continuous operating dc voltage:1200V DC.
• EN61643-31 and EN50539-11 compliance.


DC 1000V surge protector Product Details:



BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs 0




   BRPV3 1000 T1
SPD classification according to EN61643-31 Type 1+Type 2
SPD classification according to EN50539-11 Class I+Class II
Max. continuous operating dc voltage                            Ucpv 1200V
Lightning impulse current (10/350us)                              Iimp 12.5kA
Nominal discharge current (8/20us)                                    In 20kA
Max. discharge current (8/20us)                                     Imax 50kA
Voltage protection level [(DC+/DC-)→PE]                         Up ≤4.0kV
Response time                                                                             tA ≤25ns
Operating temperature range                                             Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                Thermoplastic UL94-V0
Degree of protection IP20




DC 1000V surge protector Application:

This Arrester is used to protect the inverter and solar panels

Able to Withstand voltage 1200VDC

With a nominal discharge current 20KA

And also a total discharge current 50KA

With IP20 protection

International standards CE and TUV

Able to withstand temperature of -40 to 80 ° C



DC 1000V surge protector Advantage:

DC Surge protector is used to protect photovoltaic system, which is divided into Type 2 and Type 1+2 DC Surge protector.



DC Surge protector is usually installed at the DC input terminal of photovoltaic combiner box and inverter. At present, the maximum Ucpv of DC Surge protector is 1200V DC.

surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).


Our Services:


• 20 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.


Why need surge arrester?


Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility. The use of adapted surge protections is then highly recommended.


Installation instruction:


• Mount the SPD on 35 mm DIN rail.
• The SPD is placed in parallel between the energized conductors and ground.
• The selected SPD must be specifically designed, rated and approved for application on dc PV voltages.


Company profile:

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!

BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs 1

BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs 2



BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs 3



BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs 4

Our certificate:

We got CB, CE, TUV,RoHS Certificate:

BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs 5

Payment:

   Payment Term    T/T       EXW          30% T/T in advance, paid the balance before shipment.
FOB
CIF    30% T/T in advance, paid the balance against copy of B/L.
L/C    L/C amount above 50,000 usd, we can accept L/C at sight.
   Paypal       Amount lower than 5000usd.
Delivery Time    15-30 days after receiving deposit.


BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs 6

Factory:

BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs 7

BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs 8

FAQ:

Q1: How long is your products warranty?
  A: The warranty period of our products is 5 Years.

Q2: How about inspection?
  A: We have the whole inspection system from raw material to end products.

Q3: What is the service offered by company?
  A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.


BRPV3-1000 T1 50ka DC 1000V 12.5ka Pv Surge Arrester Solar Surge Protection Device T1 T2 Dc Photovoltaic SPDs 9
