| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-7M 3P+1 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 15 days after receipt of deposit |
| Payment Terms: | TT |
| Supply Ability: | 1000000 per month |
| Mounting: | DIN Rail 35 Mm. | Warranty: | 5 Years |
|---|---|---|---|
| Operating Temperature: | -40℃~+85℃ | Respones Time: | ≤100ns |
| Poles: | 1P,1P+N ,2P,3P,3P+N, 4P Optional | Material: | Thermoplastic UL94-V0 |
| Type Of Current: | AC | Product Name: | T1+T2 Surge Arrester B+C |
| Highlight: | 3P+1 T1+T2 Surge Arrester,BR-7M surge Protection Device Arrester,DIN Rail 35mm surge Protection Arrester |
||
Our T1+T2 Surge Arrester B+C is designed to provide reliable surge protection for electronic equipment. It is a lightening protector that is created with thermoplastic UL94-V0 material, and is rated for 50/60Hz. This product is easy to install for its mounting capability of DIN Rail 35 Mm. It offers protection level of up to 1.3kV for its SPD T1 25ka surge protection device.
The T1+T2 Surge Arrester B+C is a reliable, cost-effective lightning and surge protection solution that is designed to protect the power supply system and electrical devices from high-voltage spikes. This product is suitable for both residential and commercial applications and can be used in a wide range of applications, including industrial automation, data centers, and other sensitive electronic devices.
Our T1+T2 Surge Arrester B+C is designed to be an effective lightning and surge protection device, providing reliable protection against power surges and voltage spikes. It is easy to install and provides superior protection with its high-quality thermoplastic UL94-V0 material and SPD T1 25ka surge protection device.
| Product Name | T1+T2 Surge Arrester B+C |
|---|---|
| Protection Level | Up To 1.3kV |
| Surge Protection Device (T1) | 25ka |
| Surge Protection Device (T2) | 10ka |
| Material | Thermoplastic UL94-V0 |
| Rated frequency | 50/60Hz |
| Type of current | AC |
| Waveform | 10/350 |

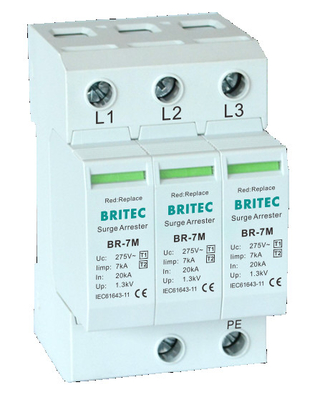

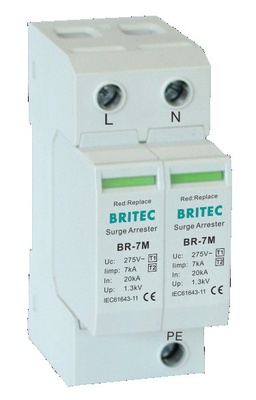

| Poles | 1P,1P+N ,2P,3P,3P+N, 4P Optional |
| Respones Time | ≤100ns |
| Mounting | Din Rail 35 Mm. |
| Warranty | 5 Years |

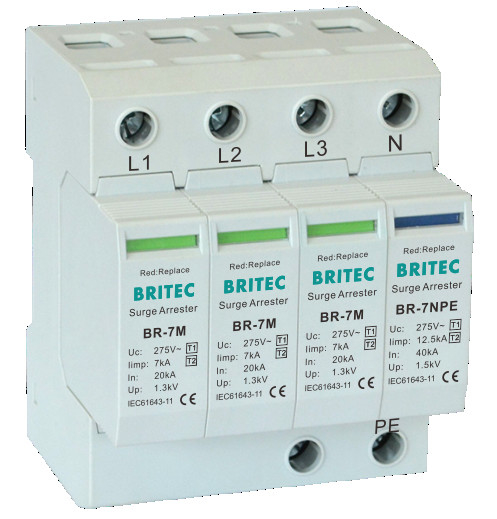

BRITEC BR-7M 3P+1 T1+T2 Surge Arrester is designed to protect electrical systems and components against lightning surge and transient overvoltages. With a rated frequency of 50/60Hz, and a waveform of 10/350, it has a response time of ≤100ns and can be used in 1P, 1P+N, 2P, 3P, 3P+N, and 4P configurations. This SPD T1 25ka arrester is fully compliant with TUV/CB/CE/ROHS/ISO9001 certifications, and has a minimum order quantity of 1 piece. It is supplied in a carton packaging and typically ships within 15 days after receipt of deposit. BRITEC is able to provide a monthly supply capacity of 1 million pieces with a 5-year warranty.
Brand Name: BRITEC
Model Number: BR-7M 3P+1
Place of Origin: China
Certification: TUV/CB/CE/ROHS/ISO9001
Minimum Order Quantity: 1PCS
Packaging Details: carton
Delivery Time: 15 days after receipt of deposit
Payment Terms: TT
Supply Ability: 1000000 per month
Type of current: AC
Operating Temperature: -40℃~+85℃
Warranty: 5 Years
Rated frequency: 50/60Hz
Mounting: DIN Rail 35 Mm.
Our T1+T2 surge arrester B+C is a lightening protector which is designed to protect your entire electrical system from any damage caused by high voltage spikes. It features a T1 25KA and T2 10KA SPD and offers a high level of safety and protection. It is certified by TUV/CB/CE/ROHS/ISO9001 and has a rated frequency of 50/60Hz. It is easy to install and mount on a DIN Rail 35 mm. It is also backed by a 5-year warranty and has an operating temperature of -40℃~+85℃.
We offer a minimum order quantity of 1PC and have a delivery time of 15 days after receipt of deposit. It is packaged in a carton and has a supply ability of 1000000 per month. We accept payment terms of TT.
We provide technical support and services for the T1+T2 Surge Arrester B+C. Our team of experienced technicians and engineers is available to address any questions or concerns you may have about the product.
We provide troubleshooting assistance, installation instructions, and product maintenance advice. Our team is also available to help with any warranty issues or product returns.
We are dedicated to providing the highest level of technical support and service for our customers. If you have any questions or concerns about the T1+T2 Surge Arrester B+C, please don't hesitate to contact us.
A5: The minimum order quantity for the T1+T2 Surge Arrester B+C is 1PCS, which is packaged in a carton.
