BRITEC BR-12.5M 3P+1 12.5kA Lightning Impulse Current Surge Protection Device with Plug-in Module Design and Class I+II Protection

BRITEC BR-12.5M 3P+1 12.5kA Lightning Impulse Current Surge Protection Device with Plug-in Module Design and Class I+II Protection

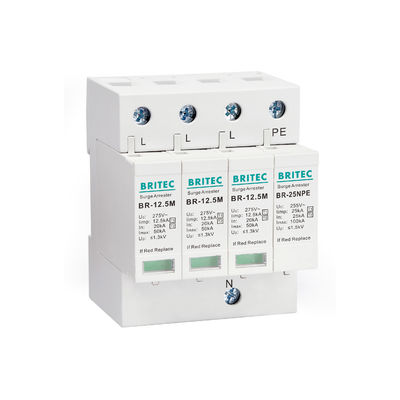

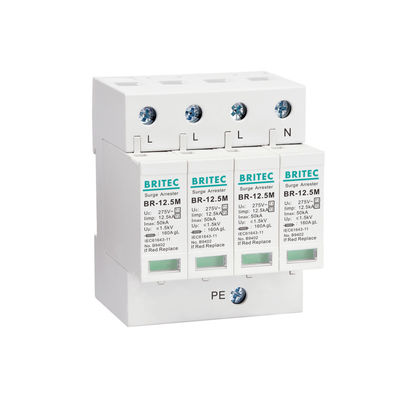

BRITEC BR-12.5M 3P+1 12.5kA Lightning Impulse Current Surge Protection Device with Plug-in Module Design and Class I+II Protection BRITEC BR-12.5M 3P+1 12.5kA Lightning Impulse Current Surge Protection Device with Plug-in Module Design and Class I+II Protection BRITEC BR-12.5M 3P+1 12.5kA Lightning Impulse Current Surge Protection Device with Plug-in Module Design and Class I+II Protection BRITEC BR-12.5M 3P+1 12.5kA Lightning Impulse Current Surge Protection Device with Plug-in Module Design and Class I+II Protection

Large Image :  BRITEC BR-12.5M 3P+1 12.5kA Lightning Impulse Current Surge Protection Device with Plug-in Module Design and Class I+II Protection

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS
Model Number: BR-12.5M 3P+1
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now

BRITEC BR-12.5M 3P+1 12.5kA Lightning Impulse Current Surge Protection Device with Plug-in Module Design and Class I+II Protection

Description
Item Name: Lightning Arrester Class I+II Spd Model Numbers: BR-12.5M 3P+1
Lightning Impulse Current(Iimp): 12.5kA Version: Plug-in
Configuration: 3P+1 Max. Backup Fuse: 160A
MOQ: 12PCS
Highlight:

Surge Protection 275v lightning arrester

,

12.5kA lightning arrester

,

Plug in 12.5ka SPD

BRITEC BR-12.5M 3P+1 Surge Protection 275v Lightning Arrester Class I+II SPD
12.5kA Surge Protection Device 275v lightning arrester Class I+II SPD
Features
  • Protecting low-voltage consumers' installations against indirect lightning discharges
  • Plug-in module/base design facilitates replacement of a failed module without the need to remove system wiring
  • Protection class: Type 1, Class I
  • Nominal discharge current (8/20μs) (In): 20kA
  • Max. discharge current (8/20μs) (Imax): 50kA
  • Limp 25kA and 12.5kA
  • Varistor technology
  • Remote contacts: available
Technology Characteristics
BRITEC BR-12.5M 3P+1 Surge Protection Device technical diagram
Parameter BR-12.5M 3P+1
Max. continuous operating a.c. voltage Uc(L-N/N-PE) 275V/255V (50/60Hz)
Lightning impulse current (10/350us) Iimp(L-N/N-PE) 12.5kA/25kA
Nominal discharge current (8/20us) In(L-N/N-PE) 25kA/25kA
Maximum discharge current (8/20us) Imax(L-N/N-PE) 50kA/100kA
Voltage protection level Up(L-N/N-PE) ≤1.3kV/≤1.5kV
Response time tA ≤25ns
Max. backup fuse 160A
Operating temperature range Tu -40℃--80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards IEC 61643-11, EN 61643-11
Dimensions
BRITEC BR-12.5M 3P+1 Surge Protection Device dimensional drawing
Applications
Application: Grid Power, AC Power Circuit, AC Distribution Box, LT Electrical Panel
AC SPD uses for AC Power or Grid Power to protect against transient AC voltage.
Certifications
CB, CE, TUV, RoHS Certificate
BRITEC product certifications and quality standards
Company Information
Wenzhou Britec Electric Co., Ltd. established in 2003 and located in Yueqing, Zhejiang, China. Our company specializes in research and development of surge protection devices. The series of surge protection device Type 1, Type 2, and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
Wenzhou Britec Electric Co., Ltd. facility overview
Production Line
BRITEC surge protection device production line BRITEC manufacturing process and quality control
Laboratory Equipment
BRITEC laboratory testing equipment BRITEC quality assurance and testing facilities
Shipping
BRITEC product packaging and shipping process
Frequently Asked Questions
Q1: Selection of surge protector
A1: The grading of the surge protector (commonly known as lightning protection) is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of EN 61643-11 / IEC 61643-11 is 25 kA (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.
Q2: Are you a lightning surge protectors factory or lightning surge protectors trading company?
A2: We are a lightning surge protectors manufacturer.
Q3: Warranty and services
A3: 1. Warranty 5 years
2. Lightning surge protectors products and accessories have been tested 3 times before ship out.
3. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, please contact our staff, and leave detailed contact information, we promise to keep your information confidential.
Q5: Is the sample available and free?
A5: Sample is available, but the sample cost should be payable by you. The cost of the sample will be refunded after further order.
