25kA T1+T2 Surge Arrester DIN Rail Mount Lightning Protector for Low Voltage AC Systems

25kA T1+T2 Surge Arrester DIN Rail Mount Lightning Protector for Low Voltage AC Systems

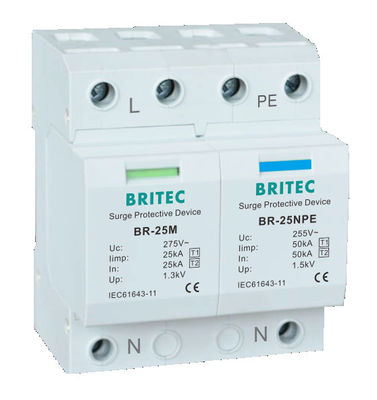

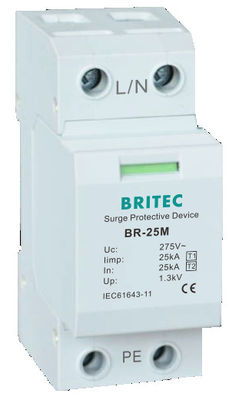

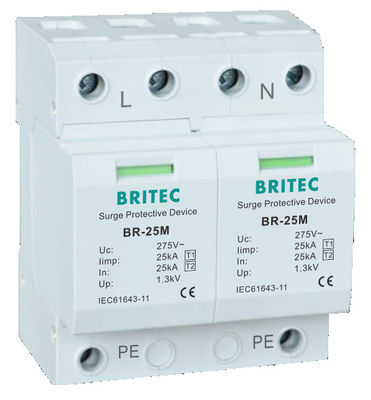

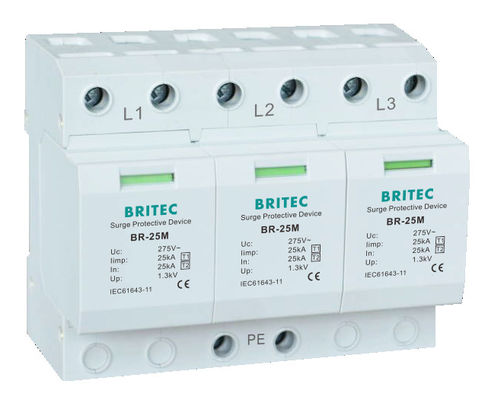

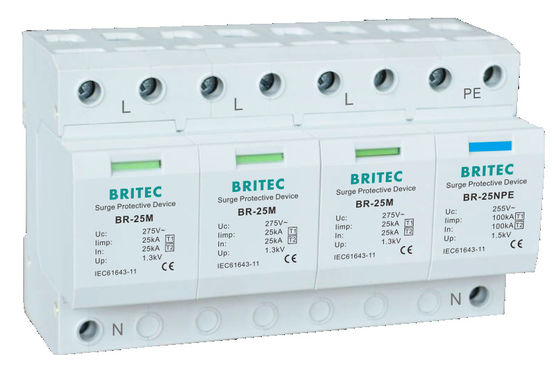

25kA T1+T2 Surge Arrester DIN Rail Mount Lightning Protector for Low Voltage AC Systems 25kA T1+T2 Surge Arrester DIN Rail Mount Lightning Protector for Low Voltage AC Systems 25kA T1+T2 Surge Arrester DIN Rail Mount Lightning Protector for Low Voltage AC Systems 25kA T1+T2 Surge Arrester DIN Rail Mount Lightning Protector for Low Voltage AC Systems 25kA T1+T2 Surge Arrester DIN Rail Mount Lightning Protector for Low Voltage AC Systems

Large Image :  25kA T1+T2 Surge Arrester DIN Rail Mount Lightning Protector for Low Voltage AC Systems

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BR-25M 3P+1NPE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now

25kA T1+T2 Surge Arrester DIN Rail Mount Lightning Protector for Low Voltage AC Systems

Description
Item Name: 25kA Low Voltage Surge Arrestor Device Model Numbers: BR-25M 3P+1NPE
EN Type: T1+T2 Configuration: 3+1
Waveform: 10/350 Response Time: 25ns
Type Of Current: AC MOQ: 3 PCS
Rated Frequency (f): 50/60Hz Mounting: DIN Rail 35 Mm.
Highlight:

25kA T1+T2 Surge Arrester B+C

,

vT1+T2 Low Voltage Surge Arrester B+C

,

3 Phase AC Spd Lightning Protector

BR-25M 3P+1NPE 25kA T1+T2 Varistor Surge Arrester B+C Low Voltage 3 Phase AC SPD Lightning Protector
Product Overview

T1+T2 surge arrester 25kA low voltage surge arrestor device designed for comprehensive lightning protection in industrial and commercial applications.

Features & Technology

According to different lightning protection areas, AC Surge Protective Device is divided into four categories: Type 1, Type 2, Type 3 and Type 1+2 Surge Protective Devices.

T1+T2 surge arrester technology diagram T1+T2 surge arrester technical specifications
Technical Specifications
Parameter BR-25M 3P+1NPE
Max. continuous operating a.c. voltage Uc 275V
Lightning impulse current (10/350us) Iimp 25kA
Nominal discharge current (8/20us) In 25kA
Maximum discharge current (8/20us) Imax 100kA
Voltage protection level Up ≤1.3kV
Response time tA ≤25ns
Max. backup fuse 315A
Operating temperature range Tu -40℃--80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards IEC 61643-11, EN 61643-11
Available Options
  • Maximum discharge current: 20kA, 40kA, 80kA, 100kA, 120kA, 200kA
  • Number of poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
  • Maximum continuous operating voltage Uc: 275V, 320V, 385V, 440V, 550V, 800V, 1000V
Product Range
  • Type 1 surge protection device
  • Type 2 surge protection device
  • Type 1 + Type 2 surge protection device
  • Type 3 surge protection device
  • Type 2 + Type 3 surge protection device
  • DC (PV, solar) surge protection device
Applications

Application-optimized and prewired combined lightning current. Particularly useful in high lightning density areas where the risk of heavy surge current or even direct strike is high (e.g., buildings equipped with lightning rods).

Certifications
CB CE TUV RoHS Product certifications and standards
Company Information

Wenzhou Britec Electric Co., Ltd. established in 2003 and located in Yueqing, Zhejiang, China. Our company specializes in research and development of surge protection devices. We have 18 years of experience in the research & development and production of surge protection field and provide 5 years warranty.

Wenzhou Britec Electric facility
Production & Quality
Production line overview Manufacturing process Quality control procedures
Laboratory Equipment
Testing laboratory equipment Quality testing instruments
Shipping & Logistics
Shipping and packaging process
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in surge protection products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What's your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
