|Place of Origin:||China|
|Model Number:||BRPV3-1000 T1|
|Minimum Order Quantity:||10 piece / pieces|
|Packaging Details:||EXPORT PACKING|
|Delivery Time:||15-20 days after payment|
|Supply Ability:||50000 pieces per month|
|Features:||Waterproof And Dustproof||Test Standards:||EN61643-11 / EN50539-11|
|Classification:||Type 1+Type 2||Shipping Term:||TNT DHL FEDEX EMS UPS|
|Fault Indication:||Green / Red||Ucpv:||1000V|
|Protection Level Up:||≤4.0kV||Where Use:||PV System|
Solar Surge Arrester Protection Device,
12.5kA PV Surge Arrester Device,
50ka PV Surge Arrester Device

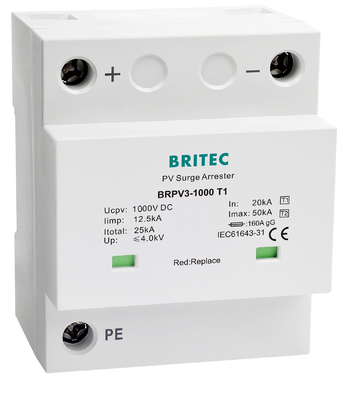

12.5kA Solar PV 20KA-50ka DC 1000V surge protector surge protection spd
DC 1000V surge protector Feature:
DC surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
DC 1000V surge protector Product Details:
|BRPV3 1000 T1|
|SPD classification according to EN61643-11||Type 1+Type 2|
|SPD classification according to EN50539-11||Class I+Class II|
|Max. continuous operating dc voltage Ucpv||1000V|
|Lightning impulse current (10/350us) Iimp||12.5kA|
|Nominal discharge current (8/20us) In||20kA|
|Max. discharge current (8/20us) Imax||50kA|
|Voltage protection level [(DC+/DC-)→PE] Up||≤4.0kV|
|Response time tA||≤25ns|
|Operating temperature range Tu||-40℃-80℃|
|Operating state / fault indication||green / red|
|Cross-section area (Min.)||4mm2|
|Cross-section area (Max.)||35mm2|
|For mounting on||35mm Din rail|
|Enclosure material||Thermoplastic UL94-V0|
|Degree of protection||IP20|
DC 1000V surge protector Dimension:
1. Indicator window is obvious (green is OK, red indicates failure)
2. Fully enclosed terminal
Why need surge arrester?
Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
We got CB, CE, TUV,RoHS Certificate:
|Payment Term||T/T||EXW||30% T/T in advance, paid the balance before shipment.|
|CIF||30% T/T in advance, paid the balance against copy of B/L.|
|L/C||L/C amount above 50,000 usd, we can accept L/C at sight.|
|Paypal||Amount lower than 5000usd.|
|Delivery Time||15-30 days after receiving deposit.|
Q1: How long is your products warranty?
A: The warranty period of our products is 5 Years.
Q2: How about inspection?
A: We have the whole inspection system from raw material to end products.
Q3: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
