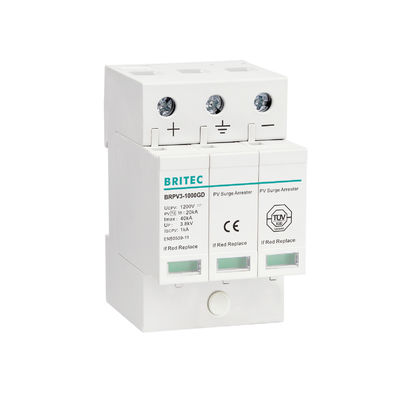

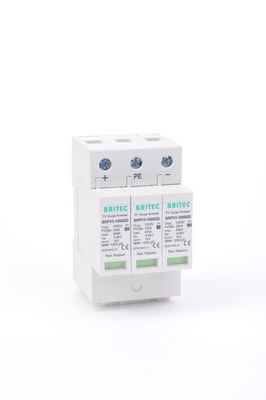

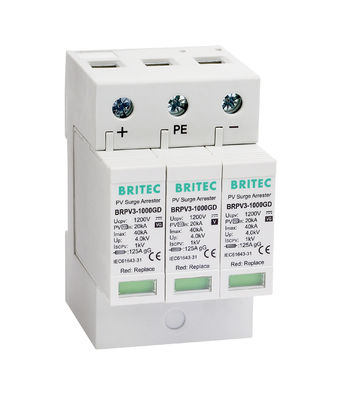

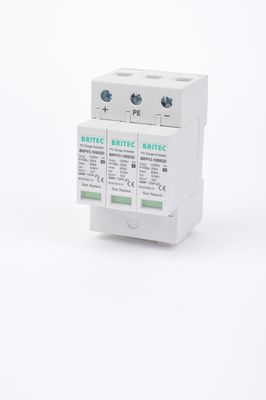

GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV

GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV

  • GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV
  • GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV
  • GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV
  • GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV
GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/UL/CB/CE/ROHS/ISO9001
Model Number: BRPV3-1000GD
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-20 days after payment
Supply Ability: 10000 per week
Contact Now
Detailed Product Description
Item: Dc Surge Protection Device Certificate: CE,CB,IEC
EU Category: Type 2 Mounting Type: DIN Rail: 35 Mm
Ucpv: 1200V Response Time (ta) Ns: 25
MOQ: 10 Pc Warranty: 3 Years
Ambient Temperature Range °C: -40 To 80
High Light:

GDT 1000V DC Surge Protection Device

,

35mm DC Surge Protection Device

,

Spd PV DC Surge Protection Device

GDT 1000V Solar SPD BRPV3-1000GD DC surge protection device surge protector

GDT 1000V Solar SPD Feature:

• Pluggable modular multi-pole PV SPD.

• Din rail mountable.

• EU Category: Type 2.

• Flame retardant PC shell

• Status indication as standard.

• Remote signaling contact: optional.

• Protective Elements: High Energy MOV.

• Complies with IEC61643-11 and EN61643-11.

• Mode of Protection: (DC+) – PE, (DC-) – PE, (DC+) – (DC-).

• This series’ working voltage covers 500V, 600V, 800V and 1000V 1500V.

• Built-in over current and over heat, temperature control open circuit technology.


GDT 1000V Solar SPD Product Details:
GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV 0

   BRPV3 1000 GD
SPD classification according to EN61643-11 Type 2
SPD classification according to EN50539-11 Class II
Max. continuous operating dc voltage                            Ucpv 1200V
Nominal discharge current (8/20us)                                    In 20kA
Max. discharge current (8/20us)                                     Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                         Up ≤4.0kV
Response time                                                                             tA ≤25ns
Operating temperature range                                             Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                Thermal plastic UL94-V0
Degree of protection IP20


GDT 1000V Solar SPD Dimension:

GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV 1




GDT 1000V Solar SPD Advantage:

● For equipotential bonding of positive and negative busbars of photovoltaic systems and elimination of transient

overvoltage that originates during the atmospheric discharges or switching processes.

● For Photovoltaic protection against surges at the boundaries from lightning protection.


Our Services:


• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.


Why need surge arrester?


Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility. The use of adapted surge protections is then highly recommended.


Installation instruction:


• Mount the SPD on 35 mm DIN rail.
• The SPD is placed in parallel between the energized conductors and ground.
• The selected SPD must be specifically designed, rated and approved for application on dc PV voltages.


Company profile:

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV 2

GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV 3

Our certificate:
We got CB, CE, TUV,RoHS Certificate:

GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV 4

Payment:

   Payment Term    T/T       EXW          30% T/T in advance, paid the balance before shipment.
FOB
CIF    30% T/T in advance, paid the balance against copy of B/L.
L/C    L/C amount above 50,000 usd, we can accept L/C at sight.
   Paypal       Amount lower than 5000usd.
Delivery Time    15-30 days after receiving deposit.


GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV 5

Factory:
GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV 6

GDT 1000V Type 2 DC Surge Protection Device 35 Mm Solar Spd PV 7

FAQ:


1.Why solar systems need surge protection?

Solar arrays, like all electronic devices, are prone to surges in voltage that can harm components and increase downtime. Surge protection devices can help keep systems running and profitable.



2. Which type SPD is this?

This is Type 2. Which means Permanently connected SPDs intended for installation on the load side of the service disconnect overcurrent device, including SPDs located at the branch panel.



3. What is the IP rating of this?

This is IP 20. ie; finger-safe construction
