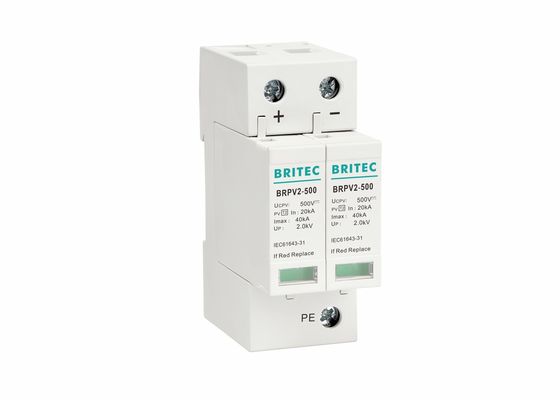

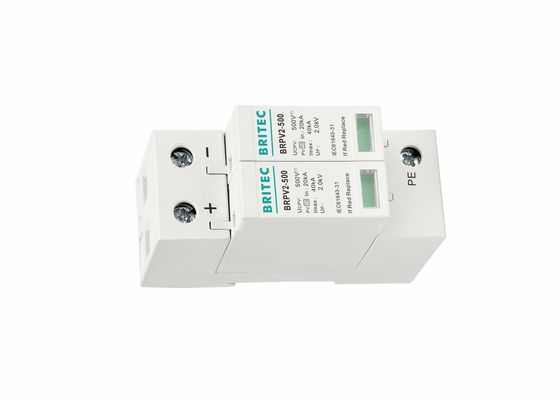

40kA Solar DC Surge Arrester Protective Device 500Vdc SPD 2Poles

40kA Solar DC Surge Arrester Protective Device 500Vdc SPD 2Poles

  • 40kA Solar DC Surge Arrester Protective Device 500Vdc SPD 2Poles
  • 40kA Solar DC Surge Arrester Protective Device 500Vdc SPD 2Poles
40kA Solar DC Surge Arrester Protective Device 500Vdc SPD 2Poles
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRPV2-500
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Norminal Discharge Current(In): 20kA Rated Voltage: 500V
Warranty: 2 Years Protective Element: SPD Class II
Type: DC SPD Item Name: DC Pv Surge Protector
Material: Thermoplastic UL94-V0 Pole Number: 2P
Tu: -40℃-80℃ Standard: IEC61643-31
High Light:

Solar DC Surge Arrester

,

40kA Surge Arrester

,

500Vdc DC Surge Arrester

40kA Solar DC Surge Arrestor 500Vdc SPD 2Poles Surge Protective Device Surge Arrester​



40kA Solar DC Surge Arrestor 500Vdc SPD Feature:

BRPV surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
SPD is designed to limit transient overvoltage of atmospheric origin and divert current waves to earth, so as to limit the amplitude of this overvoltage to a value that is not hazardous for the electrical installation and electric switch gear, control gear and etc.
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection.
DC surge protection device is protect against DC power line system and other equipment from over voltage and instantaneous over voltage damage.
Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
Widely used in Photovoltaic combiner box, power inverter, DC distribution cabinet etc.
High energy MOVs equipped with specific thermal disconnector and related failure indicators.



40kA Solar DC Surge Arrestor 500Vdc SPD Product detail:



2 Mod BRPV2-500
SPD classification according to EN61643-31 Type 2
SPD classification according to IEC61643-31 Class II
Max. continuous operating dc voltage                     Ucpv 500V
Nominal discharge current (8/20us)                              In 20kA
Max. discharge current (8/20us)                               Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                   Up ≤2.0kV
Response time                                                              tA ≤25ns
Operating temperature range                                       Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                   Thermoplastic UL94-V0
Degree of protection IP20



Dimension:



40kA Solar DC Surge Arrester Protective Device 500Vdc SPD 2Poles 0



40kA Solar DC Surge Arrestor 500Vdc SPD Installation:

1. Do power off when connect surge protection device to system.
2. Ground wire should be as short, straight and thick as possible to reduce the influence of distributed inductance on lightning discharge.
3. No need special maintenance. When the surge protector fails, power off and change new surge protector module is fine.

40kA Solar DC Surge Arrestor 500Vdc SPD Advantage:

• No leakage.
• Failure status indicator.
• Convenient replacement.
• High discharge capacity.
• Fast clamp response, under 25ns.
• State-of-the-art surge protection technology.



Certificate:



40kA Solar DC Surge Arrester Protective Device 500Vdc SPD 2Poles 1



Factory photos:



40kA Solar DC Surge Arrester Protective Device 500Vdc SPD 2Poles 2



About Us:



Britec, a SPD manufacturer in China, which was founded in 2003. Main Products are AC surge arrester, PV (solar) surge protection, data surge protector, LED lightning protective device etc.



40kA Solar DC Surge Arrester Protective Device 500Vdc SPD 2Poles 3



FAQ:



Q1. How about the warranty?
  A: All products are Original new and have 2 years warranty.



Q2: What about the delivery time?
  A: Normally 20 days after recieved the payment.



Q3: What about the shipment?
  A: We can arrange shipment by DHL, FedEx, UPS, TNT, EMS with competitive price, of course, customers can also use their own freight forwarders.



Q4: How about the terms of payment?
  A: We accept T/T, Paypal etc.
