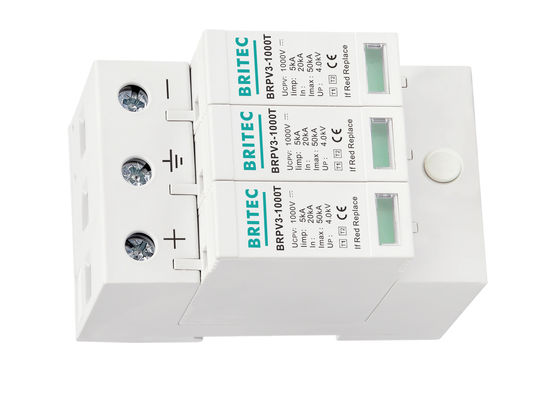

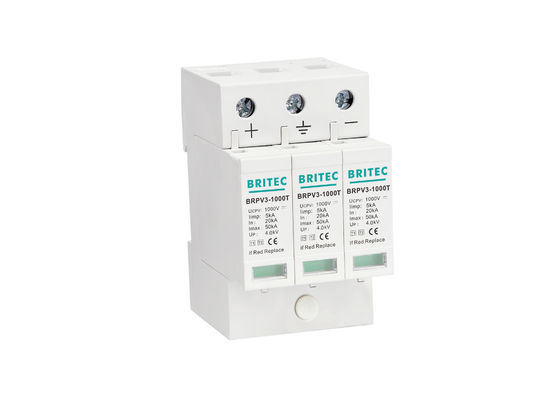

DC Type PV Surge Arrester Thermalplastic 1+2 SPD 3P 5kA Surge Protection Device 1000v

DC Type PV Surge Arrester Thermalplastic 1+2 SPD 3P 5kA Surge Protection Device 1000v

  • DC Type PV Surge Arrester Thermalplastic  1+2 SPD 3P 5kA Surge Protection Device 1000v
  • DC Type PV Surge Arrester Thermalplastic  1+2 SPD 3P 5kA Surge Protection Device 1000v
DC Type PV Surge Arrester Thermalplastic  1+2 SPD 3P 5kA Surge Protection Device 1000v
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV3-1000T
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Uc: 1000VDC Pole: 3P
Type: PV (solar) Class: Type 1+2
Iimp: 5kA Imax: 50kA
TA: ≤25ns Material: Thermalplastic UL94-V0
OEM/ODM: Welcome, 17 Years Factory Protection Dagree: IP20
High Light:

DC Type PV Surge Arrester

,

5kA Surge Protection Device

,

Thermalplastic DC PV Surge Arrester


DC Type 1+2 SPD 3P 5kA Surge Protection Device 1000v Surge Protect Surge Protective Device



DC Type 1+2 SPD 3P 5kA Surge Protection Device Description:

- Own developed technology to manufacture MOV
- Working voltage: 1000V
- Thermal disconnect device for each individual connector
- Lightning impulse current (10/350us): 5kA
- Normal discharge current (8/20us) In: 20kA
- Max. discharge current (8/20us) Imax: 50kA
- Mechanical status indication for the individual arresters
- With or without floating remote indication contact
- Din rail mountable (35 mm)
- Protection class: B+C
- Designed according to IEC 61643-11


DC Type 1+2 SPD 3P 5kA Surge Protection Device Product Details:



  BRPV3-1000T
SPD classification according to EN61643-31 Type 1+2
SPD classification according to IEC61643-31 Class I &II
Max. continuous operating d.c. voltage                   Ucpv 1000V
Impulse Current by pole                                            Iimp 5kA
Nominal discharge current(8/20μs)                               In 20kA
Max. discharge current(8/20μs)                                Imax 50kA
Voltage protection level                                                Up 4.0kV
Residual Current                                                         Ipe None
Follow current                                                                Ifi None
Max backup fuse 125A gG
Response time                                                              tA 25ns
Operating temperature range                                       Tu -40℃~80℃
Operating state/fault indication Green/Red
For mounting on 35mm Din Rail
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
Enclosure material Thermal plastic UL94-V0
Degree of Protection IP20


Technology characteristic:
DC Type PV Surge Arrester Thermalplastic  1+2 SPD 3P 5kA Surge Protection Device 1000v 0

DC Type 1+2 SPD 3P 5kA Surge Protection Device Application:

BRPV Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection.
Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.

WHY CHOOSE US:

Wenzhou Britec Electric CO., LTD. is a professional manufacturer on R&D and producing on surge protection products. Our company gathered all kinds of high-skilled personals with more than 17 years’ experience. In-house testing lab. Guarantee out-going products quality. Products are certified with TUV, CE and CB approved.


WORKSHOP:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

DC Type PV Surge Arrester Thermalplastic  1+2 SPD 3P 5kA Surge Protection Device 1000v 1


Company Information:


Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


DC Type PV Surge Arrester Thermalplastic  1+2 SPD 3P 5kA Surge Protection Device 1000v 2


Certifications:


Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

DC Type PV Surge Arrester Thermalplastic  1+2 SPD 3P 5kA Surge Protection Device 1000v 3


FAQ:

Q1: Are you factory or trading company?
A: We are professional SPD factory, ISO9001 certified, we have our own mould, R&D, engineer, production, and QC department. Our products have very competitive advantage in price, quality, and lead time.

Q2: How about the pay term?
A: T/T, Paypal etc.

Q3: How about the shipping period?
A: Mass production time is 20 days (depend on your order quantities). Shipping by express is about 7 working days.

Q4: What certifications do you have?
A: We have approved ISO9001, CE, CB, TUV etc.

Q5. Can I add my logo on the products?
A: Yes, OEM and ODM are available for us.
