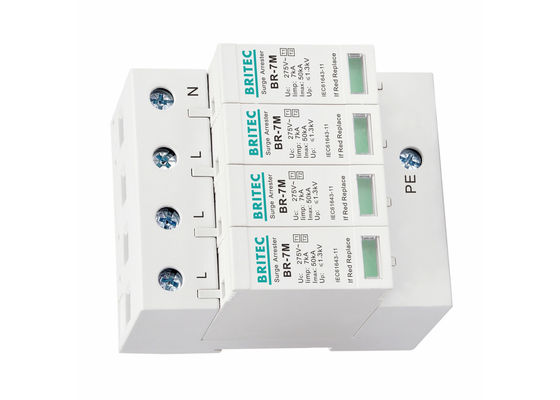

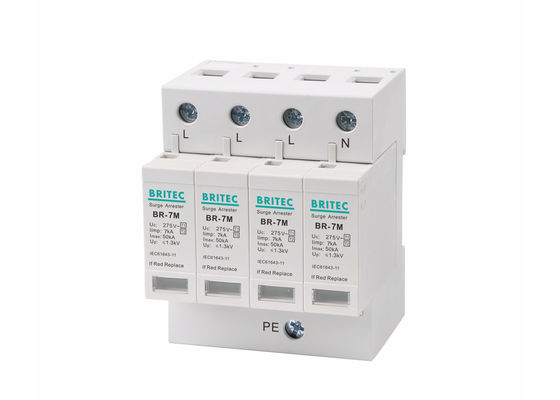

T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V

T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V

  • T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V
  • T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V
T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-7M 275 4P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item Name:: Surge Protection Device Class: B+C
Type: T1+T2 Uc: 275V
Iimp: 7kA In: 20kA
Material: Thermalplastic Pole Number:: 4P
Standard:: IEC61643-11 / EN 61643-11 Protection Class: IP20
High Light:

T1t2 Surge Protector for Thunder Protect

,

4P Lightning T1+T2 Surge Arrester B+C

,

275V T1t2 Surge Protector


T1t2 Surge Protection for Thunder Protect 4P Lightning Arrester 275V Surge Protective Device



T1t2 Surge Protection for Thunder Protect 4P Lightning Arrester Overview:

Model Number: BR-7M 4P
Class I & II combined surge protection device
Product name: surge protection device, surge arrester, spd
Compact DIN rail mount for easy install in the field
Max-Discharge Current: 275V
Visual Indication of fault
Discharge Current: 7KA
Volt-free contacts for remote indication
Protection Level Up:≤1.3KV
2 year no-quibble warranty
Pole: 4P
3 Phase protection device
Operating temperature: -40ºC~+80ºC
Used to protect LV power installations against effects of surges occurring during lightning strikes and induced or switching surges
Certificate: IEC


T1t2 Surge Protection for Thunder Protect 4P Lightning Arrester Characteristics:



  BR-7M 275 4P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage                         Uc 275V
Lightning impluse current (10/350us)                          Iimp 7kA
Nominal discharge current (8/20us) (L-N / N-PE)           In 20kA
Max. discharge current (8/20us) (L-N / N-PE)            Imax 50kA
Voltage protection level (L-N / N-PE)                             Up ≤1.3kV
Response time (L-N / N-PE)                                           tA ≤25ns
Operating temperature range                                         Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material                  Thermal plastic UL94-V0


Dimension:


T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V 0


T1t2 Surge Protection for Thunder Protect 4P Lightning Arrester Features:

Designed for installations in TN-S grids.
The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.
Compliance with standards: IEC61643-11, EN61643-11
High arresting capacity up to 7 kA (10/350μs)
These type 1+2 surge arresters are designed to protect low voltage installations against partial, direct and indirect atmospheric discharges.
Visual status display
Arresters provide protection in the 0A-1 zone in accordance with EN62305 standard.

When to use lightning arresters?

Lightning arresters are designed to prevent lightning or high surges ruin your valued equipment. It can be used in protecting the likes of: Energy supplies, Building installation equipment, Telecommunications, Wind power, Machine-building, Datacenters.

Factory:


T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V 1

Our certifications:

T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V 2

Logistics & payment:

T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V 3T1t2 Surge Protection For Thunder Protect 4P Lightning Arrester 275V 4

FAQ:

Q1: Are you the manufacturer factory or trading company?
  A: We are the manufacturer with professional produce experience on SPD more than 17years.

Q2: Where is your factory located?
  A: Our factory is located in Yueqing city, Zhejiang Province, China.

Q3: How long is the delivery time? What's your fast delivery time?
  A: According to quantity, it would be 20days after comfimation of payment.

Q4: How to agent yours products?
  A: You can purchase the samples for testing, and then you can contact the sales manager to answer more detailed agency questions for you.

Q5: How should I pay for my order ? what is the procession of this purchase?
  A: You can do 30% prepayment at first, then we will start to make production. When the goods is ready, we will take pictures to you, and then you can do the ballance. After we got your payment. We will send the goods to you.
