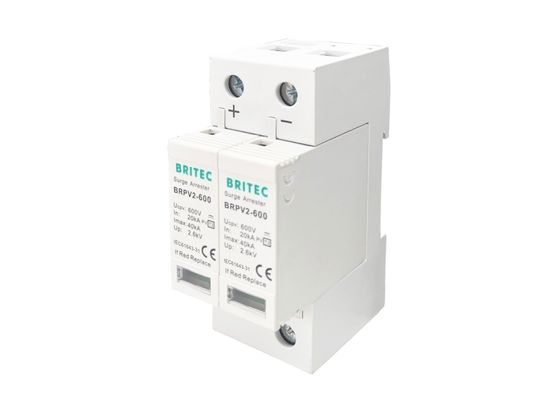

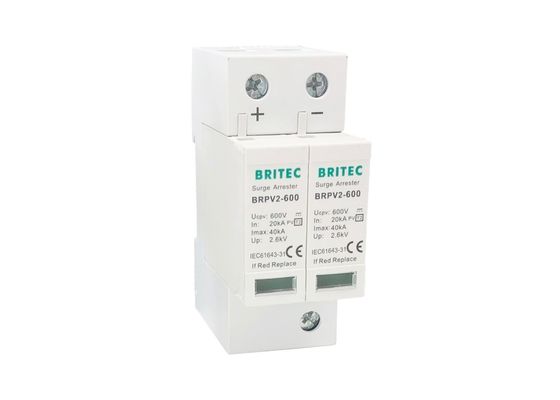

DC600V 2P 40KA Photovoltaic PV Surge Arrester Type 2 Lightning Protector Low Voltage

DC600V 2P 40KA Photovoltaic PV Surge Arrester Type 2 Lightning Protector Low Voltage

  • DC600V 2P 40KA Photovoltaic PV Surge Arrester Type 2 Lightning Protector Low Voltage
  • DC600V 2P 40KA Photovoltaic PV Surge Arrester Type 2 Lightning Protector Low Voltage
DC600V 2P 40KA Photovoltaic PV Surge Arrester Type 2 Lightning Protector Low Voltage
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV2 600
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Product Name: SPD Solar Surge Protector Decive Material: Thermalplastic UL94-V0
Rated Voltage: 600V In: 20kA
Imax: 40kA Up: 2.6kV
Indicated: Normal: Green; Abnormal: Red Respnose Time: 25ns
Class: Type 2 Standard: IEC61643 / EN50539-11
High Light:

Photovoltaic Type 2 Lightning Protector

,

DC600V Type 2 Lightning Protector

,

DC600V PV Surge Arrester

DC600V 2P 40KA Photovoltaic Type 2 Lightning Protector Low-Voltage Lightning Protection Device



About this item DC600V 2P 40KA Photovoltaic Type 2 Lightning Protector:

The installation is simple and convenient to use, which effectively protects electrical appliances.
Response time (ns) : <=25.
DC thunder arrester with practical 600V photovoltaic surge protector
Plug surge protective device.
Prevent the danger of thunder; protect safety, quick response, and good thunder protection effect.
Protective level up (KV): 2.6
Using high quality materials, strong and durable, have a long service life.


DC600V 2P 40KA Photovoltaic Type 2 Lightning Protector Product Details:



  BRPV2 600
SPD classification according to EN61643-11 Type2
SPD classification according to EN50539-11 Class II
Max.continuous operating d.c.voltage            Ucpv 600V
Nominal discharge current(8/20us)                      In 20kA
Max. discharge current(8/20us)                       Imax 40kA
Voltage protection level [(DC+/DC-)→PE]          Up ≤2.6kV
Response time                                                     tA ≤25ns
Operating temperature range                              Tu -40℃-80℃
Operating state/ fault indication green / red
Cross-section area(Min.) 4mm²
Cross-section area(Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermalplastic UL94-V0
Degree of protection IP20
Order Code B8013
Order Code(With remote signal) B8015


Dimension:

DC600V 2P 40KA Photovoltaic PV Surge Arrester Type 2 Lightning Protector Low Voltage 0


DC600V 2P 40KA Photovoltaic Type 2 Lightning Protector Advantage:

Adopting modular design, and its use and maintenance are very simple. The shell of the voltage surge arrester device is made of PC flame retardant material, which is safer to use, with good quality and fine performance, deserving your choice.

According to PV standard EN 50539 and IEC 61643:

The DC SPD complies with PV standard EN 50539-11 and future standard IEC 61643-31: Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications.



Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

DC600V 2P 40KA Photovoltaic PV Surge Arrester Type 2 Lightning Protector Low Voltage 1


Company Information:


Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


DC600V 2P 40KA Photovoltaic PV Surge Arrester Type 2 Lightning Protector Low Voltage 2


Exhibition:


Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

DC600V 2P 40KA Photovoltaic PV Surge Arrester Type 2 Lightning Protector Low Voltage 3


Certifications:


Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

DC600V 2P 40KA Photovoltaic PV Surge Arrester Type 2 Lightning Protector Low Voltage 4


FAQ:

Q1: What is the lead time?
A: Generally it will take about 20 days for production depending on the quantity.



Q2: How long is the warranty of your products?
A: 2-year Warranty.

Q3: Does an arrester have to be replaced after each discharge process?
A: No! Surge arresters are capable of repeatedly discharging lightning currents. This was proven in several laboratory tests and is confirmed by our long-standing field experience.
