| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BRPV2 600 |
| Minimum Order Quantity: | 200 piece / pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pieces per month |
| Product Name: | SPD Solar Surge Protector Decive | Application: | DC System |
|---|---|---|---|
| Rated Voltage: | 600V | In: | 20kA |
| Imax: | 40kA | Indicated: | Normal: Green; Abnormal: Red |
| Item: | PV Surge Arrester | Class: | C |
| IP Level: | IP20 | Standard: | IEC61643 / EN50539-11 |
| High Light: | 600v DC Surge Protection Device,2P DC Surge Protection Device,600v DC Surge Protector |
||

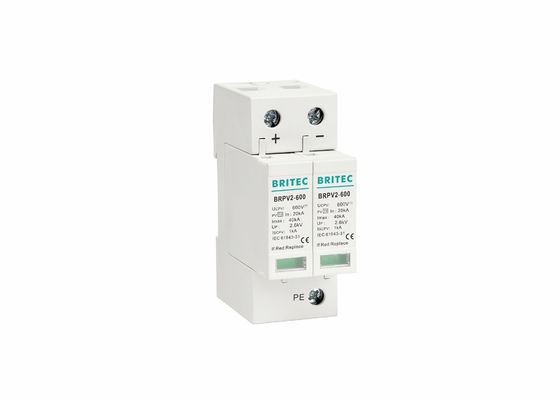

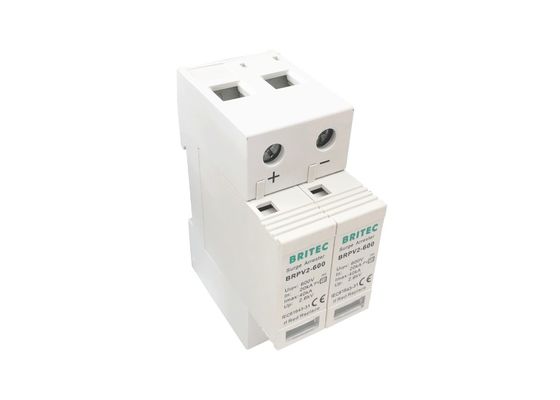

2P DC Class II Surge Protective Devices for Solar Application 600v Surge Protection Device Supplier
2P DC Class II Surge Protective Devices Product Details:
| BRPV2 600 | |
| SPD classification according to EN61643-11 | Type2 |
| SPD classification according to EN50539-11 | Class II |
| Max.continuous operating d.c.voltage Ucpv | 600V |
| Nominal discharge current(8/20us) In | 20kA |
| Max. discharge current(8/20us) Imax | 40kA |
| Voltage protection level [(DC+/DC-)→PE] Up | ≤2.6kV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state/ fault indication | green / red |
| Cross-section area(Min.) | 4mm² |
| Cross-section area(Max.) | 35mm² |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermalplastic UL94-V0 |
| Degree of protection | IP20 |
| Order Code | B8013 |
| Order Code(With remote signal) | B8015 |
Dimension:
Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.
Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.
Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.
FAQ:
Q1: What is the lead time?
A: Generally it will take about 20 days for production depending on the quantity.
Q2: How long is the warranty of your products?
A: 2-year Warranty.
Q3: Does an arrester have to be replaced after each discharge process?
A: No! Surge arresters are capable of repeatedly discharging lightning currents. This was proven in several laboratory tests and is confirmed by our long-standing field experience.
