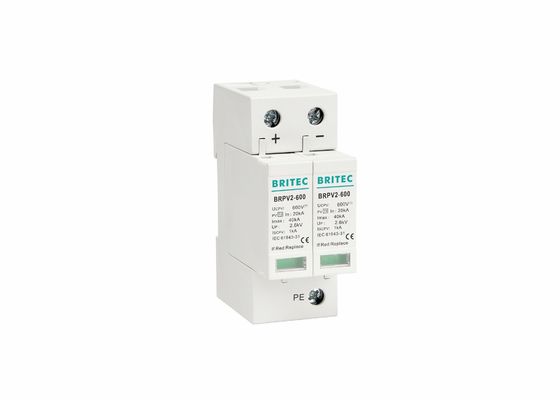

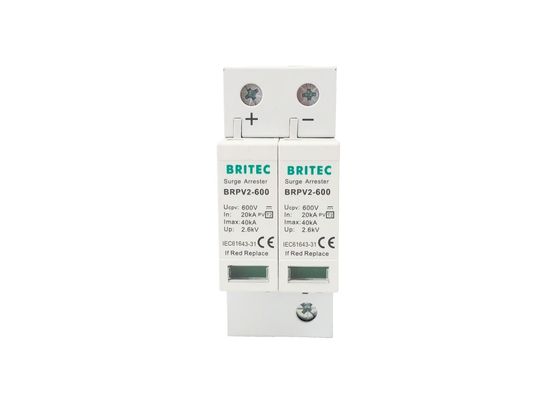

2 Pole 600v Power Spd Surge Protective Device Ce Tuv Brpv 2p 20-40ka Surge Arrester

2 Pole 600v Power Spd Surge Protective Device Ce Tuv Brpv 2p 20-40ka Surge Arrester

  • 2 Pole 600v Power Spd Surge Protective Device Ce Tuv Brpv 2p 20-40ka Surge Arrester
  • 2 Pole 600v Power Spd Surge Protective Device Ce Tuv Brpv 2p 20-40ka Surge Arrester
2 Pole 600v Power Spd Surge Protective Device Ce Tuv Brpv 2p 20-40ka Surge Arrester
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV2 600
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Product Name: SPD Solar Surge Protector Decive Material: Thermalplastic UL94-V0
Rated Voltage: 600V In: 20kA
Imax: 40kA Indicated: Normal: Green; Abnormal: Red
Item: PV Surge Arrester Class: Type 2
For Mounting On: 35mm Din Rail Standard: IEC61643 / EN50539-11
High Light:

600V SPD Surge Protective Device

,

2 Pole SPD Surge Protective Device

,

600V 2 Pole Surge Arrester

2 Pole 600V Power SPD Surge Protective Device CE TUV BRPV 2P 20-40KA Surge Arrester​


2 Pole 600V Power SPD Surge Protective Device Description:

BRPV2-600 PV Surge Protective Device 40KA DC 600V SPD suitable for the new energy wind power generation system.
Consist of varistor and thermal disconnection device
It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.


2 Pole 600V Power SPD Surge Protective Device Product Details:



  BRPV2 600
SPD classification according to EN61643-11 Type2
SPD classification according to EN50539-11 Class II
Max.continuous operating d.c.voltage            Ucpv 600V
Nominal discharge current(8/20us)                      In 20kA
Max. discharge current(8/20us)                       Imax 40kA
Voltage protection level [(DC+/DC-)→PE]          Up ≤2.6kV
Response time                                                     tA ≤25ns
Operating temperature range                              Tu -40℃-80℃
Operating state/ fault indication green / red
Cross-section area(Min.) 4mm²
Cross-section area(Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermalplastic UL94-V0
Degree of protection IP20
Order Code B8013
Order Code(With remote signal) B8015


Dimension:

2 Pole 600v Power Spd Surge Protective Device Ce Tuv Brpv 2p 20-40ka Surge Arrester 0


2 Pole 600V Power SPD Surge Protective Device Features:

Module design, convenient installation, with easy electric maintains operation
Provide more reliable protection
Built-in over current and over heat, temperature control open circuit technology
Green window will change when fault occurs
Adopt independent intelligence property right and high performance sensitivity resistance plates
Type 2 Surge Protection Device
Small creepage current, fast response time, remnant low voltage
When the SPD fails in breakdown for over heat or over-current, the failure release will help electric equipment separate from the power supply system and give the indication signal
With remote connection, can realize remote control

According to PV standard EN 50539 and IEC 61643:

The DC SPD complies with PV standard EN 50539-11 and future standard IEC 61643-31: Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications.



Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

2 Pole 600v Power Spd Surge Protective Device Ce Tuv Brpv 2p 20-40ka Surge Arrester 1


Company Information:


Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


2 Pole 600v Power Spd Surge Protective Device Ce Tuv Brpv 2p 20-40ka Surge Arrester 2


Exhibition:


Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

2 Pole 600v Power Spd Surge Protective Device Ce Tuv Brpv 2p 20-40ka Surge Arrester 3


Certifications:


Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

2 Pole 600v Power Spd Surge Protective Device Ce Tuv Brpv 2p 20-40ka Surge Arrester 4


FAQ:

Q1: What is the lead time?
A: Generally it will take about 20 days for production depending on the quantity.



Q2: How long is the warranty of your products?
A: 2-year Warranty.

Q3: Does an arrester have to be replaced after each discharge process?
A: No! Surge arresters are capable of repeatedly discharging lightning currents. This was proven in several laboratory tests and is confirmed by our long-standing field experience.
