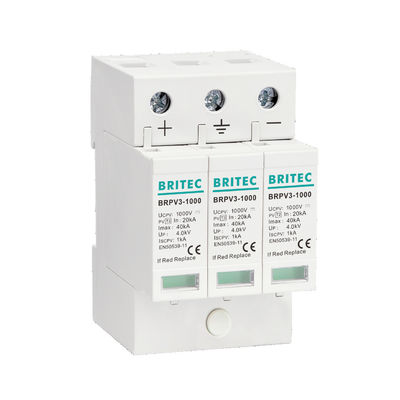

BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device Surge Arrester Lightning Suppressor solar surge arrester

BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device Surge Arrester Lightning Suppressor solar surge arrester

  • BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester
  • BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester
  • BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester
  • BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester
BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/UL/CB/CE/ROHS/ISO9001
Model Number: BRPV3-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-20 days after payment
Supply Ability: 10000 per week
Contact Now
Detailed Product Description
Item: Solar PV Surge Protection Device Function: Lighting Protection
Packing Unit: 1 Pc Warranty: 5 Years
Color: White Version: Plug-in
High Light:

PV 40kA surge protector

,

photovoltaic 40kA surge protector

,

600V photovoltaic surge protector

600V 1000V 40kA 3P dc solar PV surge protection device SPD  Surge Arrester Lightning Suppressor

solar PV surge protection device Feature:
PV Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.

solar PV surge protection device Product Details:
BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester 0

  BRPV3 1000
SPD classification according to EN61643-31Type 2
SPD classification according to EN50539-11Class II
Max. continuous operating dc voltage                            Ucpv1000V
Nominal discharge current (8/20us)                                    In20kA
Max. discharge current (8/20us)                                     Imax40kA
Voltage protection level [(DC+/DC-)→PE]                         Up≤4.0kV
Response time                                                                             tA≤25ns
Operating temperature range                                             Tu-40℃-80℃
Operating state / fault indicationgreen / red
Cross-section area (Min.)4mm2
Cross-section area (Max.)35mm2
For mounting on35mm Din rail
Enclosure material               Thermoplastic UL94-V0
Degree of protectionIP20


solar PV surge protection device Dimension:

BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester 1

solar PV surge protection device Application:

Maximum operating voltage (UCPV) V DC :1000V
Nominal discharge current (8/20 μs) /per module (In) kA: 20kA
Maximum discharge current (8/20 μs) /per module (Imax) kA: 40kA


solar PV surge protection device Advantage:

• Optical status indicator via LED.
• Space-saving enclosure with a width of only four modules for up to 1000 V d.c.
• Operating state / fault indication by green / red indicator flag in the inspection window.


Our Services:


• 20 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.


Why need surge arrester?


Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility. The use of adapted surge protections is then highly recommended.


Installation instruction:


• Mount the SPD on 35 mm DIN rail.
• The SPD is placed in parallel between the energized conductors and ground.
• The selected SPD must be specifically designed, rated and approved for application on dc PV voltages.


Company profile:

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester 2

BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester 3

Our certificate:
We got CB, CE, TUV,RoHS Certificate:

BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester 4

Payment:

   Payment Term   T/T      EXW         30% T/T in advance, paid the balance before shipment.
FOB
CIF   30% T/T in advance, paid the balance against copy of B/L.
L/C   L/C amount above 50,000 usd, we can accept L/C at sight.
   Paypal      Amount lower than 5000usd.
Delivery Time   15-30 days after receiving deposit.


BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester 5

Factory:
BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester 6

BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection device  Surge Arrester Lightning Suppressor solar surge arrester 7

FAQ:

Q1: How long is your products warranty?
  A: The warranty period of our products is 5 Years.

Q2: How about inspection?
  A: We have the whole inspection system from raw material to end products.

Q3: What is the service offered by company?
  A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
