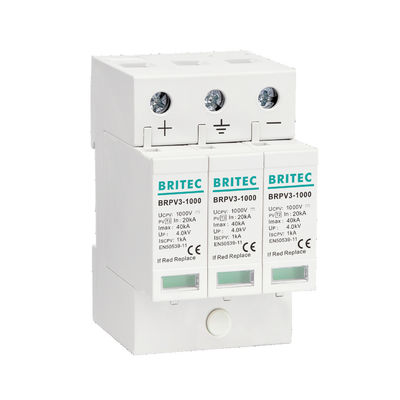

BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection Device Surge Arrester Lightning Suppressor

BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection Device Surge Arrester Lightning Suppressor
BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection Device Surge Arrester Lightning Suppressor
BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection Device Surge Arrester Lightning Suppressor BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection Device Surge Arrester Lightning Suppressor BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection Device Surge Arrester Lightning Suppressor BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection Device Surge Arrester Lightning Suppressor BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection Device Surge Arrester Lightning Suppressor

Large Image :  BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection Device Surge Arrester Lightning Suppressor

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BRPV3-1000
Payment & Shipping Terms:
Minimum Order Quantity: 20Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-20 days after payment
Payment Terms: T/T
Supply Ability: 10000 per week
Contact Now

BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection Device Surge Arrester Lightning Suppressor

Description
Item: Solar PV Surge Protection Device Function: Lighting Protection
Packing Unit: 1 Pc Warranty: 5 Years
Color: White Version: Plug-in
Highlight:

PV 40kA surge protector

,

photovoltaic 40kA surge protector

,

600V photovoltaic surge protector

BRPV3-1000 1000V 40kA 3P DC Solar PV Surge Protection Device
Product Overview
600V 1000V 40kA 3P DC solar PV surge protection device SPD - Surge Arrester Lightning Suppressor
Key Features
  • PV surge protective device for protection against lightning surge voltages in solar systems
  • Parallel installation on DC networks for common and differential mode protection
  • Recommended installation at both ends of DC power supply lines (solar panel side and inverter/converter side)
  • Essential for external and long line routing applications
Technical Specifications
BRPV3-1000 Surge Protection Device
Specification Value
SPD classification according to EN61643-31 Type 2
SPD classification according to EN50539-11 Class II
Max. continuous operating DC voltage (Ucpv) 1000V
Nominal discharge current (8/20μs) (In) 20kA
Max. discharge current (8/20μs) (Imax) 40kA
Voltage protection level [(DC+/DC-)->PE] (Up) ≤4.0kV
Response time (tA) ≤25ns
Operating temperature range (Tu) -40℃ to 80℃
Operating state / fault indication Green / Red
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
Dimensions
BRPV3-1000 Dimensions Diagram BRPV3-1000 Side View BRPV3-1000 Installation View
Key Performance Parameters
Maximum operating voltage (UCPV): 1000V DC
Nominal discharge current (8/20 μs) per module (In): 20kA
Maximum discharge current (8/20 μs) per module (Imax): 40kA
Product Advantages
  • Optical status indicator via LED
  • Space-saving enclosure with width of only four modules for up to 1000V DC
  • Operating state / fault indication by green / red indicator flag in inspection window
Our Services
  • 23 years global leading professional manufacturer of electrical products surge arresters
  • All products well packed before shipping
  • Standard packaging with custom packaging options available
  • Faster delivery times
  • Individually tested prior to shipment
Why Surge Arresters Are Essential
Large single surge events, such as lightning, can reach hundreds of thousands of volts and cause immediate or intermittent equipment failure. Although smaller in magnitude, frequent surges can degrade sensitive electronic equipment. The use of adapted surge protections is highly recommended.
Installation Instructions
• Mount the SPD on 35mm DIN rail
• The SPD is placed in parallel between the energized conductors and ground
• The selected SPD must be specifically designed, rated and approved for application on DC PV voltages
Company Profile
Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs, including AC surge protectors, DC surge protection, LED lighting surge arresters, data surge protective devices and more. Located in Yueqing, Zhejiang, China, we offer convenient transportation, excellent quality and prices, and good service to customers worldwide. Our company culture is "sincere and trustworthy, punctuality, high-quality".
Wenzhou Britec Electric Facility Wenzhou Britec Electric Production
Certifications
We hold CB, CE, TUV, and RoHS Certificates
Product Certifications
Payment Terms
Payment Term Conditions
T/T, EXW 30% T/T in advance, paid the balance before shipment
FOB, CIF 30% T/T in advance, paid the balance against copy of B/L
L/C L/C amount above 50,000 USD, we can accept L/C at sight
PayPal Amount lower than 5000 USD
Delivery Time 15-30 days after receiving deposit
Payment Information
Factory Overview
Factory Facility Production Line Manufacturing Process
Frequently Asked Questions
Q1: How long is your products warranty?
A: The warranty period of our products is 5 Years.
Q2: How about inspection?
A: We have the whole inspection system from raw material to end products.
Q3: What is the service offered by company?
A: We have the professional engineer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
