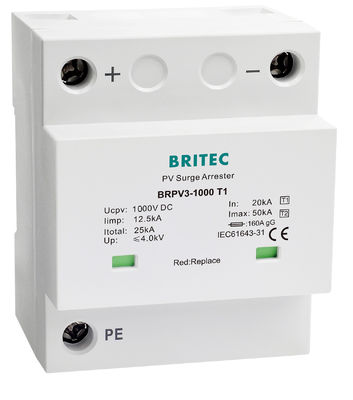

1000V DC 12.5kA Lightning Impulse Type 1+2 Photovoltaic SPD Solar Surge Arrester

12.5kA Solar PV 20KA-50ka DC 1000V surge protector surge protection SPD. Like all outdoor structures, PV installations are exposed to the risk of lightning which varies from region to region. Preventive and arrest systems and devices should be in place.

• Type 1+2 surge protector for photovoltaic systems
• Lightning impulse current (10/350us): 12.5kA
• Max. continuous operating DC voltage: 1000V DC
• EN61643-31 and EN50539-11 compliance

• For use in photovoltaic power supply systems up to 1000 V DC
• Protect against lightning surge voltages in photovoltaic power supply network
• Protect sensitive electronic equipment from destructive transient over voltages originating from lightning strikes and electrical disturbances
• Utilized in protecting photovoltaic systems against both direct and indirect lightning discharges

• Improved life expectancy
• Optical status indicator via LED
• Space-saving enclosure with a width of only four modules for up to 1000 V DC
• Operating state / fault indication by green / red indicator flag in the inspection window

• 20 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, with custom packaging options available
• Faster delivery times
• Individually tested prior to shipment

Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility. The use of adapted surge protections is then highly recommended.

• Mount the SPD on 35 mm DIN rail
• The SPD is placed in parallel between the energized conductors and ground
• The selected SPD must be specifically designed, rated and approved for application on DC PV voltages
