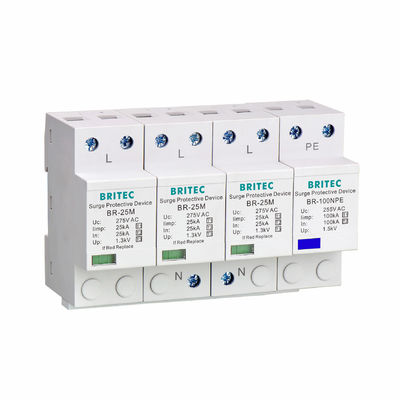

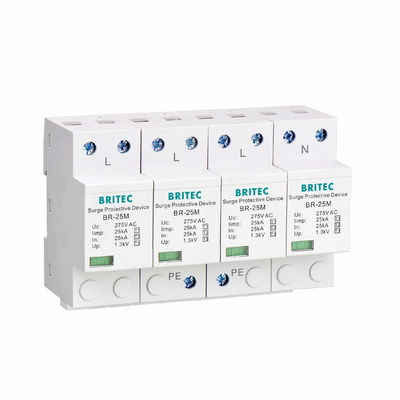

BR-25M 4P 25kA Surge Arrester Type 1 Thunder Arrester SPD

BR-25M 4P 25kA Surge Arrester Type 1 Thunder Arrester SPD

  • BR-25M 4P 25kA Surge Arrester Type 1 Thunder Arrester SPD
  • BR-25M 4P 25kA Surge Arrester Type 1 Thunder Arrester SPD
  • BR-25M 4P 25kA Surge Arrester Type 1 Thunder Arrester SPD
  • BR-25M 4P 25kA Surge Arrester Type 1 Thunder Arrester SPD
BR-25M 4P 25kA Surge Arrester Type 1 Thunder Arrester SPD
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BR-25M 4P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Thunder Surge Protection Device Model Numbers: BR-25M 4P
EN Type: T1 Configuration: AC 275V
Place Of Origin: Wenzhou Response Time: 25ns
Brand Name: BRITEC MOQ: 1PCS
Highlight:

25kA thunder arrester

,

Type 1 thunder arrester

,

25kA power strip protector

25kA surge arrester Type1 thunder surge protection device Power Strip protector





thunder surge protection device Features:



Type 1 SPD can discharge lightning current with waveform 10/350μs. This, if required, will be installed in the primary distribution board at the origin of the electrical installation. A Type 1 SPD does not in itself offer the required protection level and must be used in conjunction with coordinated type 2 devices. An installation with a lightning protection system will require a Type 1 SPD.





thunder surge protection device Technology characteristic:



  BR-25M 4P
Max. continuous operating a.c. voltage                              Uc 275V
Lightning impulse current (10/350us)                              Iimp 25kA
Nominal discharge current (8/20us)                                    In 25kA
Maximum discharge current (8/20us)                             Imax 100kA
Voltage protection level                                                      Up ≤1.3kV
Response time                                                                    tA ≤25ns
Max. backup fuse 315A
Operating temperature range                                             Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards



  IEC 61643-11, EN 61643-11


thunder surge protection device Dimension:



BR-25M 4P 25kA Surge Arrester Type 1 Thunder Arrester SPD 0



thunder surge protection device Application:

Application-optimized and prewired combined lightning current.
• Particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (e.g.: buildings equipped with lightning rods).


thunder surge protection device Certificate:


CB, CE, TUV,RoHS Certificate:


BR-25M 4P 25kA Surge Arrester Type 1 Thunder Arrester SPD 1
