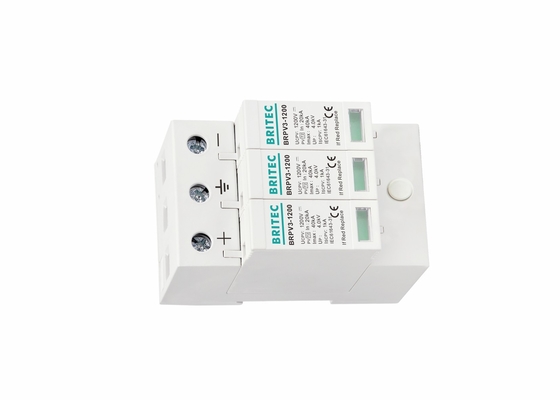

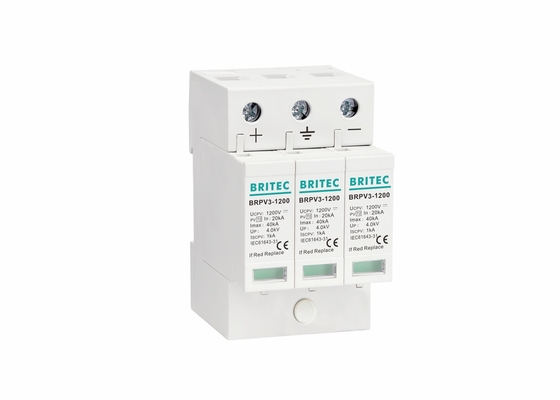

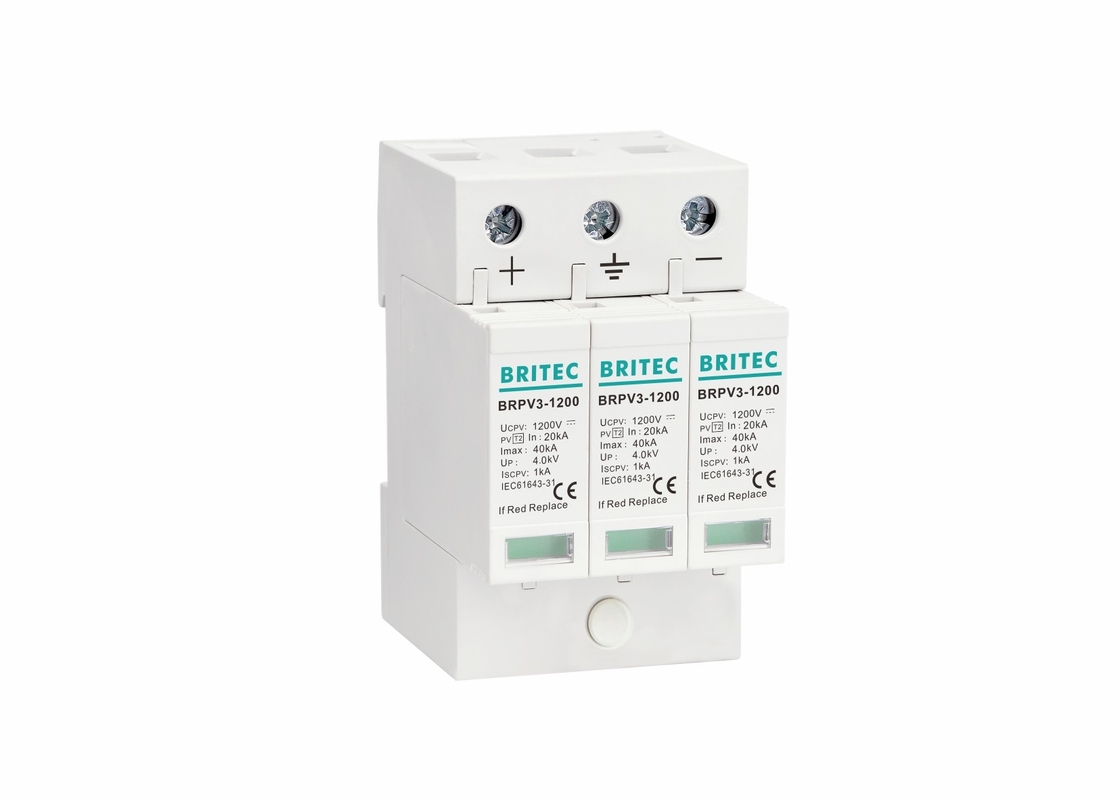

1200V Surge Suppressor 40ka Surge protection TVSS Surge Protector Feature:
- DC surge Protective device specially used for photovoltaic system 1200Vdc.
- Small volume, Pluggable
- The core parts are metal oxide varistor components with high discharge capacity.
- Quick response
- With Reliable control
- Double thermal disconnector devices, providing reliable protection.
- With or without remote signaling contact for control device.
- High flame retardant, anti-corrosion
- Fault indication via red mark in the inspection window.
| 3 Mod |
BRPV3-1200 |
| SPD classification according to EN61643-31 |
Type 2 |
| SPD classification according to IEC61643-31 |
Class II |
| Max. continuous operating dc voltage Ucpv |
1200V |
| Nominal discharge current (8/20us) In |
20kA |
| Max. discharge current (8/20us) Imax |
40kA |
| Voltage protection level [(DC+/DC-)→PE] Up |
≤4.0kV |
| Response time tA |
≤25ns |
| Operating temperature range Tu |
-40℃-80℃ |
| Operating state / fault indication |
green / red |
| Cross-section area (Min.) |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermoplastic UL94-V0 |
| Degree of protection |
IP20 |
Dimension:
1200V Surge Suppressor 40ka Surge protection TVSS Surge Protector Product Introduction:
BRPV3-1200 is designed for use in PV string combiner boxes for generator voltages up to 1200 V and complies with latest EN standards for global application.
1200V Surge Suppressor 40ka Surge protection TVSS Surge Protector Product Details:
• Built-in temperature control circuit technology, high safety performance, no after flow.
• Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish.
• Optional remote monitoring interface can be used for remote monitoring.
• High working voltages, high pass flow, high safety performance and high stability.
• Exclusive devices for photovoltaic systems according to IEC61643-31. Maximum voltage rating 1200 Vdc.
About us:
Wenzhou Britec Electric Co., Ltd. is a professional SPD manufacturer, located in Yueqing, Zhejiang, China, Britec is the specialized manufacturer of low voltage surge protection device. With the advanced facility and technology, we make the first-grade products for our customs. At present, Britec has export and import rights, and our products has been sold to more than 50 countries in the world.
Certificate:
Packing&Shipping:
• Packaging Details: standard cartons.
• Port: Ningbo/Shanghai.
• Delivery Time: 7-10 days after payment for sample order, 15-30 days after payment for big order.
FAQ:
Q1. What advantages do you have?
A: We have good quality products, excellent technical support and service.
Q2. How long is the quality gurantee?
A: Product quality warranty is two years.
Q3. What is the delivery time?
A: Normally, it is about 20 days after payment. It is needs to be negotiated to special requirement orders.
Q4. How about the quality of your product?
A: Before shipping out, we will check for quality, including check the function of products, the appearance, the packing.
Q5. How do you keeping our long-term business and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
