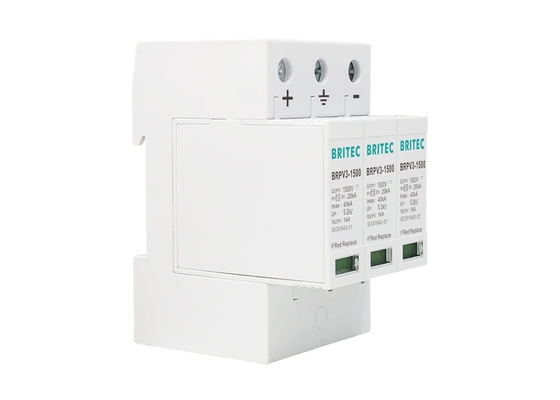

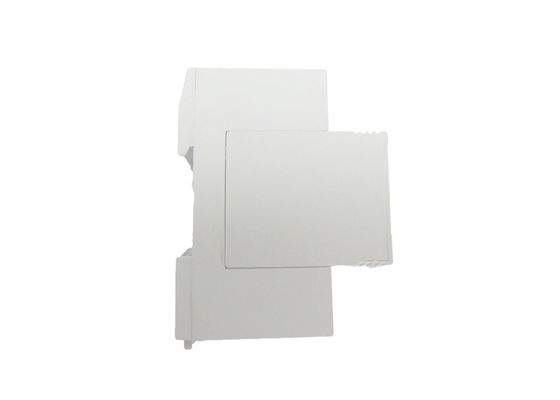

1500V 40ka 3P Class II PV Surge Arrester For Solar Power System

1500V 40ka 3P Class II PV Surge Arrester For Solar Power System

  • 1500V 40ka 3P Class II PV Surge Arrester For Solar Power System
  • 1500V 40ka 3P Class II PV Surge Arrester For Solar Power System
1500V 40ka 3P Class II PV Surge Arrester For Solar Power System
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV3-1500
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: EN61643-31 / IEC61643-31 Ucpv: 1500V
Nominal Discharge Current: 20kA Max. Discharge Current: 40kA
Material: Thermoplastic UL94-V0 TA: ≤25ns
Mounting On: 35mm Din Rail Up: ≤5.2kV
Tu: -40℃...+80℃ Transport: By Air, By Sea Or Express
High Light:

1500V PV Surge Arrester


40ka PV Surge Arrester


1500V PV Surge protector


Class II Solar Power Surge Protection 1500V 40ka 3P Surge protector for Solar system

Class II Solar Power Surge Protection Feature:
BRPV3 series photovoltaic special DC surge protection device (SPD) used in lightning protection of solar photovoltaic power generation system or other Dc power.
BRPV3 series PV Surge Protective Device suitable for the new energy wind power generation system, its working voltage covers 500V, 600V, 800V, 1000V and 1500V.
Green means normal, red to represent the fault, must be replaced and legible.
It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.
Optional remote communication interface, the realization of remote monitoring.
Module design, convenient installation, with easy electric maintains operation
High working voltage, high safety and stability.

Class II Solar Power Surge Protection Product Details:


   BRPV3 1500
SPD classification according to EN61643-31 Type 2
SPD classification according to IEC61643-31 Class II
Max. continuous operating dc voltage                            Ucpv 1500V
Nominal discharge current (8/20us)                                    In 20kA
Max. discharge current (8/20us)                                     Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                         Up ≤5.2kV
Response time                                                                             tA ≤25ns
Operating temperature range                                             Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                Thermoplastic UL94-V0
Degree of protection IP20
Order Code B8018
Order code(With remote signal) B8019

1500V 40ka 3P Class II PV Surge Arrester For Solar Power System 0

Class II Solar Power Surge Protection Introduction:
The product can be pluggable modular design, standard guide installation.
Built-in over current and over heat, temperature control open circuit technology.
Selection of high-quality photovoltaic professional lightning protection devices, stable performance, flow in dual protection circuit.
Easy installation with Din rail mounting.
Visualization window, normal green, red fault.

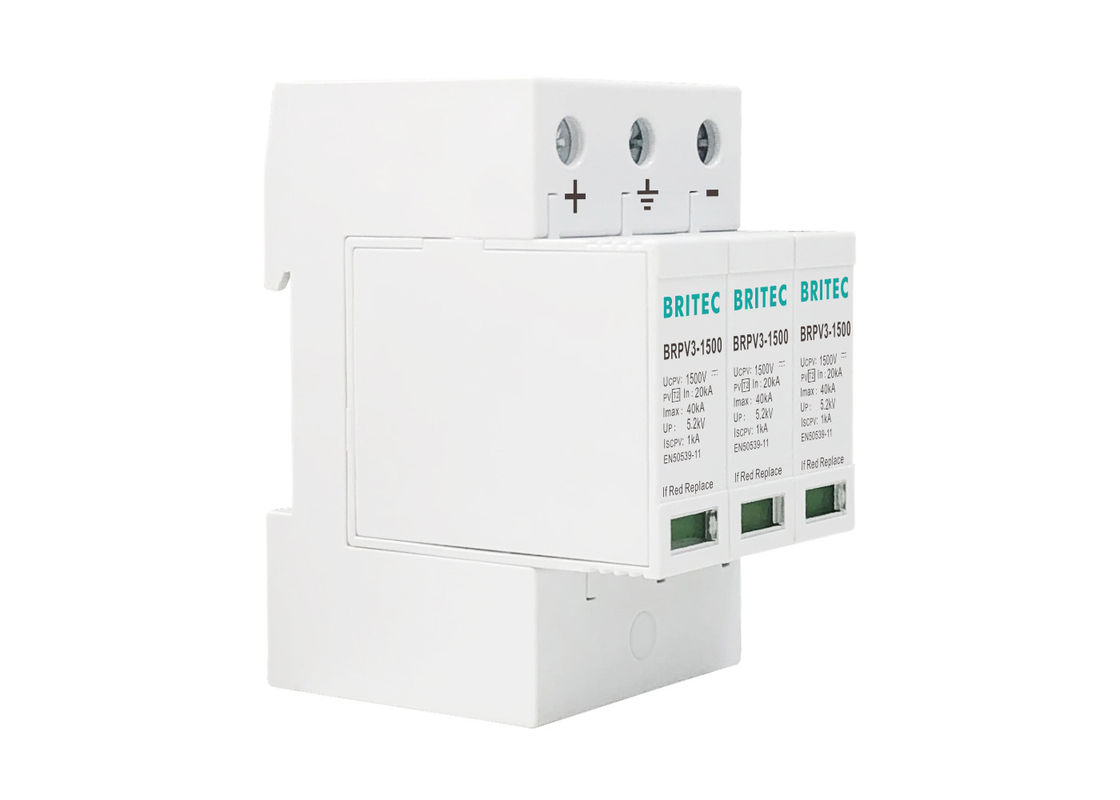

Type 2 DC surge protection devices BRPV3-1500 with 3 plug-in high capacity modules.
Large flow capacity, low residual voltage, fast response (nanosecond).
It is for DC string over voltage protection.
With remote monitoring function, convenient remote monitoring (optional).
Class II Solar Power Surge Protection Installation:
1. Ground wire should be as short, straight and thick as possible to reduce the influence of distributed in distance on lightning discharge.
2. No need special maintenance, when surge protector happens fault, equipment connected to remote sign all will send alarm, then power off and change new SPD mold is fine.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.


Why need pv surge arrester?


• To avoid the disconnecting problem at the end of life of the product on specific high voltage DC PV network and therefore offer a safe and efficient protection to photovoltaic installations, ask for a photovoltaic dedicated surge protective device.
• Reliable surge protection with future-proof performance is a must to maximise system uptime and profitability.
Company information:
Wenzhou Britec Electric Co.,Ltd. concentrates on the research, development and innovation of low voltage surge arrester. Main products and business: AC surge protection, DC power surge protector, data surge protective device, LED lightning arrestor, etc. Our company adheres to the concept of honesty, quality and progress. We are providing the dedicated service to customers according to our rich experience. Willing to go forward hand in hand with you!
1500V 40ka 3P Class II PV Surge Arrester For Solar Power System 1
Our certificate:
1500V 40ka 3P Class II PV Surge Arrester For Solar Power System 2


Q1. How can I place order?

  A: You can contact us by email about your order details.


Q2. How can I pay you?

  A: After you confirm our PI, we will request you to pay. T/T is the most usual ways we are using.


Q3. What is the package of the cable?

  A: Export standards packing, also can according to customer's requirment.


Q4. What is your sample policy?

  A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the express cost.


Q5. Can you produce according to the samples?

  A: Yes, we can produce by your samples or technical drawings.
