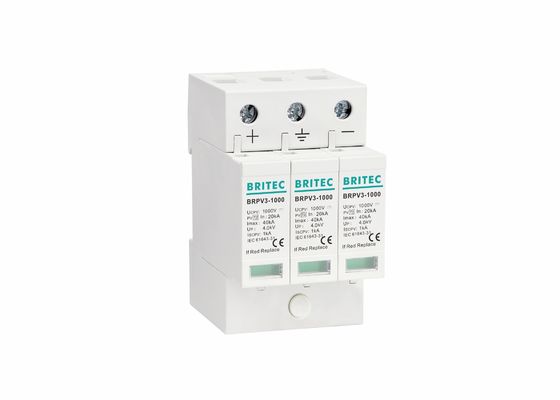

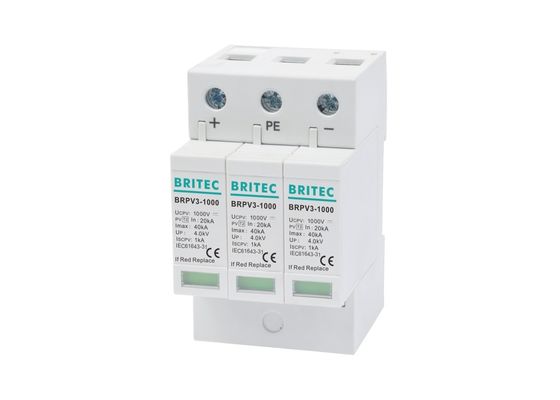

PV SPD 3Pole 1000V Surge Protection CE TUV 20ka 40kA Low-voltage Protector Device
PV SPD 3Pole 1000V Surge Protection General:
1: Safety super wide electrical spacing and creepage distance, high voltages withstand voltage, meet high altitude area use requirement.
2: The Surge Protection Device (DC SPD) attempts to limit the voltage supplied to an electric device by either blocking or shorting current to reduce the voltage below a safe threshold.
3: No load current is considered; plug and pull design, can be charged replacement, easy to maintain.
4: This device is connected in parallel on the power supply circuit of the loads that it has to protect.
5: Built-in temperature control circuit technology, high safety performance, no after flow.
6: This is the most commonly used and most efficient type of overvoltage protection.
7: Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish.
8: The shell is made of PC flame retardant material, fire proof and heat insulation.
9: Optional remote monitoring interface can be used for remote monitoring.
10: Prevent lightning surge voltage in solar system (photovoltaic power supply system)
11: High working voltages, high pass flow, high safety performance and high stability.
PV SPD 3Pole 1000V Surge Protection Product Details:
|| BRPV3 1000
|SPD classification according to EN61643-11
|SPD classification according to EN50539-11
|Max. continuous operating dc voltage Ucpv
|Nominal discharge current (8/20us) In
|Max. discharge current (8/20us) Imax
|Voltage protection level [(DC+/DC-)→PE] Up
|Response time tA
|Operating temperature range Tu
|Operating state / fault indication
||green / red
|Cross-section area (Min.)
|Cross-section area (Max.)
|For mounting on
||35mm Din rail
|| Thermal plastic UL94-V0
|Degree of protection
|Order code(With remote signal)
PV SPD 3Pole 1000V Surge Protection Features:
- For surge protection of photovoltaic (PV) system.
- These units must be installed in parallel on the DC network in order to be protected and to provide common and different mode protection
- The core parts are metal oxide varistor components with high discharge capacity.
- It is recommended to install it at both ends of the DC power supply line (solar panel side and inverter side)/ converter side), especially if the line route is external and long.
- Low residual voltage and quick response.
- The BRPV3-1000 Surge Protection are designed to protect against lightning surge voltages in photovoltaic power supply networks.
- Reliable control.
- The BRPV3-1000 is available for the main operating voltages in photovoltaic: 1000 Vdc.
- With remote signaling contact for control device.
- Fault indication via red mark in the inspection window.
- Protection mode: L+/L- – PE.
Working principle of product:
In the solar photovoltaic system, the inductive or capacitive coupling voltage is caused by the lightning shock and the switching operation of the upstream power supply system. Therefore, the surge may damage the photovoltaic modules and inverters, which will cause serious consequences for the operation of the photovoltaic system. The photovoltaic lightning arrester is specially developed for this purpose. The lightning protection module of the DC power supply, once the high voltage, and endanger the insulation of the protected equipment, the lightning arrester acts immediately, and the high voltage impact current is directed to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so as to protect the power equipment.
