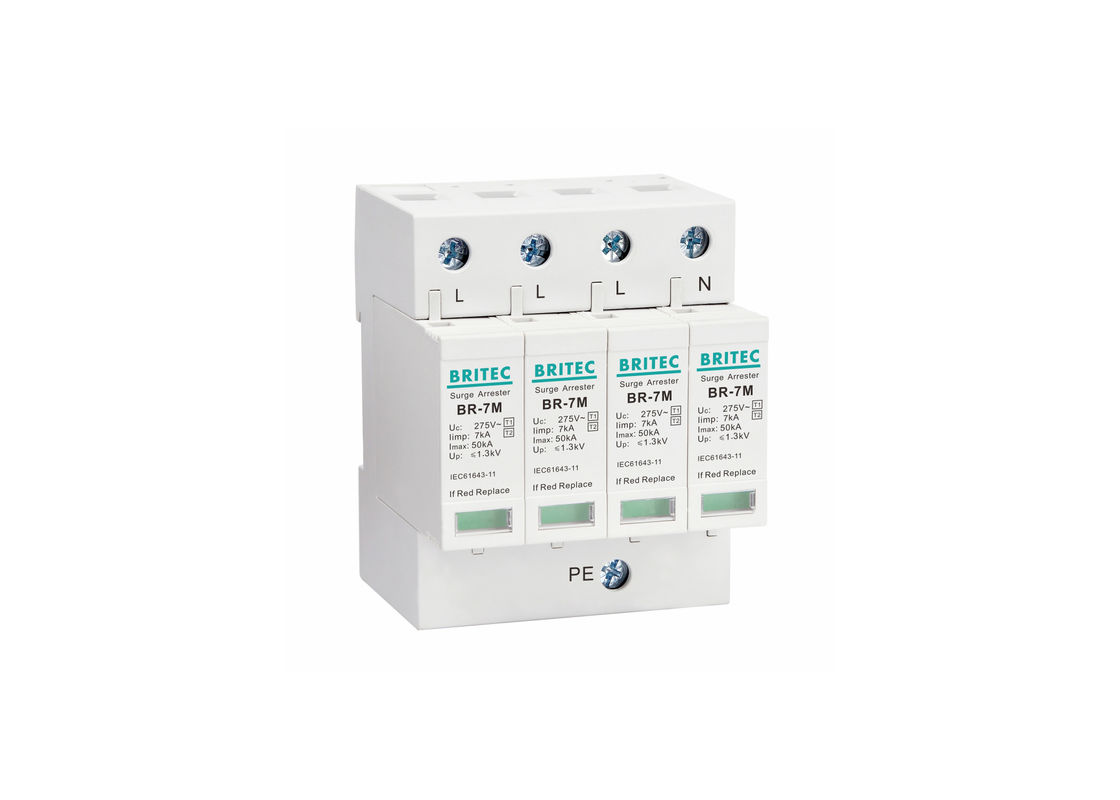

AC Power 7KA 4P 3 Phase Industrial Surge Protectors , 275V Din Rail Mount Arrester

AC Power 7KA 4P 3 Phase Industrial Surge Protectors , 275V Din Rail Mount Arrester

  • AC Power 7KA 4P 3 Phase Industrial Surge Protectors , 275V Din Rail Mount Arrester
  • AC Power 7KA 4P 3 Phase Industrial Surge Protectors , 275V Din Rail Mount Arrester
AC Power 7KA 4P 3 Phase Industrial Surge Protectors , 275V Din Rail Mount Arrester
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-7M 275 4P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item Name:: Surge Protection Device Class: B+C
Uc: 275V Iimp: 7kA
In: 20kA Material: Thermalplastic
Pole Number:: 4P Tu: -40℃-80℃
Standard:: IEC61643-11 / EN 61643-11 Warranty: 2-5 Years
Highlight:

275V Din Rail Mount Arrester

,

7KA Industrial Surge Protectors

,

AC 4P Surge Protectors


AC Power 7KA 4P SPDs 3 Phase Industrial Surge Protectors 275 V Din Rail Mount Arrester


AC Power 7KA 4P SPDs 3 Phase Industrial Surge Protectors Description:

Thermal protection incorporated to eliminate catastrophic failures.
BR-7M 4P is a Modular DIN rail mountable Surge Protective Device (SPD) that is designed for easy installation in existing AC Panel boards and control panels using standard DIN rail mounting brackets.
IP 20 finger-safe protection rating.
Fast response time, high surge current capability, low voltage protection levels.
BR-7M series of SPDs are designed for equipment protection from transient overvoltage events.


AC Power 7KA 4P SPDs 3 Phase Industrial Surge Protectors Characteristics:


  BR-7M 275 4P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage                         Uc 275V
Lightning impluse current (10/350us)                          Iimp 7kA
Nominal discharge current (8/20us) (L-N / N-PE)           In 20kA
Max. discharge current (8/20us) (L-N / N-PE)            Imax 50kA
Voltage protection level (L-N / N-PE)                             Up ≤1.3kV
Response time (L-N / N-PE)                                           tA ≤25ns
Operating temperature range                                         Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material                  Thermal plastic UL94-V0


Technology characteristic:


AC Power 7KA 4P 3 Phase Industrial Surge Protectors , 275V Din Rail Mount Arrester 0


AC Power 7KA 4P SPDs 3 Phase Industrial Surge Protectors Features:

Varistor technology options.
Built-in thermal components disconnect SPD from the power source to avoid thermal runaway conditions.
Visual life indicator (green/no green).
Prevent lightning over-voltage and transient over-voltage power systems and electrical equipment damage, and protection the safety of equipment and users.
35 mm DIN rail, EN60715 compliant

When to use lightning arresters?

Lightning arresters are designed to prevent lightning or high surges ruin your valued equipment. It can be used in protecting the likes of: Energy supplies, Building installation equipment, Telecommunications, Wind power, Machine-building, Datacenters.

Factory:


AC Power 7KA 4P 3 Phase Industrial Surge Protectors , 275V Din Rail Mount Arrester 1

Our certifications:

AC Power 7KA 4P 3 Phase Industrial Surge Protectors , 275V Din Rail Mount Arrester 2

Logistics & payment:

AC Power 7KA 4P 3 Phase Industrial Surge Protectors , 275V Din Rail Mount Arrester 3AC Power 7KA 4P 3 Phase Industrial Surge Protectors , 275V Din Rail Mount Arrester 4

FAQ:

Q1: Are you the manufacturer factory or trading company?
  A: We are the manufacturer with professional produce experience on SPD more than 17years.

Q2: Where is your factory located?
  A: Our factory is located in Yueqing city, Zhejiang Province, China.

Q3: How long is the delivery time? What's your fast delivery time?
  A: According to quantity, it would be 15-30days after comfimation of payment.

Q4: How to agent yours products?
  A: You can purchase the samples for testing, and then you can contact the sales manager to answer more detailed agency questions for you.

Q5: How should I pay for my order ? what is the procession of this purchase?
  A: You can do 30% prepayment at first, then we will start to make production. When the goods is ready, we will take pictures to you, and then you can do the ballance. After we got your payment. We will send the goods to you.
