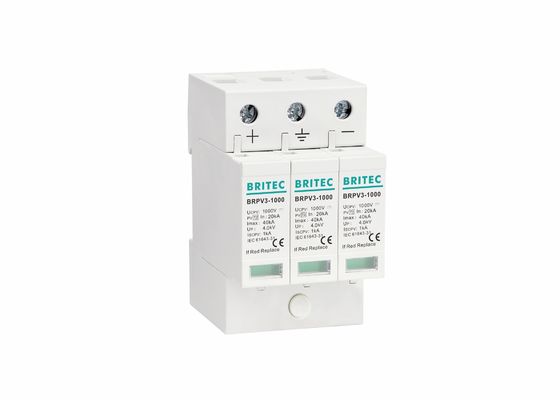

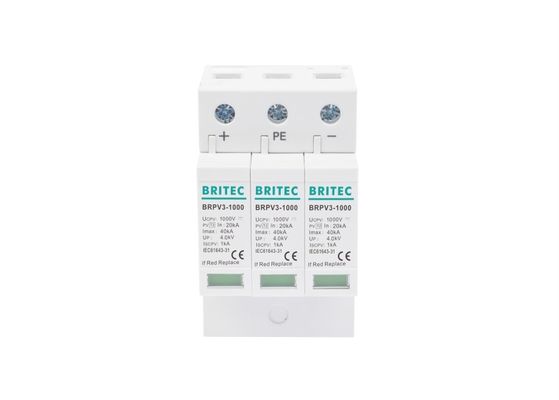

DC 1000V Surge Protection SPD PV Lightning Arrester 40ka Solar Protector
DC 1000V Surge Protection SPD PV Lightning Arrester Feature:
- DC surge arrester specially used for photovoltaic system 1000Vdc.
- Thermal disconnect device
- The core parts are metal oxide vristor components with high discharge capacity.
- quick response
- With Reliable control.
- Low residual voltage, free of leakage current
- With remote signaling contact for control device.
- Easy installation with Din rail mounting
- Fault indication via red mark in the inspection window.
- Plug connectors for quick and easy connection or rewiring
- Type 2/ Class C
DC 1000V Surge Protection SPD PV Lightning Arrester Product Details:
| |
BRPV3 1000 |
| SPD classification according to EN61643-31 |
Type 2 |
| SPD classification according to IEC61643-31 |
Class II |
| Max. continuous operating dc voltage Ucpv |
1000V |
| Nominal discharge current (8/20us) In |
20kA |
| Max. discharge current (8/20us) Imax |
40kA |
| Voltage protection level [(DC+/DC-)→PE] Up |
≤4.0kV |
| Response time tA |
≤25ns |
| Operating temperature range Tu |
-40℃-80℃ |
| Operating state / fault indication |
green / red |
| Cross-section area (Min.) |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermoplastic UL94-V0 |
| Degree of protection |
IP20 |
| Order Code |
B8010 |
| Order code(With remote signal) |
B8012 |
Technology characteristic:
WHY CHOOSE US:
• We are a professional manufacturer on R&D and producing on surge protection products.
• Prompt response: Any inquiries will be replied within 24 hours.
• Our company gathered all kinds of high-skilled personals with more than 10 years’ experience.
• OEM/ODM available.
• In-house testing lab. guarantee out-going products quality.
• 2-5 years warranty.
• Products are certified with TUV, CE.
DC 1000V Surge Protection SPD PV Lightning Arrester Applications:
• PV combiner box
• DC power system
• DC distribution box
• DC switchboard
• Electronic information system box
• Output of second Power equipment
Working principle of product:
In the solar photovoltaic system, the inductive or capacitive coupling voltage is caused by the lightning shock and the switching operation of the upstream power supply system. Therefore, the surge may damage the photovoltaic modules and inverters, which will cause serious consequences for the operation of the photovoltaic system. The photovoltaic lightning arrester is specially developed for this purpose. The lightning protection module of the DC power supply, once the high voltage, and endanger the insulation of the protected equipment, the lightning arrester acts immediately, and the high voltage impact current is directed to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so as to protect the power equipment.
Packaging & Shipping:
Company information:
Wenzhou Britec Electric Co., LTD. a Chinese professional SPD manufacture company. Our company was established in 2003, is China's professional produce low voltage surge arrester of enterprises. Welcome the friends from anywhere in the world, as long as you have about surge protection device demand, please contact us!
Certification:
FAQ:
A: Are you an agent or a factory?
Q: We are a factory.
A: What is the port of exportation for your factory?
Q: Ningbo/Shanghai,China.
A: What’s your main market?
Q: Western Europe, Eastern Europe, northern Europe, southern Europe, Central Europe, East Asia, South Amercia, the Middle East and so on.
A: What’s the MOQ?
Q: Normally 100pcs.
A: Why choose us?
Q: We have rich experience in produce and professional quality control system.
A: Can you let me how to control the quality?
Q: We have our QC team and quality control system, before packaging, we will inspect the goods carefully. We will try our best to make you satisfactory.
A: What’s the payment terms?
Q: 30% deposit, balance before shippment.
A: What’s the mass production lead time?
Q: Usually 20 days after receiving the customer’s deposit.
A: What the certificates do you have?
Q: TUV, CE, CB etc.
