| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BRPV2-600 |
| Minimum Order Quantity: | 200 piece / pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pieces per month |
| Test Standards: | EN61643-31 / IEC61643-31 | Classification: | Class II |
|---|---|---|---|
| Ucpv: | 600V | Rated Short Circuit Breaking Capacity: | 20-40 KA |
| Up: | ≤2.6kV | TA: | ≤25ns |
| Tu: | -40℃...+80℃ | Material: | Thermoplastic UL94-V0 |
| Mounting On: | 35mm Din Rail | Application: | Solar |
| Highlight: | 600VDC DC Surge Protection Device,PV dc power surge protector,600VDC solar dc surge protector |
||

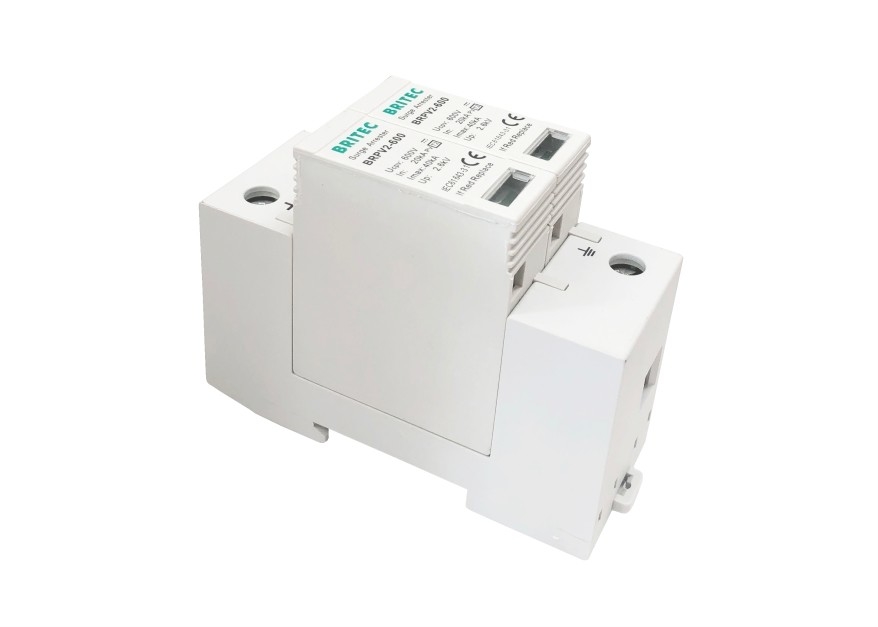

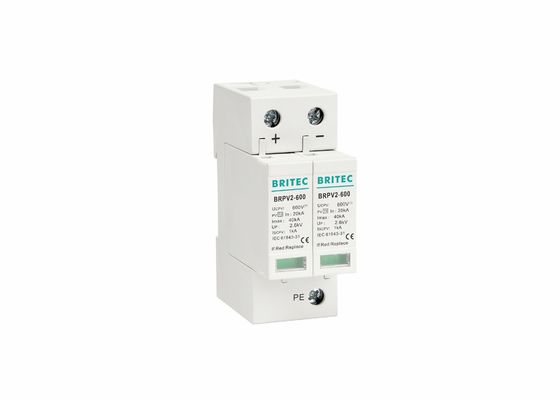

600VDC Solar Surge Protection for PV Installations 40kA per Pole 8/20μs DC Surge Arrestor
600VDC Solar Surge Protection for PV Installations Product Details:
| BRPV2 600 | |
| SPD classification according to EN61643-31 | Type 2 |
| SPD classification according to IEC61643-31 | Class II |
| Max. continuous operating dc voltage Ucpv | 600V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level Up | ≤2.6kV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
| Order Code | B8013 |
| Order code(With remote signal) | B8015 |
Technology characteristic:
Our Services:
• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
Why need pv surge arrester?
Most of the solar modules are very regularly exposed to lightnings and overvoltages, where lighting occurrences are frequent, unprotected PV systems can suffer repeated and significant damage to key components. And these systems represent a significant investment cost, system downtime and the loss of revenue. PV modules, DC cabling, inverters, AC cabling, as well as monitoring systems must all be protecting as part of a in all-inclusive effort to mitigate the damaging effects of lightning and surges. The use of adapted surge protections is then highly recommended.
Certifications:
Company profile:
Wenzhou Britec Electric Co., Ltd is ISO and CE certificated manufacturer, we are suppliers of SPDs. We are specialized in surge protection device. We can offer lightning arrester with specifications and uses according to clients' requirements. Our company has carried out a completed management system of production, scientific research and sales service. Our products are widely used in various electric power stations, electric power plants, factories and electric power systems. Warmly welcome worldwide customers to cooperate with us. You will be deserved with the high qualified products, favorable price, on-time delivery and our best service.
Shipping:
FAQ:
Q: Are you Trading Company or Manufacturing Factory?
A: we are a professional manufacture with 17 years production experience and 15 years export experience.
Q: I am interested in your products, could I get sample?
A: We are glad to offer samples.
Q: How about the Delivery time?
A: It is aboout 20 days.
Q: How can you guarantee the product quality?
A: We have the quality control system, and it's been followed strictly. All product will be inspected before packing for double checking, no matter where our product deliver to, we will be responsible for its quality, customer's satisfaction is very important for us, it matters whether we have next order.
Q: I'd like to know your Payment terms.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. About other payment terms, let's make a specific negotiation according to our order situation.
