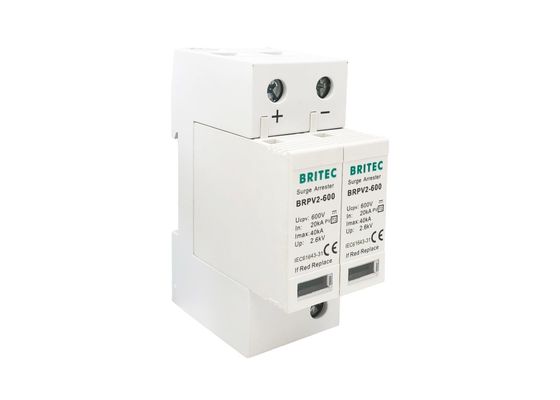

Photovoltaic 600V High Voltage Class II DC 2 Pole SPD IP20 PV Surge Arrester

Photovoltaic 600V High Voltage Class II DC 2 Pole SPD IP20 PV Surge Arrester

  • Photovoltaic 600V High Voltage Class II DC 2 Pole SPD IP20 PV Surge Arrester
  • Photovoltaic 600V High Voltage Class II DC 2 Pole SPD IP20 PV Surge Arrester
Photovoltaic 600V High Voltage Class II DC 2 Pole SPD IP20 PV Surge Arrester
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV2-600
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: EN61643-31 / IEC61643-31 Class: Class II
Ucpv: 600V In: 20kA
Imax: 40kA Up: ≤2.6kV
Pole Number: 2P Tu: -40℃...+80℃
Mounting Support: 35mm Din Rail Application: DC Power System
High Light:

600V PV Surge Arrester

,

2.6kV High Voltage Surge Arrester

,

Photovoltaic PV Surge Arrester


600V Power Surge Protective Device Class II DC 2 Pole SPD IP20 Solar Generator Protector



600V Power Surge Protective Device Class II DC 2 Pole SPD Description:

BRPV2-600 series PV Surge Protective Device 40KA DC 600V SPD suitable for the new energy wind power generation system.
With excellent performance
Its working voltage covers 600V and 1000V.
Remote-control warning device is optional, it makes remote-monitoring easier.
It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.


600V Power Surge Protective Device Class II DC 2 Pole SPD Product Details:


   BRPV2 600
SPD classification according to EN61643-31 Type 2
SPD classification according to IEC61643-31 Class II
Max. continuous operating dc voltage                            Ucpv 600V
Nominal discharge current (8/20us)                                    In 20kA
Max. discharge current (8/20us)                                     Imax 40kA
Voltage protection level                                                      Up ≤2.6kV
Response time                                                                             tA ≤25ns
Operating temperature range                                             Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                Thermal plastic UL94-V0
Degree of protection IP20
Order Code B8013
Order code(With remote signal) B8015


Technology characteristic:

Photovoltaic 600V High Voltage Class II DC 2 Pole SPD IP20 PV Surge Arrester 0


600V Power Surge Protective Device Class II DC 2 Pole SPD Features:

a. Module design, convenient installation, with easy electric maintains operation.
When the SPD fails in breakdown for over heat or over-current, the failure release will help electric equipment separate from the power supply system and give the indication signal
b. Built-in over current and over heat, temperature control open circuit technology.
High voltage withstand voltage, meet high altitude area use requirement
c. Adopt independent intelligence property right and high performance sensitivity resistance plates.
Indicates that the green color of the window is normal and any red indicates failure.
d. Small creepage current, fast response time, remnant low voltage.
Built-in temperature control circuit technology, high safety performance, no after flow.
e. With remote connection, can realize remote control

600V Power Surge Protective Device Class II DC 2 Pole SPD Application:

Designed especially for surge protection of the PV strings; apply to the Photovoltaic power grid-connection system.
It’s applicable to protect circuits of various DC equipments, working for solar photovoltaic generation, from damage caused by lightning surge.


Our Services:


• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.


Why need pv surge arrester?


Most of the solar modules are very regularly exposed to lightnings and overvoltages, where lighting occurrences are frequent, unprotected PV systems can suffer repeated and significant damage to key components. And these systems represent a significant investment cost, system downtime and the loss of revenue. PV modules, DC cabling, inverters, AC cabling, as well as monitoring systems must all be protecting as part of a in all-inclusive effort to mitigate the damaging effects of lightning and surges. The use of adapted surge protections is then highly recommended.


Certifications:

Photovoltaic 600V High Voltage Class II DC 2 Pole SPD IP20 PV Surge Arrester 1

Company profile:


Wenzhou Britec Electric Co., Ltd. is a professional SPD manufacturer, located in Yueqing, Zhejiang, China, Britec is the specialized manufacturer of low voltage surge protection device. With the advanced facility and technology, we make the first-grade products for our customs. At present, Britec has export and import rights, and our products has been sold to more than 50 countries in the world.



Photovoltaic 600V High Voltage Class II DC 2 Pole SPD IP20 PV Surge Arrester 2

Shipping:

Photovoltaic 600V High Voltage Class II DC 2 Pole SPD IP20 PV Surge Arrester 3

FAQ:


Q1: Are you a trading company or factory?

  A: Britec is a factory located in Yueqing, Zhejiang, China. We supply high quality SPD with factory price, and owns export and import rights.



Q2: What product do you manufacture?

  A: We manufacture all kinds of SPDs, including AC surge protector, DC surge protection device, data surge protective device, LED lightning arrester and so on



Q3: What is the payment term?

  A: We accept T/T, Paypal, L/C and so on.



Q4: Do you arrange for shipment to buyer’s country?

  A: Yes, we will arrange for shipment to any place, but all ocean freight and custom declare fee belongs to buyers side. We accept Ex-works in factory, FOB Ningbo, etc.



Q5: What is the delivery time?

  A: It takes about 20 working days usually after receipt of your deposit. If we have some stock, we can give you goods in a short time after confirming your payment. Please feel free to contact us.



Q6: What is your warranty?

  A: Two years.



Q7: Can I use my LOGO ON THE PRODUCTS?

  A: Yes, we accept OEM orders. Please contact us for more details.



Q8: Can I CUSTOMIZE THE PRODUCTS?

  A: Yes, you can. Please contact us for the customization products.



Q9: What is the cost of SHIPPING?

  A: Shipping cost is based on the following elements: Number of packages; Gross Weight; Package volume; Destination port
