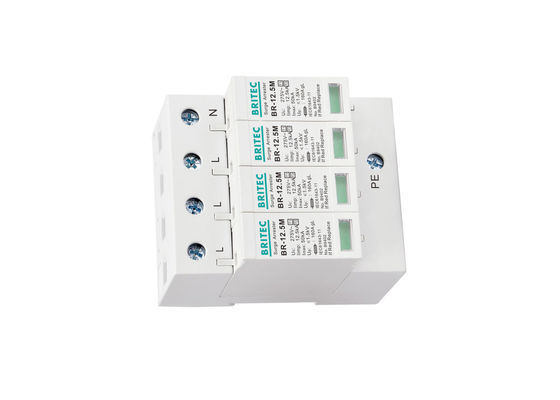

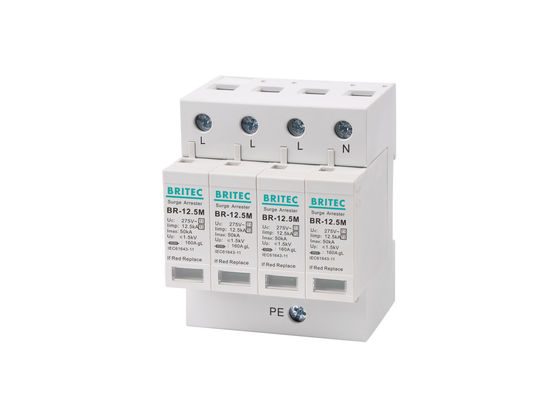

Name: T1+T2 B+C I+II Iimp Combined 4P 12.5kA AC T1+T2 Surge Arrester B+C
Brand: BRITEC
SKU: BR-12.5M-275 4P
Price: 1 USD
Availability: InStock
Rating: 4.9 (112 reviews)

Home Products T1+T2 Surge Arrester B+C

T1+T2 B+C I+II Iimp Combined 4P 12.5kA AC T1+T2 Surge Arrester B+C

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-12.5M-275 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item Name::	Combined Surge Protector	Where To Use:	AC Power System
Standard::	IEC61643-11	Class:	Class B + C
Pole Number::	4P	Iimp:	12.5kA
Color:	White	Warranty:	2 Years
Material::	Thermal Plastic	Transport Package:	Standard Export Carton
High Light:	12.5kA T1+T2 Surge Arrester B+C , 4P T1+T2 Surge Arrester B+C , 12.5kA ac surge arrester

T1+T2 B+C I+II Iimp 12.5kA Surge Protective Device 3 Phase Suppressor

T1+T2 B+C I+II Iimp 12.5kA Surge Protective Device Description:

• AC Surge Protection Device SPD Type 1+2, T1+T2, B+C, I+II, Iimp 12.5 kA is developed as the best solution available to protect service entrance at industrial sites, especially those with existing lightning protection systems or meshed cage applications.

• This AC power surge protection device is designed to meet all your surge protection needs for any low voltage installation.

• This type of surge protection can protect all electrical installations against lightning strikes by discharging the current created from a lightning surge and keeping it from spreading to the equipment.

• This DIN rail mounted surge protector is easy to install in any standardized distribution pane or control cabinets.

• The Type 1+2 / Class B+C, I+II SPD has a 10/350 μs current waveform.

• It is equipped with a thermal disconnection device and provide real-time fault indicators thus allowing complete operational safety.

T1+T2 B+C I+II Iimp 12.5kA Surge Protective Device Product Details:

	BR-12.5M-275 4P
SPD classification according to EN 61643-11	Type 1 + Type 2
SPD classification according to IEC 61643-11	Class I + Class II
Max. continuous operating a.c. voltage Uc	275V
Lightning impluse current (10/350us) Iimp	12.5kA
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	50kA
Voltage protection level Up	≤1.3kV
Voltage protection level 5kA Up	≤1.0kV
Max. backup fuse	160A gG
Response time tA	≤25ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20

Technology characteristic:

T1+T2 B+C I+II Iimp 12.5kA Surge Protective Device Application:

• It protects the sensitive lines from the damage caused by lightning induction voltage, power interference, and electrostatic discharge and so on.

• Surge protection device are suitable for lightning and surge protection in AC 50/60Hz, 220/380V.

• The housing is installed on the 35mm electric rail, and it can be applied to three-phase power supply line.

T1+T2 B+C I+II Iimp 12.5kA Surge Protective Device Product features:

- Class I+II / Type 1+2 surge protection device.

- Use the pluggable module set up, the maintenance is simple

- The core parts are metal oxide vristor components with high discharge capacity.

- Own developed technology to manufacture MOV

- Low residual voltage and quick response.

- Din rail mountable (35 mm)

- Reliable control thanks to Thermo Dynamic Control disconnector.

- It has the characteristics of low residual pressure, sensitive reaction, stable performance, reliable work and so on.

- With remote signaling contact for control device.

- It's designed according to GB18802.1 IEC61643-1

- Fault indication via red mark in the inspection window.

T1+T2 B+C I+II Iimp 12.5kA Surge Protective Device Working principle:

Under normal working condition, the lightning protection module is in a high resistance state. When the power supply line has lightning invasion or operation transient overvoltage, the lightning protection module will immediately pass through the response speed of nanosecond level, and limit the lightning overvoltage or transient overvoltage to the voltage range allowed by the electrical equipment, thus protecting the normal operation of the electronic equipment. After that, the lightning protection module quickly returns to the high impedance state without affecting the normal power supply of the grid

Installation:

Install in the main distribution cabinet/box of the low-voltage cabinet and the incoming line cabinet.

About Shipping:

1. DHL / UPS / FedEx / TNT, Door-to-Door.
2. By Air or by Sea, for FCL/LCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
4. We choose the best and safe packaging material to make sure your orders won’t be damaged during delivery.

T1+T2 B+C I+II Iimp Combined 4P 12.5kA AC T1+T2 Surge Arrester B+C 1

Company information:

Wenzhou Britec Electric Co., Ltd. founded in 2003. After 17 years developing, Britec has become a professional surge protection products supplier who is focusing on offering excellent ONE-STOP service. Our ONE-STOP concept is not only supplying the whole range of products which are needed by customers with competitive price, but also with reliable quality and stable delivery time. With our experienced team, we are helping customers with different kinds of solutions on their projects. Now we have more than 50 customers from more 21 countries around the world. Our codes of conduct is to win-win with our customers based on our loyal service, so we can be your best partner in China. Welcome to visit our company and it will be a great honor that we can get your precious suggestion to us. Any demand or interest to SPDs, please do not hesitate to contact us for more detail information. Thank you!

T1+T2 B+C I+II Iimp Combined 4P 12.5kA AC T1+T2 Surge Arrester B+C 2

Certificate:

FAQ:

Q1: What is lead time for samples and mass production?

A1: Samples usually takes 7days if material in stock; Inventory: Can be shipped out within 3day; Mass production: at 20days.

Q2: Can the sample charge be refunded or deducted from the payment for goods?

A2: Yes, the sample fee will refund once the order placed.

Q3: Can you do a custom logo on the products?

A3: Yes, we can print your logo in our products.

Q4: Can you do a custom package we want?

A4: Yes, we can, the MOQ is usually 500pcs per design. For more information, please kindly contact our salesman.

Q5: Can we order the color we want?
