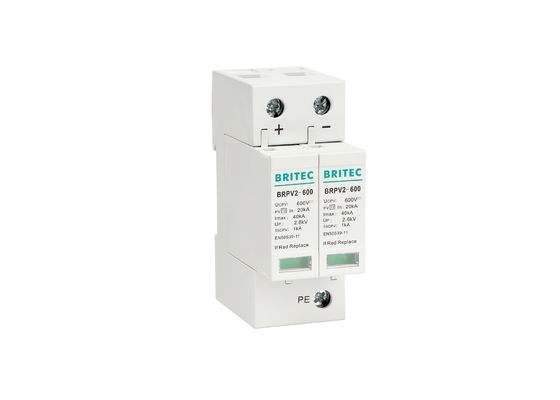

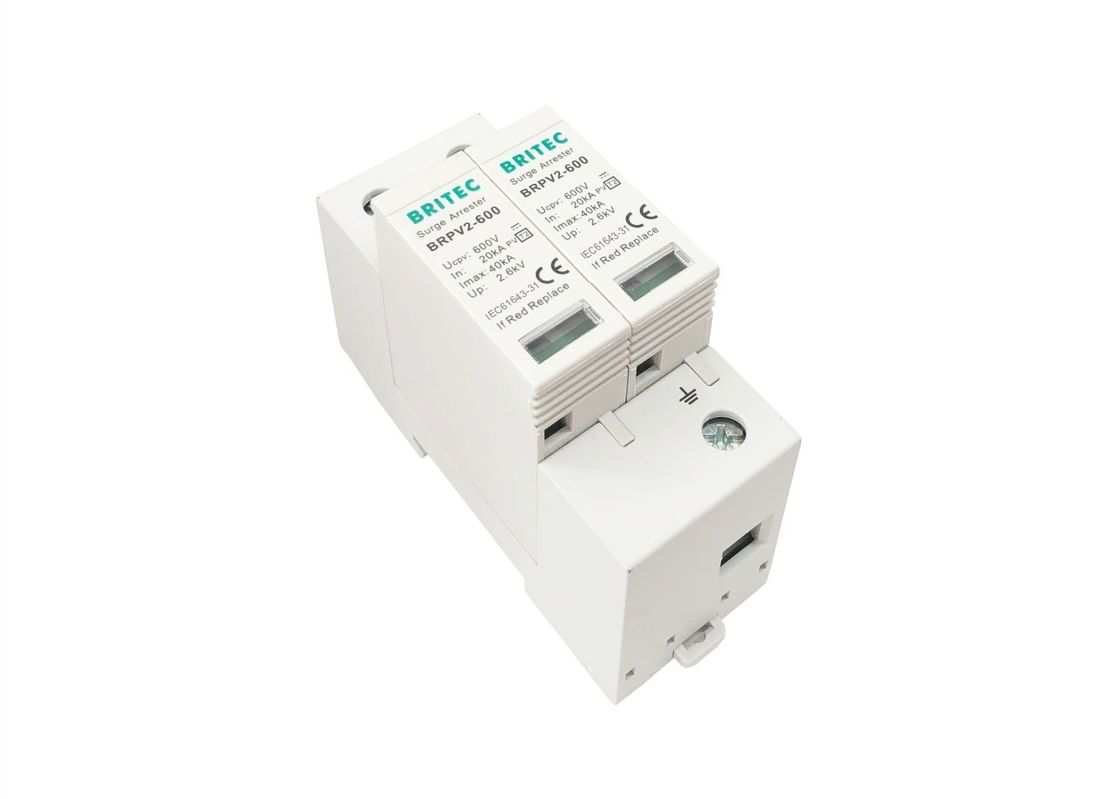

Name: 40kA PV SPD Type 2 600VDC Solar Panel Surge Protector Surge Protection Device
Brand: BRITEC
SKU: BRPV2-600
Price: 1 USD
Availability: InStock
Rating: 4.7 (124 reviews)

Home Products PV Surge Arrester

40kA PV SPD Type 2 600VDC Solar Panel Surge Protector Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRPV2-600

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	EN61643-31 / IEC61643-31	Class:	Type 2
Application:	PV Solar Panel Power System	Ucpv:	600VDC
In:	20kA	Imax:	40kA
Up:	≤2.6kV	TA:	≤25ns
Tu:	-40℃...+80℃	Item:	Surge Protector
High Light:	600VDC solar panel surge protector , 600VDC solar surge protection device , 40kA solar surge protector

PV Type 2 600VDC Surge Protection Device Solar Arrester Plastic Double Pole 20-40 kA

PV Type 2 600VDC Surge Protection Device Product description:

• DC or PV power surge protector

• The device is compliant with PV standard IEC61643-31.

• DIN Rail Mountable.

• The protection method is high energy Varistor.

• These are high energy MOVs equipped with specific thermal disconnections and related failure indicators.

• The color of visible window shows operating status: Green (normal) / Red (abnormal)

• Type 2 surge protector

• Nominal Discharge Current : 20ka

• Maximum Discharge Current : 40ka

• Max. DC Volts : 600 Vdc

• Protection Level : 2.6kv

• Pluggable module

• Remote signaling (option)

PV Type 2 600VDC Surge Protection Device Product Details:

	BRPV2 600
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	600V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level Up	≤2.6kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Order Code	B8013
Order code(With remote signal)	B8015

Technology characteristic:

PV Type 2 600VDC Surge Protection Device Application:

• BRPV surge protector series is suitable for the new energy solar photovoltaic power generation systems or other dc power supply system of lightning protection, the maximum continuous operating voltage DC 500V, 600V, 800V, 1000V.
• The din rail mounted SPD is widely used in solar combiner boxes to protect the solar panels and inverters from surges in voltage and lightning.
• Specially for Solar Application
• This surge protection device, protect against lightning surge voltages in solar system.

PV Type 2 600VDC Surge Protection Device Installation instruction:

• Installation position in the dc power supply system, always of lightning current and lightning current directly or indirectly other instantaneous overvoltage protection.
• These units must be installed in parallel on the DC network and provide common and different modes of protection.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.

Why need pv surge arrester?

Most of the solar modules are very regularly exposed to lightnings and overvoltages, where lighting occurrences are frequent, unprotected PV systems can suffer repeated and significant damage to key components. And these systems represent a significant investment cost, system downtime and the loss of revenue. PV modules, DC cabling, inverters, AC cabling, as well as monitoring systems must all be protecting as part of a in all-inclusive effort to mitigate the damaging effects of lightning and surges. The use of adapted surge protections is then highly recommended.

Certifications:

Company profile:

Wenzhou Britec Electric Co., Ltd. is a professional SPD manufacturer, located in Yueqing, Zhejiang, China, Britec is the specialized manufacturer of low voltage surge protection device. With the advanced facility and technology, we make the first-grade products for our customs. At present, Britec has export and import rights, and our products has been sold to more than 50 countries in the world.

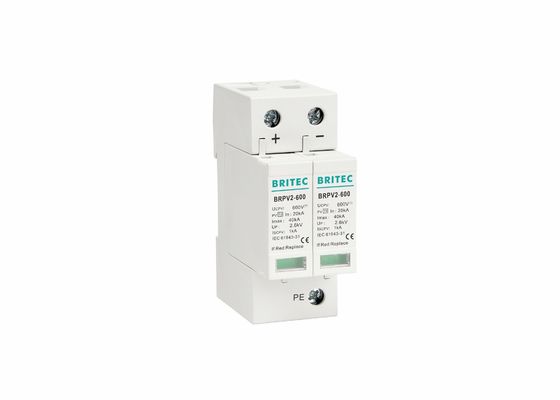

40kA PV SPD Type 2 600VDC Solar Panel Surge Protector Surge Protection Device 2

Shipping:

FAQ:

Q: Are you Trading Company or Manufacturing Factory?
A: we are a professional manufacture with 17 years production experience and 15 years export experience.

Q: I am interested in your products, could I get sample?
A: We are glad to offer samples.

Q: How about the Delivery time?
A: It is aboout 20 days.

Q: How can you guarantee the product quality?
A: We have the quality control system, and it's been followed strictly. All product will be inspected before packing for double checking, no matter where our product deliver to, we will be responsible for its quality, customer's satisfaction is very important for us, it matters whether we have next order.

Q: I'd like to know your Payment terms.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. About other payment terms, let's make a specific negotiation according to our order situation.
