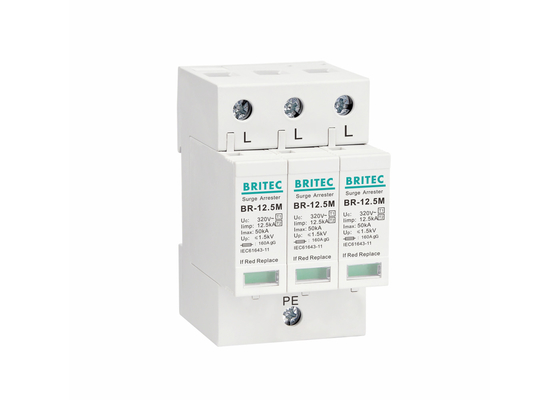

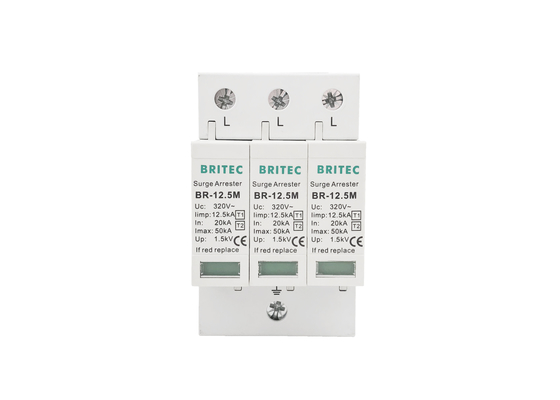

Name: AC Networks Flame Retardant UL94-V0 3P T1+T2 Surge Arrester B+C
Brand: BRITEC
SKU: BR320-12.5M 3P
Price: 40 USD
Availability: InStock
Rating: 4.9 (184 reviews)

Home Products T1+T2 Surge Arrester B+C

AC Networks Flame Retardant UL94-V0 3P T1+T2 Surge Arrester B+C

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR320-12.5M 3P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Price:	USD 40-80 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	T/T
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Pole Number:	3P	Item Name:	Surge Protection
Standard:	GB18802.1 IEC61643-1.	Class:	Class I+II
Type:	Type 1+2	Material:	Thermal Plastic UL94-V0
Uc:	320V AC	Iimp:	12.5kA
Rail:	35mm	Product Name:	Surge Protective Device
High Light:	3P T1+T2 Surge Arrester B+C , 3P surge suppression devices , UL94-V0 T1+T2 Surge Arrester B+C

UL94-V0 Plastic 3P Class I + II Electrical Surge Protective Device

The BR-12.5M series Surge Protection are designed to protect against lightning surge voltages in ac power supply networks. These units must be installed in parallel on the AC networks to be protected and provide common and differential modes protection. The BR-12.5M series is available for the main operating voltages in ac power supply: 150v/275v/320v.

Electrical Surge Protective Device Feature:

1) High energy surge protection, 25ns response speed.
2) Remote alarm interface.
3) High flame retardant, anti-corrosion.
4) Pluggable module design.
5) The built-in flash interrupter device.

Electrical Surge Protective Device Details:

	BR-12.5M-320 3P
SPD classification according to EN 61643-11	Type 1 + Type 2
Protection class	Class I + Class II
Pole number	3P
Rated Voltage(max. continous voltage) Uc	320V
Lightning impluse current (10/350us) Iimp	12.5kA
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	50kA
Voltage protection level Up	≤1.5kV
Max.Back up fuse	160A
Response time tA	≤25ns
Power supply system	3 phases TN-C system
Technology	MOV
Format	Plug-in modular
Operating Environment Tu	-40 degree to + 80 degree
Operating state / fault indication	green / red
Cross-section area	4mm²~35mm² solid
Installation	35mm Din rail
Protection degree	IP20
Material of outer covering	Thermal plastic UL94-V0
OEM	Yes
Remote contacts	Available
Dimension	3mods
Width of one pole	18mm

Dimension:

Electrical Surge Protective Device Application:

Type 1+2 surge protective spd Uc 275V Iimp 12.5KA Imax 50KA 35mm rail installation Surge Protective Device is widely used in mobile communication base stations. Microwave Communications Bureau/Station. Telecommunications room. Industrial mining. civil aviation. financial. Securities and other power systems. Such as power distribution stations, power distribution rooms, power distribution cabinets. Switch box and other various equipment that is important and vulnerable to lightning strikes.

Packaging & Shipping:

Delivery method: we can offer the door to door services by air/ by sea, just depend on your actual request. Such as DHL, UPS, TNT, FedEx; and the sea transportations.

Delivery time: 20 working days after your payment.

Package: Carton.

Payment: T/T, or Contact us.

Our Services:

1. Warranty is 2years, from the shipping date. The shipping cost will be on clients' side.
2. If the product is defective when received, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.
4. Track the delivery until you get it; Replace the defect product in your next order.

Company Information:

Wenzhou Britec Electric Co.,Ltd. located in China, is specialized in research, development, production and sales of SPDs which include AC surge protector, DC surge protection device, data surge protective device, Led lightning arrester etc.

Certification:

FAQ:

Q1. Why choose us?
A1. Our Products have Various style and high quality. We accept sample order, we have reliable quality assured with low factory direct price. We also offer service of printing customer’s logo.

Q2. Can I choose color?
A2. Yes, different color is available.

Q3. How can I see your PRIC LIST?
A3. Please contact us by E-mail, we will send you our price.

Q4. Can I get a discount?
A4. Yes. For big order and frequent customers.

Q5. How long does a sample order takes?
A5. Normally within 7 days.

Q6. About Payment
A6. Accept T/T, Paypal etc.

Q7. About Shipment
A7. Samples can be shipped out within 7 days. Shipped by TNT/EMS/UPS/DHL/FEDEX or Air/Sea shipment which depends on your choice.

Q8. About Warranty Policy
A8. All products are 100% new and original. Every product has passed QC inspection before shipment. We offer two years warranty for all products.
