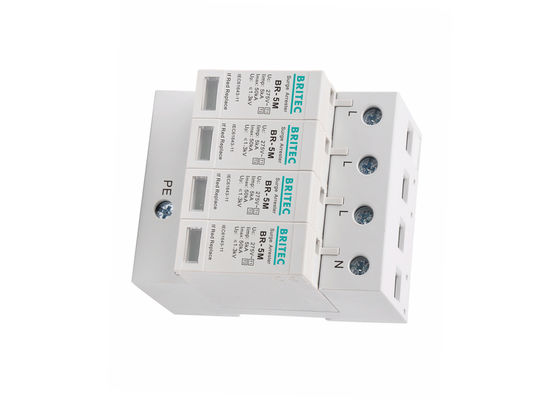

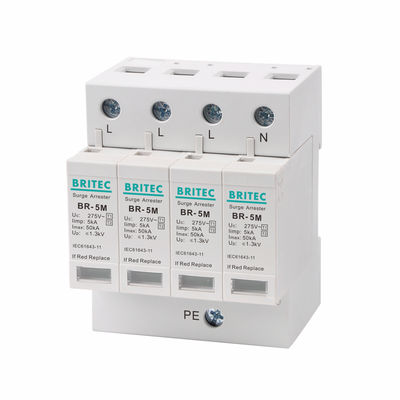

Lightning and Surge Arrester TYPE 1+2 Module Design IEC Standard BR-5M 4p 5kA Low Voltage Surge Protector

Lightning and Surge Arrester TYPE 1+2 Module Design IEC Standard BR-5M 4p 5kA Low Voltage Surge Protector
Lightning and Surge Arrester TYPE 1+2 Module Design IEC Standard BR-5M 4p 5kA Low Voltage Surge Protector Lightning and Surge Arrester TYPE 1+2 Module Design IEC Standard BR-5M 4p 5kA Low Voltage Surge Protector

Large Image :  Lightning and Surge Arrester TYPE 1+2 Module Design IEC Standard BR-5M 4p 5kA Low Voltage Surge Protector

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-5M 275 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: T/T
Supply Ability: 100000 Piece/Pieces Month
Contact Now

Lightning and Surge Arrester TYPE 1+2 Module Design IEC Standard BR-5M 4p 5kA Low Voltage Surge Protector

Description
Model Number: Protection Against Lightning And Transient Overvoltage In Low-voltage Power Systems Tu: IEC/EN 61643-11
Class: Class I+II Iimp: 5kA
Pole Number: 20kA Maximum Discharge Current (Imax): 50kA
Uc: 275V AC Item Name: 50/60Hz
Applicable Grounding Systems: TN-S Protection Modes:: L-PE/N-PE
Highlight:

5kA low voltage surge protector

,

5kA surge suppressor breaker

,

BR-5M low voltage surge protector

Lightning and Surge Arrester TYPE 1+2 Feature:


• BR-5M range is a lightning and surge arrester according to EN 61643-11 ed.2 (IEC 61643-11:2011) consisting of high energy varistors.
• This spd is module design, nice sealing performance, matched remote signal interface and faulty indicator window, installed in 35mm DIN rail, easy to wire.
• Its parameters enable usage in buildings with considerable levels of protection LPL III and LPL IV, such as small administration complexes, residential buildings, family houses or properties and halls without the incidence of persons and indoor equipment.
• Different specification satisfy, easy to maintain, could supply different working voltage level and lightning discharge current, also could customized according to different requirement.
• The device is to be installed on the interface of LPZ 0 – LPZ 1 and higher zones according to standard EN 62305 ed.2 (IEC 62305:2010), closest to where overhead line enters the building i.e. in the main distribution boards.

Lightning and Surge Arrester TYPE 1+2 Product Details:

Model Technical Parameters BR-5M-275 4P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Protection modes 4P
Max. continuous operating a.c. voltage                     Uc 275V
Lightning impluse current (10/350us)                      Iimp 5kA
Nominal discharge current (8/20us)                            In 20kA
Max. discharge current (8/20us)                             Imax 50kA
Voltage protection level                                              Up ≤1.3kV
Response time                                                            tA ≤25ns
Power supply system 3 phases TN-S system
Technology MOV
Format Plug-in modular
Operating EnvironmentºC                                          Tu -40℃—80℃
Relative humidity(25ºC) ≤95%
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
Installation Standard Rail 35mm
Protection degree IP20
Material of Outer Covering                    Thermoplastic UL94-V0
OEM Yes
Remote Signalling Optional
Frequency 50Hz to 60Hz


Dimension:


Lightning and Surge Arrester TYPE 1+2 Module Design IEC Standard BR-5M 4p 5kA Low Voltage Surge Protector 0

Lightning and Surge Arrester TYPE 1+2 Advantage:

In parallel module type surge protective device has large lightning current discharge capacity, large circulation.

Company introduction:


Wenzhou Britec Electric Co., Ltd. is a professional company specialized in SPDs. Combining the R&D, production and sales of surge protection device. Equipped with excellent production technology, strong technology strength and the excelsior professional dedication. Established a good reputation all over the world.



Lightning and Surge Arrester TYPE 1+2 Module Design IEC Standard BR-5M 4p 5kA Low Voltage Surge Protector 1


Workshop:

Lightning and Surge Arrester TYPE 1+2 Module Design IEC Standard BR-5M 4p 5kA Low Voltage Surge Protector 2

Certificate:

Lightning and Surge Arrester TYPE 1+2 Module Design IEC Standard BR-5M 4p 5kA Low Voltage Surge Protector 3

Shipping:

Lightning and Surge Arrester TYPE 1+2 Module Design IEC Standard BR-5M 4p 5kA Low Voltage Surge Protector 4
FAQ:


Q1: What is your term of packing?

  A: Generally, we pack our goods in white boxes then in cartons. Goods can also be packed according to your requirements.



Q2: What is your term of delivery?

  A: EXW, FOB, CFR, CIF, which is negotiale.



Q3: Can you produce according to my samples?

  A: Yes, OEM/ODM is no problem.



Q4: Do you test all your goods before delivery?

  A: Yes, we have 100% test before delivery.
