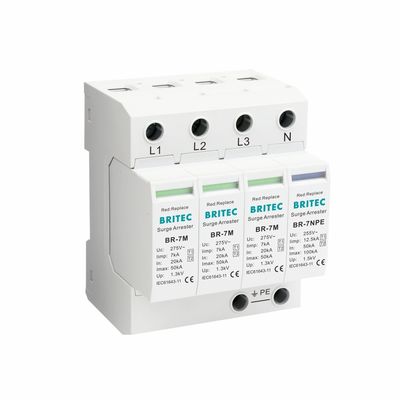

AC Surge Protector Protection AC SPD 3P+NPE 275V Iimp:7kA House Lightning Protective Low-Voltage Arrester Device

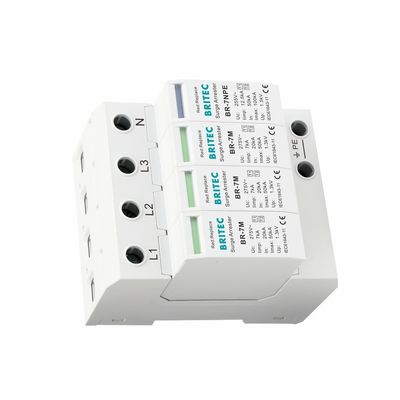

AC Surge Protector Protection AC SPD 3P+NPE 275V Iimp:7kA House Lightning Protective Low-Voltage Arrester Device
AC Surge Protector Protection AC SPD 3P+NPE 275V Iimp:7kA House Lightning Protective Low-Voltage Arrester Device AC Surge Protector Protection AC SPD 3P+NPE 275V Iimp:7kA House Lightning Protective Low-Voltage Arrester Device

Large Image :  AC Surge Protector Protection AC SPD 3P+NPE 275V Iimp:7kA House Lightning Protective Low-Voltage Arrester Device

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-7M-275 3+1
Payment & Shipping Terms:
Minimum Order Quantity: 100 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month

AC Surge Protector Protection AC SPD 3P+NPE 275V Iimp:7kA House Lightning Protective Low-Voltage Arrester Device

Description
Iimp: 7kA Nominal Discharge Current: 20kA
Max. Discharge Current: 50kA Material: Thermoplastic
Origin: Wenzhou, China Brand: BRITEC
Application: Electronic Devices Level Of Protection: B+C
Up:: 1.3kV Item Name:: Surge Protection Device
Highlight:

7kA lightning surge protector

,

275V lightning surge protector

AC Surge Protector Protection AC SPD Product Description:


The surge protector perfectly protects the electrical system from lightning strikes or overvoltages.
Number of poles: 3P+NPE.
It is suitable for providing safety protection for electronic equipment, instrumentation and communication lines.
Replaceable modules allow for easy maintenance and mount directly into the SPD base assembly, simplifying the replacement process.
This surge protector can quickly respond to lightning strikes and unload the voltage to protect your home appliances and your safety.


AC Surge Protector Protection AC SPD Characteristics:


 BR-7M-275 3+1
SPD classification according to EN 61643-11Type 1 + Type 2
SPD classification according to IEC 61643-11Class I + Class II
Max. continuous operating a.c. voltage (L-N / N-PE)     Uc275V/255V
Lightning impluse current (10/350us) (L-N / N-PE)      Iimp7kA/12.5kA
Nominal discharge current (8/20us) (L-N / N-PE)           In20kA/50kA
Max. discharge current (8/20us) (L-N / N-PE)            Imax50kA/100kA
Voltage protection level (L-N / N-PE)                             Up≤1.3kV/≤1.5kV
Response time (L-N / N-PE)                                           tA≤25ns
Operating temperature range                                         Tu-40℃—80℃
Operating state / fault indicationgreen / red
Cross-section area (Min.)4mm2
Cross-section area (Max.)35mm2
For mounting on35mm Din rail
Protection degreeIP20
Enclosure material                 Thermoplastic UL94-V0


Dimension:

AC Surge Protector Protection AC SPD 3P+NPE 275V Iimp:7kA House Lightning Protective Low-Voltage Arrester Device 0

AC Surge Protector Protection AC SPD Application:


The house surge protective low-voltage arrester device could be used to protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage

It’s mainly used in the area of high lightning risks to protect electric equipment from various surge impulses including direct lightning strike.

Factory:


AC Surge Protector Protection AC SPD 3P+NPE 275V Iimp:7kA House Lightning Protective Low-Voltage Arrester Device 1

Our certifications:

AC Surge Protector Protection AC SPD 3P+NPE 275V Iimp:7kA House Lightning Protective Low-Voltage Arrester Device 2

Logistics & payment:

AC Surge Protector Protection AC SPD 3P+NPE 275V Iimp:7kA House Lightning Protective Low-Voltage Arrester Device 3AC Surge Protector Protection AC SPD 3P+NPE 275V Iimp:7kA House Lightning Protective Low-Voltage Arrester Device 4

FAQ:

Q1: What kind of damage does lightning cause?
  A: Lightning strikes the ground more than 25 million times every year. It exceeds 100 million volts and causes catastrophic damage, no matter how it hits. Every year, tens of thousands of houses are burned down, millions of machines break down due to lightning strikes, resulting in losses of over billions of dollars and even deaths. If we use surge protectors, we can stay away from lightning and save lives and money.
Q2: Where is your factory located?
  A: Our factory is located in Yueqing city, Zhejiang Province, China.

Q3: Do surge protection devices attract lightning?
  A: Lightning protection does not attract or repel lightning. Just like water in a pipe, it provides you with a safe ground passage, away from your home, household and expensive electronic products.
Q4: How to agent yours products?
  A: You can purchase the samples for testing, and then you can contact the sales manager to answer more detailed agency questions for you.

Q5: I'm not familiar with surge protection equipment, so I need your technical service and the best quotation, which can help me get it done.
  A: No problem! Our R&D team is highly experienced and we have already helped many clients complete their projects. Therefore, please tell us your requirements, and then we will perfectly solve all your problems for you.
